CYLINDER HEAD

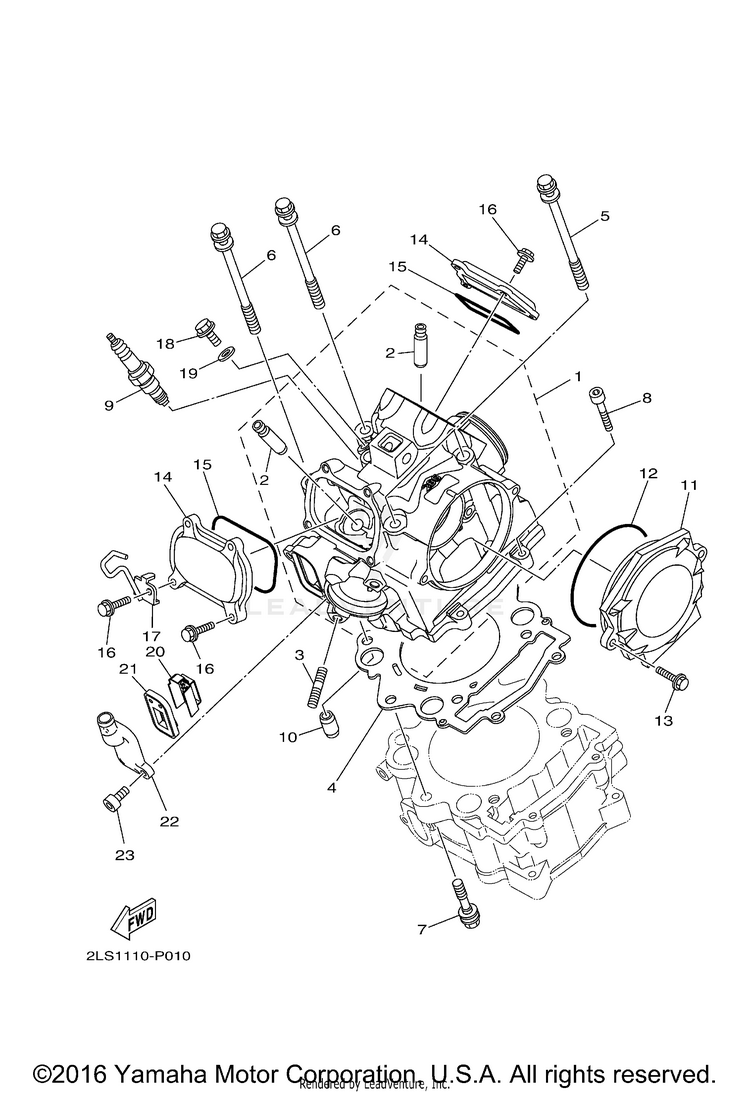

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12LS-11101-08-00

(replaces part #
2LS-11101-09-00)

CYLINDER HEAD ASSY$902.99$785.90Usually ships in 7-10 business days
24G0-11133-11-00GUIDE, VALVE 1$53.99$42.119 In-Stock
395612-08625-00BOLT, STUD$6.49$5.0610+ In-Stock
43B4-11181-00-00GASKET, CYLINDER HEAD 1$58.99$46.0110+ In-Stock
590109-09003-00BOLT$11.49$8.9610+ In-Stock
690109-09002-00BOLT$11.49$8.9610+ In-Stock
790109-09005-00BOLT$9.49$8.4010+ In-Stock
890110-06138-00

(replaces part #
91312-06030-00)

BOLT$6.49$5.0610+ In-Stock
9CR8-E0000-00-00PLUG, SPARK (NGK CR8E)$10.49$8.1810+ In-Stock
1093612-16254-00PIN, DOWEL$6.49$5.0610+ In-Stock
111S3-11185-10-00COVER, CYLINDER HEAD SIDE 3$73.99$57.71Usually ships in 7-10 business days
1293210-96601-00O-RING$13.49$10.52
1395022-06020-00BOLT, FLANGE$3.90$3.3510+ In-Stock
141S3-11186-00-00COVER, CYLINDER HEAD SIDE 2$33.99$27.87Usually ships in 7-10 business days
1593210-78544-00O-RING$13.49$10.5210+ In-Stock
1695022-06020-00BOLT, FLANGE$3.90$3.3510+ In-Stock
171S3-1131E-00-00HOLDER 1$17.99$14.033 In-Stock
1890401-08004-00BOLT, UNION$9.49$7.401 In-Stock
1990430-08119-00GASKET$7.49$5.848 In-Stock
202BG-1482K-00-00PLATE$15.49$12.70Usually ships in 7-10 business days
215JW-14890-00-00REED VALVE ASSY$71.99$56.15Usually ships in 7-10 business days
225JW-14889-00-00CAP, CASE$74.99$58.49Usually ships in 7-10 business days
2391314-06020-00

(replaces part #
90110-06175-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
