2016 Yamaha RAPTOR 90 Starter OEM Parts Diagram

Submodel RAPTOR 90 - YFM09RYXGL - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

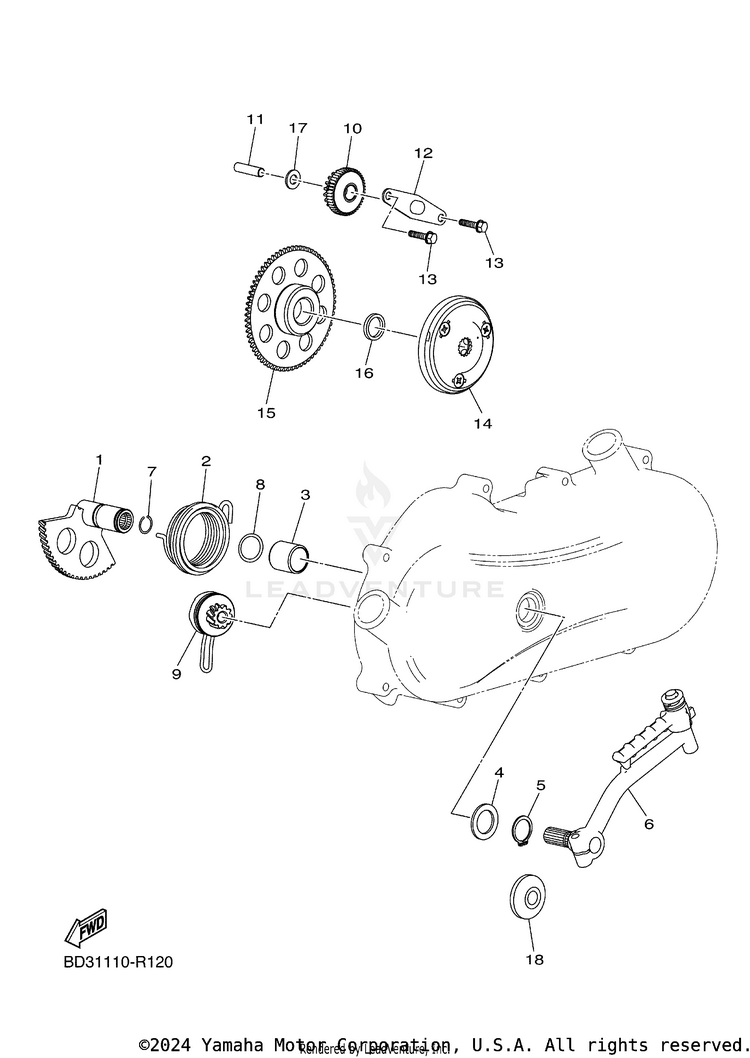

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BD3-E5600-00-00KICK SHAFT UNIT ASSY$163.99$129.56Usually ships in 7-10 business days
2BD3-E5665-10-00

(replaces part #
BD3-E5665-00-00)

SPRING, KICK$20.99$17.21Usually ships in 7-10 business days
3BD3-E5677-00-00BOSS, KICK AXLE$9.49$8.54Usually ships in 7-10 business days
4BD3-E2456-00-00WASHER$5.49$4.94Usually ships in 7-10 business days
5BD3-E662A-00-00CIRCLIP$2.85$2.451 In-Stock
6BD3-E5620-00-00KICK CRANK ASSY$103.99$81.11Usually ships in 7-10 business days
7BD3-E5597-00-00CIRCLIP 2$3.20$2.88Usually ships in 7-10 business days
8BD3-E3016-00-00O-RING$3.20$2.88Usually ships in 7-10 business days
9BD3-E5670-00-00KICK PINION ASSY 2$84.99$66.29Usually ships in 7-10 business days
10BD3-E5512-10-00

(replaces part #
BD3-E5512-00-00)

GEAR, IDLER 1$52.99$41.337 In-Stock
11BD3-E5521-00-00SHAFT 1$8.49$7.64Usually ships in 7-10 business days
12BD3-E5532-00-00PLATE, IDLE GEAR$13.49$11.06Usually ships in 7-10 business days
13BD3-G1228-00-00BOLT$3.40$3.06Usually ships in 7-10 business days
14BD3-E5524-10-00

(replaces part #
BD3-E5524-00-00)

WHEEL, STARTER$199.99$155.99Usually ships in 7-10 business days
15BD3-E5570-01-00

(replaces part #
BD3-E5570-00-00)

STARTER CLUTCH ASSY$195.99$152.87Usually ships in 7-10 business days
16BD3-E5613-00-00WASHER$4.50$4.05Usually ships in 7-10 business days
17BD3-E5615-00-00WASHER$2.50$2.25Usually ships in 7-10 business days
18BD3-E5681-00-00PLUG, BLIND$9.49$7.4010+ In-Stock
