2016 Yamaha TTR 110E Exhaust OEM Parts Diagram

Submodel TTR110E - TTR110EG - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

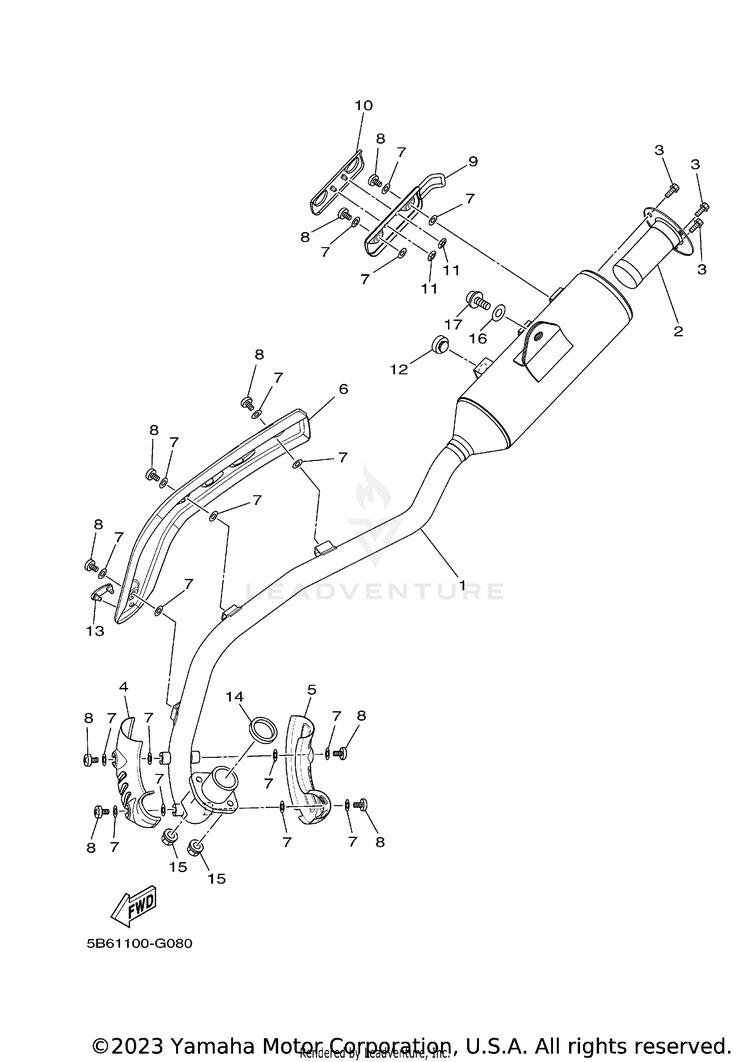

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15B6-14711-00-00MUFFLER 1$573.99$447.71Usually ships in 7-10 business days
25B6-14780-00-00SPARK ARRESTER ASSY$92.99$72.532 In-Stock
395027-06010-00BOLT, FLANGE$3.55$3.0510+ In-Stock
45B6-14718-00-00PROTECTOR, MUFFLER 1$91.99$71.75Usually ships in 7-10 business days
55B6-14728-00-00PROTECTOR, MUFFLER 2$96.99$75.65Usually ships in 7-10 business days
65B6-14738-00-00PROTECTOR, MUFFLER 3$136.99$106.85Usually ships in 7-10 business days
790201-05017-00WASHER, PLATE$9.49$7.4010+ In-Stock
898980-06008-00SCREW, BIND-$1.2210+ In-Stock
95HP-14758-00-00PROTECTOR, SILENCER$42.99$35.25Usually ships in 7-10 business days
105HP-1479J-00-00COVER 2$18.99$15.57Usually ships in 7-10 business days
1190183-04005-00

(replaces part #
90183-04047-00)

NUT, SPRING-$1.6710+ In-Stock
1222W-24181-00-00DAMPER, LOCATING 1$7.49$5.8410+ In-Stock
135B6-1479H-00-00COVER, 1$9.49$8.54Usually ships in 7-10 business days
143DM-14613-00-00GASKET, EXHAUST PIPE$8.49$6.6210+ In-Stock
1595707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
1690201-08326-00WASHER, PLATE$9.49$7.4010+ In-Stock
1790110-08097-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
