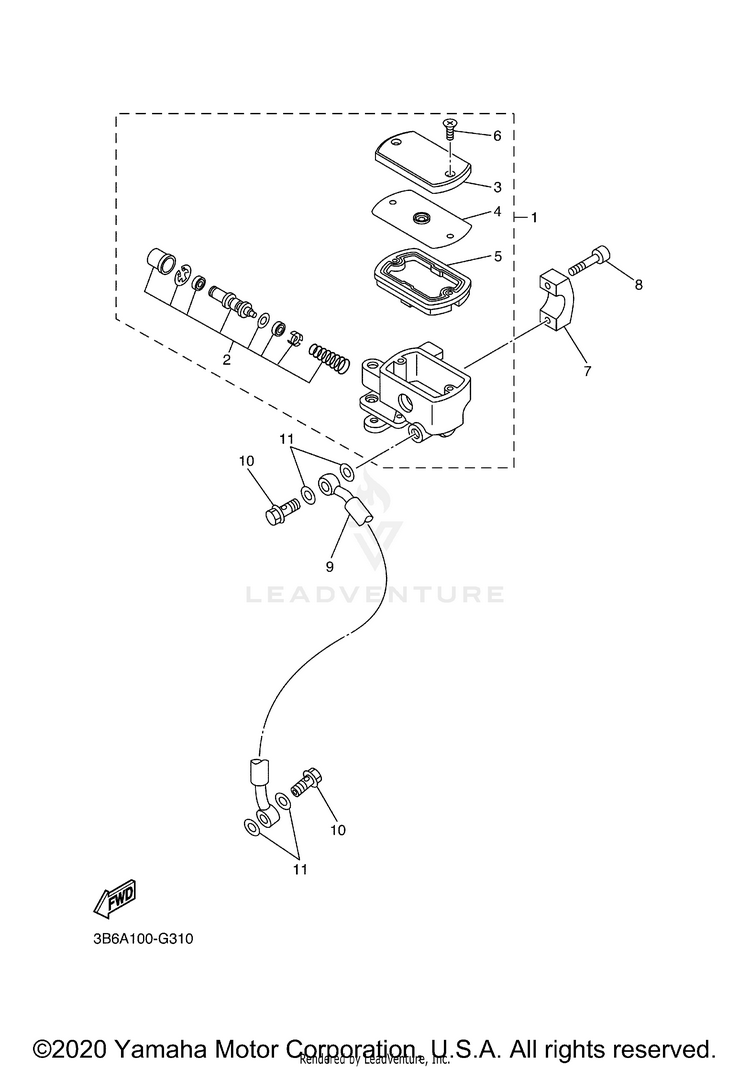

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-25870-01-00MASTER CYLINDER SUB ASSY$320.99$250.37Usually ships in 7-10 business days
22KR-25807-00-00CYLINDER KIT, MASTER$89.99$70.19Usually ships in 7-10 business days
33D8-25852-00-00CAP, RESERVOIR$48.99$40.17Usually ships in 7-10 business days
43D8-25855-00-00BUSH, DIAPHRAGM$5.99$5.39Usually ships in 7-10 business days
53D8-25854-00-00DIAPHRAGM, RESERVOIR$37.99$31.15Usually ships in 7-10 business days
63D8-2589H-00-00SCREW$7.49$6.74Usually ships in 7-10 business days
74TR-25867-10-00BRACKET, MASTER CYLINDER$43.99$36.07Usually ships in 7-10 business days
891314-06025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.407 In-Stock
95KP-25872-10-00HOSE, BRAKE 1$105.99$82.67Usually ships in 7-10 business days
1090401-10020-00BOLT, UNION$10.49$8.602 In-Stock
1190430-10005-00GASKET$9.49$7.4010+ In-Stock
