2016 Yamaha YXZ1000R Graphics OEM Parts Diagram

Submodel YXZ1000 EPS - YXZ10YPXGO - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GRAPHICS

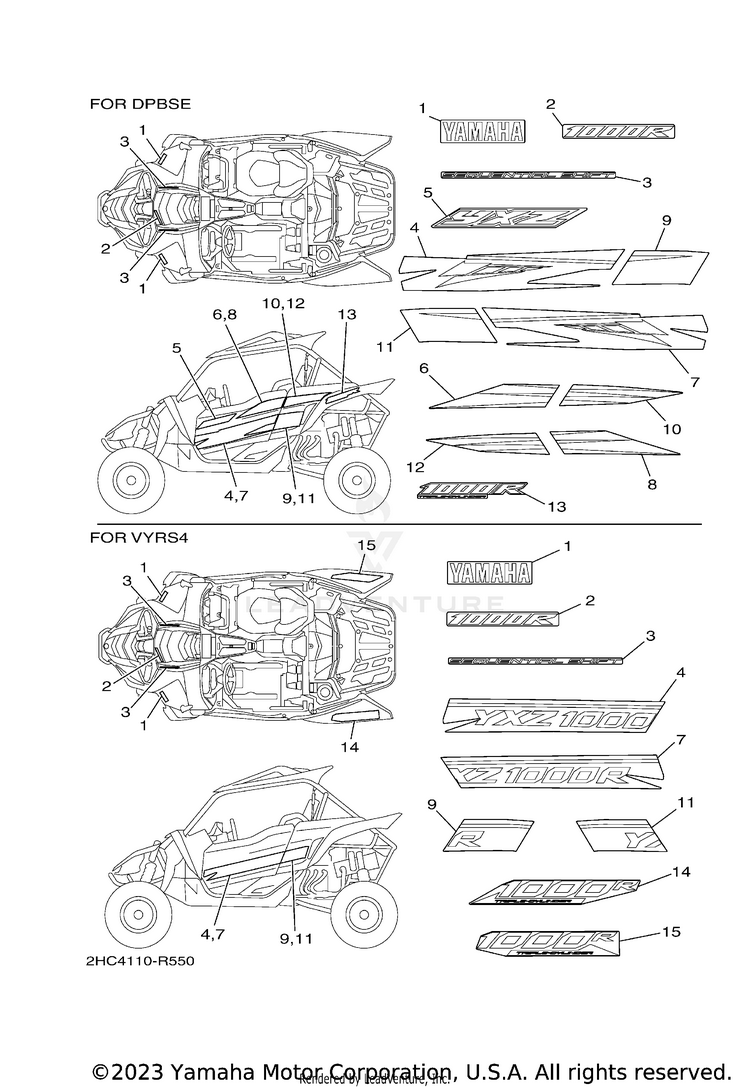

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12HC-F153E-00-00EMBLEM, YAMAHA$7.49$6.743 In-Stock
22HC-F1787-10-00EMBLEM 7 | UR FOR DPBSE$10.49$8.60Usually ships in 7-10 business days
22HC-F1787-20-00EMBLEM 7 | UR FOR VYRS4$6.99$5.452 In-Stock
32HC-F17D5-10-00EMBLEM 8$5.99$4.674 In-Stock
42HC-F1781-20-00EMBLEM 1 | UR FOR VYRS4$51.99$40.55Usually ships in 7-10 business days
42HC-F1781-10-00EMBLEM 1 | UR FOR DPBSE$64.99$50.69Usually ships in 7-10 business days
52HC-F1783-10-00EMBLEM 3 | UR FOR DPBSE$19.99$16.39Usually ships in 7-10 business days
62HC-F1785-00-00EMBLEM 5 | UR FOR DPBSE$25.99$21.31Usually ships in 7-10 business days
72HC-F1782-10-00EMBLEM 2 | UR FOR DPBSE$145.99$113.87Usually ships in 7-10 business days
72HC-F1782-20-00EMBLEM 2 | UR FOR VYRS4$47.99$39.35Usually ships in 7-10 business days
82HC-F1786-00-00EMBLEM 6 | UR FOR DPBSE$25.99$21.31Usually ships in 7-10 business days
92HC-F165G-10-00GRAPHIC, REAR (LH) | UR FOR DPBSE$24.99$20.49Usually ships in 7-10 business days
92HC-F165G-20-00GRAPHIC, REAR (LH) | UR FOR VYRS4$28.99$23.77Usually ships in 7-10 business days
102HC-F1788-00-00GRAPHIC | UR FOR DPBSE$22.99$18.85Usually ships in 7-10 business days
112HC-F165H-20-00GRAPHIC, REAR (RH) | UR FOR VYRS4$22.99$18.85Usually ships in 7-10 business days
112HC-F165H-10-00GRAPHIC, REAR (RH) | UR FOR DPBSE$24.99$20.49Usually ships in 7-10 business days
122HC-F1789-00-00GRAPHIC | UR FOR DPBSE$22.99$18.851 In-Stock
132HC-F163G-10-00EMBLEM 1 | UR FOR DPBSE$76.99$60.05Usually ships in 7-10 business days
142HC-F163G-20-00EMBLEM 1 | UR FOR VYRS4$76.99$60.05Usually ships in 7-10 business days
152HC-F163H-20-00EMBLEM 2 | UR FOR VYRS4$25.99$21.31Usually ships in 7-10 business days
