2016 Yamaha YZF-R1M Fender OEM Parts Diagram

Submodel YZFR1M - YZFR1MGC - 2016

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

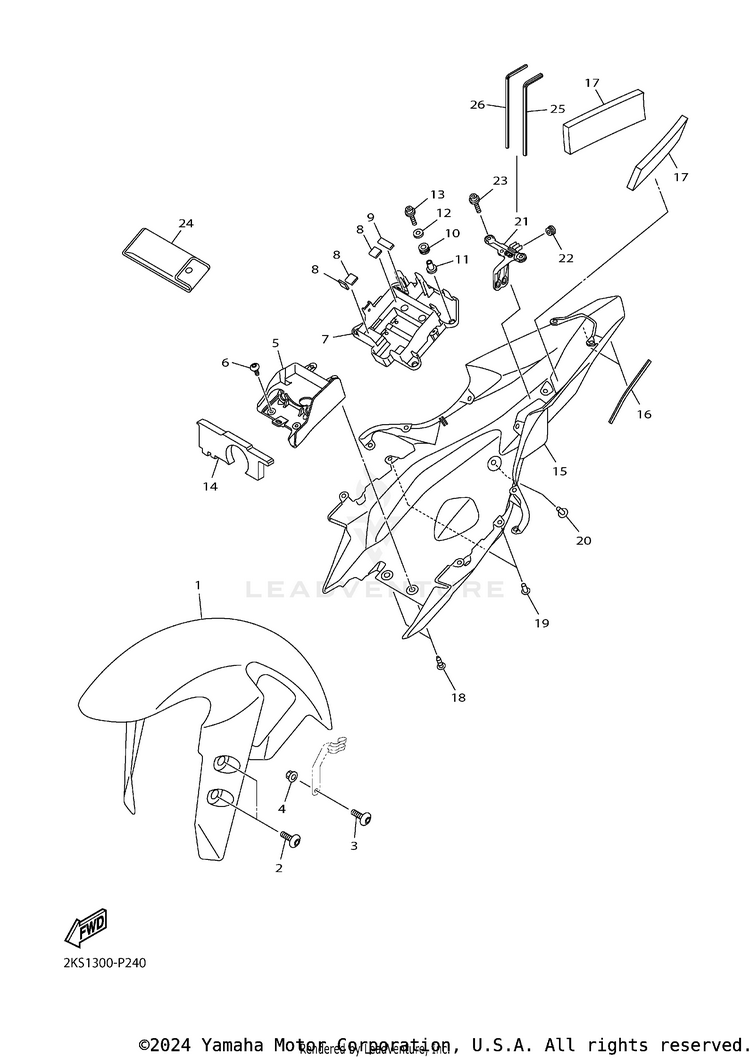

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12KS-21510-00-00FRONT FENDER COMP.$2,620.99$2,620.99Usually ships in 7-10 business days
290111-06043-00BOLT, HEXAGON SOCKET BUTTON$5.49$4.2810+ In-Stock
390111-06041-00BOLT, HEXAGON SOCKET BUTTON$9.49$8.543 In-Stock
495707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
52CR-8212B-00-00BOX, BATTERY 1$46.99$38.53Usually ships in 7-10 business days
690111-06116-00BOLT, HEX. SOCKET BUTTON$8.49$6.6210+ In-Stock
72CR-8212C-00-00BOX, BATTERY 2$26.99$22.13Usually ships in 7-10 business days
813S-21649-00-00DAMPER$7.49$6.74Usually ships in 7-10 business days
95HN-2139X-00-00DAMPER$1.35$1.222 In-Stock
1090480-13018-00GROMMET$9.49$7.404 In-Stock
1190387-073M2-00COLLAR$9.49$8.54Usually ships in 7-10 business days
1290201-06088-00WASHER, PLATE$9.49$7.407 In-Stock
1390110-06172-00BOLT, HEXAGON SOCKET HEAD$10.49$8.184 In-Stock
142CR-21638-00-00DAMPER 1$10.99$9.01Usually ships in 7-10 business days
152CR-21611-01-00

(replaces part #
2CR-21611-00-00)

FENDER, REAR$59.99$46.79Usually ships in 7-10 business days
163C5-2414H-00-00DAMPER, PLATE 1$5.99$5.39Usually ships in 7-10 business days
1790520-20003-00DAMPER, PLATE$9.49$8.54Usually ships in 7-10 business days
1890269-06008-00RIVET$9.49$7.4010+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$4.9910+ In-Stock
1990269-05005-00RIVET$3.65$3.28Usually ships in 7-10 business days
2090269-07076-00RIVET$8.49$6.6210+ In-Stock
212CR-2117E-01-00

(replaces part #
2CR-2117E-00-00)

BRACKET, TAILLIGHT$26.99$22.13Usually ships in 7-10 business days
2290480-10003-00GROMMET$9.49$8.54Usually ships in 7-10 business days
2390110-06163-00BOLT, HEXAGON SOCKET HEAD$11.49$8.9610+ In-Stock
242CR-28100-01-00

(replaces part #
2CR-28100-00-00)

TOOL KIT$62.99$49.13Usually ships in 7-10 business days
2523P-28164-00-00WRENCH, HEXAGON 8$3.65$3.28Usually ships in 7-10 business days
2614B-28164-00-00WRENCH, HEXAGON 8$4.75$4.28Usually ships in 7-10 business days
