2017 Yamaha FJ-09 Headlight OEM Parts Diagram

Submodel FJ09 CA - FJ09HCL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

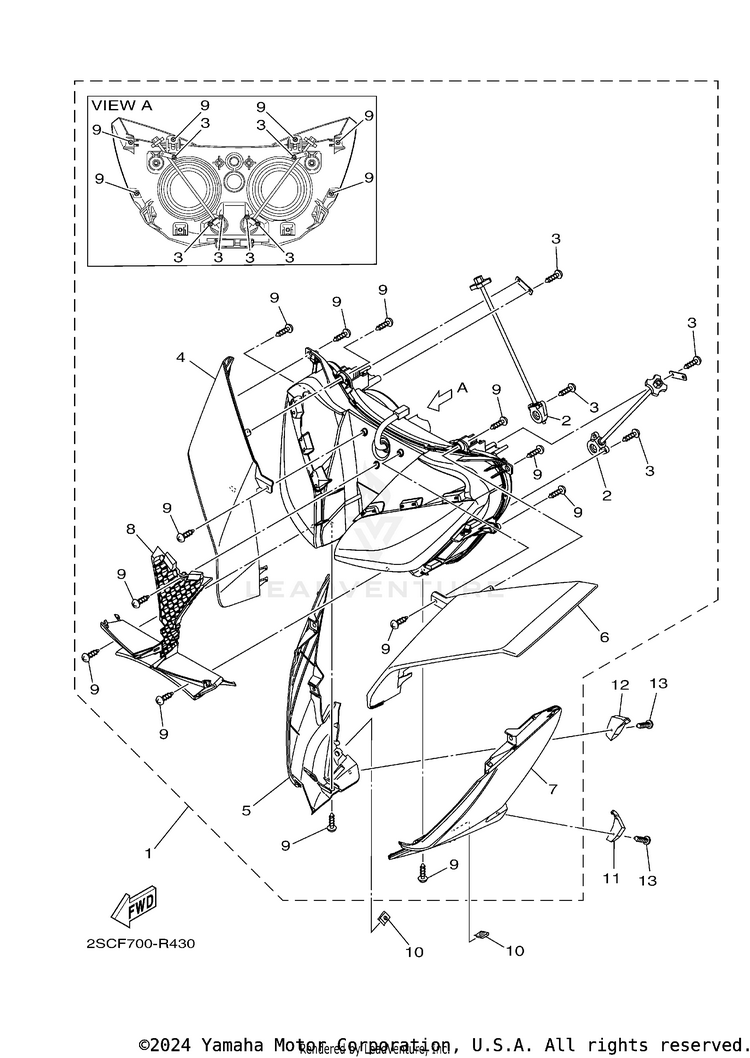

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12PP-84300-90-00HEADLIGHT ASSY | UR FOR DPBML$729.99$636.01Usually ships in 7-10 business days
12PP-84300-80-00HEADLIGHT ASSY | UR FOR BWP1$985.99$825.70Usually ships in 7-10 business days
22SC-8430M-00-00GEAR UNIT ASSY$72.99$56.93Usually ships in 7-10 business days
32SC-84526-00-00SCREW$1.30$1.17Usually ships in 7-10 business days
42SC-84196-90-00COVER, SOCKET | UR FOR DPBML$67.99$53.03Usually ships in 7-10 business days
42SC-84196-80-00COVER, SOCKET | UR FOR BWP1$67.99$53.03Usually ships in 7-10 business days
52SC-84544-00-00COVER B$25.99$21.31Usually ships in 7-10 business days
62SC-84396-90-00COVER | UR FOR DPBML$67.99$53.03Usually ships in 7-10 business days
62SC-84396-80-00COVER | UR FOR BWP1$67.99$53.03Usually ships in 7-10 business days
72SC-84797-00-00COVER D$25.99$21.31Usually ships in 7-10 business days
82SC-84144-00-00COVER E$32.99$27.05Usually ships in 7-10 business days
92SC-84526-00-00SCREW$1.30$1.17Usually ships in 7-10 business days
1090183-05042-00NUT, SPRING-$3.2010+ In-Stock
112PP-84366-00-00DAMPER, HEADLIGHT 1$14.49$11.88Usually ships in 7-10 business days
122PP-84367-00-00DAMPER, HEADLIGHT 2$11.49$9.42Usually ships in 7-10 business days
1390269-03002-00RIVET$1.75$1.58Usually ships in 7-10 business days
