CRANKCASE

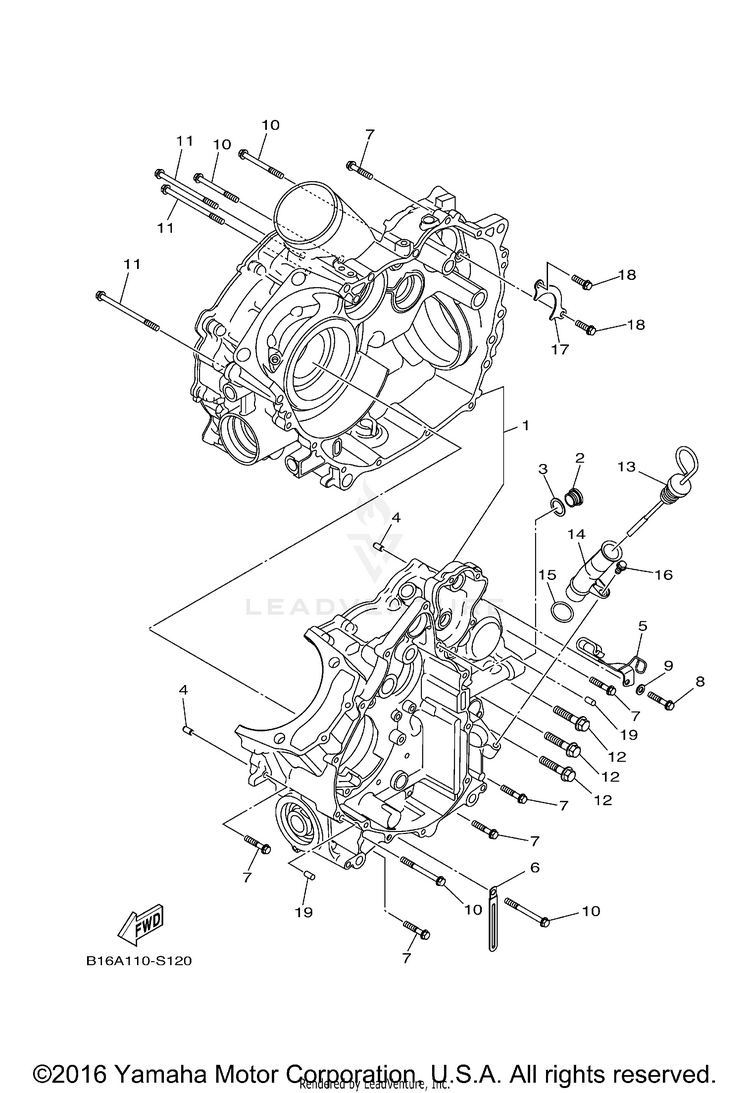

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12MB-E5100-01-00CRANKCASE ASSY$1,310.99$1,146.82Usually ships in 7-10 business days
22MB-E5167-00-00PLUG, BLIND 1$5.99$5.39Usually ships in 7-10 business days
32MB-E5175-00-00GASKET, BLIND PLUG 1$1.15$1.04Usually ships in 7-10 business days
42MB-E5184-00-00PIN, DOWEL$2.15$1.949 In-Stock
5B16-E546C-00-00HOLDER$52.99$41.33Usually ships in 7-10 business days
6B16-E5484-00-00CLAMP 2$3.85$3.46Usually ships in 7-10 business days
72MB-E5481-50-00BOLT 1$1.80$1.62Usually ships in 7-10 business days
8B16-E5481-00-00BOLT 1$1.55$1.40Usually ships in 7-10 business days
9B16-E5158-00-00WASHER$2.15$1.94Usually ships in 7-10 business days
102MB-E5481-C0-00BOLT 1$2.75$2.48Usually ships in 7-10 business days
112MB-E5481-90-00BOLT 1$5.49$4.94Usually ships in 7-10 business days
122MB-E2623-00-00BOLT$3.90$3.51Usually ships in 7-10 business days
133B4-15362-01-00

(replaces part #
B16-E5362-00-00)

PLUG, OIL LEVEL$28.99$22.612 In-Stock
143B4-15112-02-00

(replaces part #
B16-E5112-00-00)

PIPE, OIL$41.99$34.43Usually ships in 7-10 business days
152MB-E2439-00-00O-RING$5.49$4.282 In-Stock
162MB-E5481-60-00BOLT 1$1.20$1.08Usually ships in 7-10 business days
172MB-E5388-00-00PLATE, BEARING COVER$5.49$4.94Usually ships in 7-10 business days
182MB-E5481-10-00BOLT 1$1.20$1.08Usually ships in 7-10 business days
192MB-E5184-00-00PIN, DOWEL$2.15$1.949 In-Stock
