2017 Yamaha Stryker Oil Pump OEM Parts Diagram

Submodel STRYKER - XVS13CHCB - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

OIL PUMP

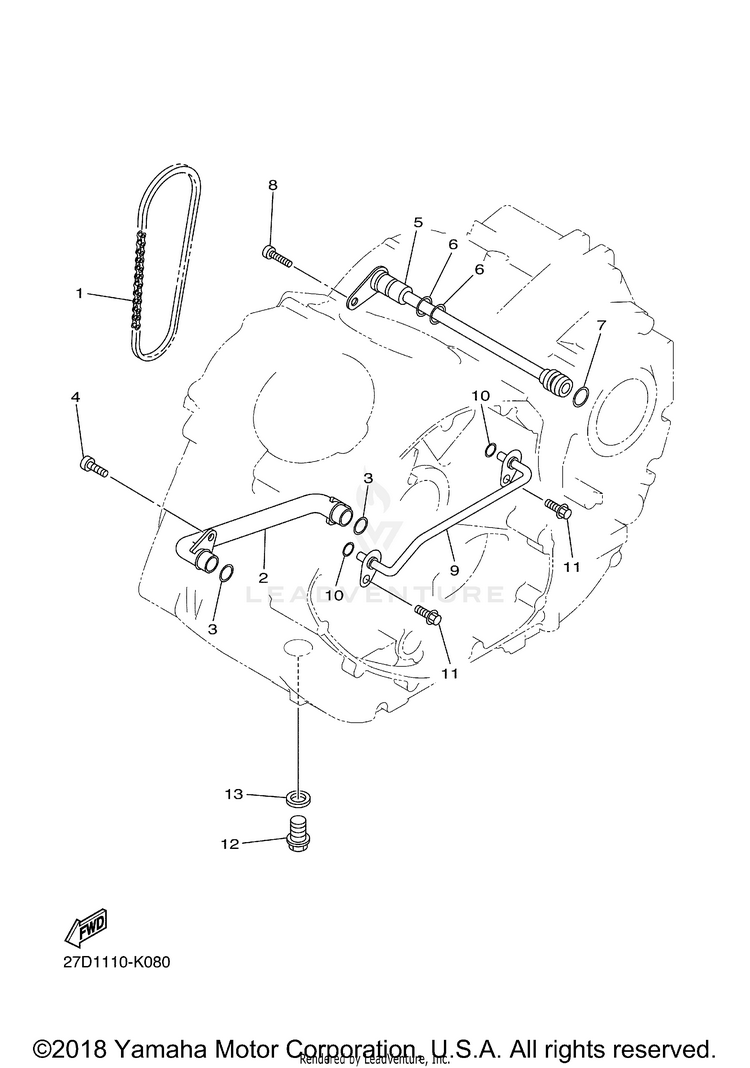

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
194580-25062-00CHAIN (DID25 62L)$12.49$10.48Usually ships in 7-10 business days
23D8-13416-00-00PIPE, OIL 1$48.99$40.17Usually ships in 7-10 business days
393210-14003-00O-RING$9.49$7.4010+ In-Stock
491317-06016-00

(replaces part #
90110-06161-00)

BOLT (4MY)-$1.4210+ In-Stock
53D8-13171-00-00PIPE, DELIVERY 2$77.99$60.83Usually ships in 7-10 business days
693210-09350-00

(replaces part #
93210-09165-00)

O-RING$7.49$5.8410+ In-Stock
793210-07540-00

(replaces part #
93210-06564-00)

O-RING$7.49$5.8410+ In-Stock
891317-06016-00

(replaces part #
90110-06161-00)

BOLT (4MY)-$1.4210+ In-Stock
93D8-13181-00-00PIPE, DELIVERY 3$25.99$21.31Usually ships in 7-10 business days
1093210-06667-00O-RING$8.49$6.626 In-Stock
1195022-06012-00

(replaces part #
90105-06078-00)

BOLT, FLANGE$3.55$3.0510+ In-Stock
1290340-14132-00PLUG, STRAIGHT SCREW$3.15$2.7110+ In-Stock
13214-11198-01-00GASKET$3.17$2.8910+ In-Stock
