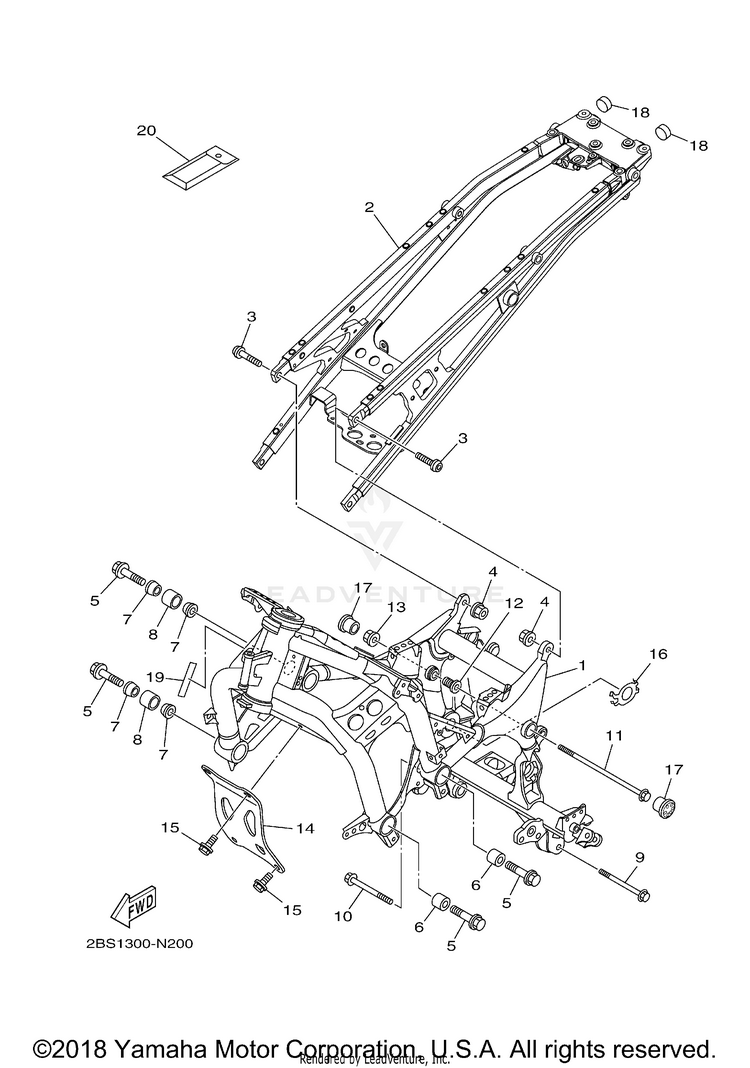

2017 Yamaha Super Tenere 1200 Frame OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	23P-21110-01-00 (replaces part # 23P-21110-00-00)	FRAME COMP.	$2,317.99	$2,027.98	Usually ships in 7-10 business days
2	2BS-21190-10-00	REAR FRAME COMP.	$812.99	$680.18	Usually ships in 7-10 business days
3	90149-10003-00	SCREW	$10.49	$8.60	Usually ships in 7-10 business days
4	95602-10200-00	NUT, S/L FLANGE	$2.70	$2.32	10+ In-Stock
5	90105-12077-00	BOLT, FLANGE	$5.49	$4.94	Usually ships in 7-10 business days
6	23P-21116-00-00	COLLAR	$20.99	$17.21	Usually ships in 7-10 business days
7	23P-21414-00-00	BOSS, ENGINE MOUNT	$18.49	$15.16	Usually ships in 7-10 business days
8	23P-21424-00-00	BOSS, ENGINE MOUNT	$31.99	$26.23	Usually ships in 7-10 business days
9	90105-10075-00	BOLT, FLANGE	$12.49	$10.24	Usually ships in 7-10 business days
10	90105-10175-00	BOLT, FLANGE	$11.49	$8.96	6 In-Stock
11	90105-10380-00	BOLT, FLANGE	$16.99	$13.93	Usually ships in 7-10 business days
12	23P-21495-00-00	BOLT, ENGINE ADJUSTING	$19.49	$15.98	Usually ships in 7-10 business days
13	90179-10028-00	NUT	$8.49	$7.64	Usually ships in 7-10 business days
14	2BS-21318-00-00	STAY, ENGINE 4	$71.99	$56.15	Usually ships in 7-10 business days
15	95812-12025-00	BOLT, FLANGE	$10.49	$8.18	9 In-Stock
16	23P-2191B-00-00	PLATE 1	$7.49	$6.74	Usually ships in 7-10 business days
17	2BS-2111A-00-00	CAP, MAIN PIPE	$4.90	$4.41	Usually ships in 7-10 business days
18	3YX-2143A-00-00	CAP	$3.60	$3.24	Usually ships in 7-10 business days
19	3HA-24141-00-00	PROTECTOR, FUEL TANK	$15.49	$12.70	Usually ships in 7-10 business days
20	23P-28100-00-00	TOOL KIT	$57.99	$45.23	Usually ships in 7-10 business days
