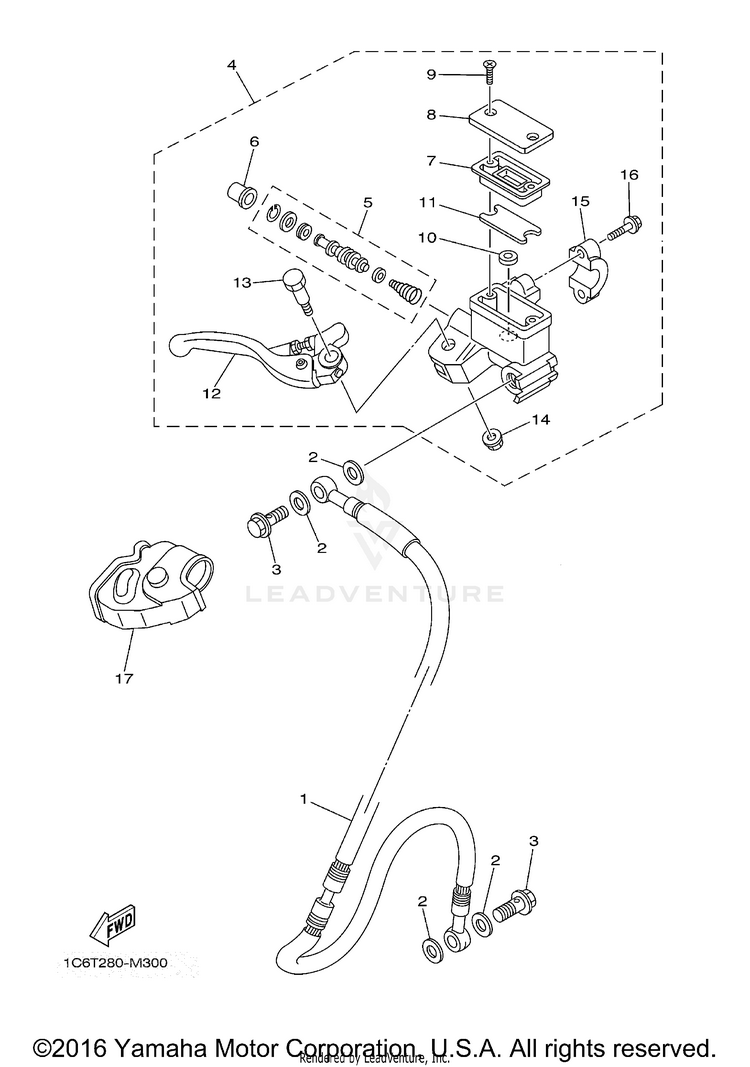

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11C6-25872-00-00HOSE, BRAKE 1$263.99$205.912 In-Stock
290201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
390401-10172-00

(replaces part #
90401-10814-00)

BOLT, UNION$6.49$5.0610+ In-Stock
41C6-F583T-00-00MASTER CYLINDER ASSY$310.99$259.19Usually ships in 7-10 business days
55NY-W0041-01-00CYLINDER KIT, MASTER$60.99$47.579 In-Stock
AFTERMARKET ALTERNATIVE
$29.80$28.3110+ In-Stock
65NY-25868-00-00BOOT, MASTER CYLINDER$9.49$7.404 In-Stock
75XE-25854-00-00DIAPHRAGM, RESERVOIR$16.49$12.8610+ In-Stock
82VN-25852-02-00CAP, RESERVOIR$17.99$14.03
998707-04012-00

(replaces part #
9870M-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
105HH-F5715-00-00SEPARATOR ASSY$5.49$4.94Usually ships in 7-10 business days
115XE-25853-00-00

(replaces part #
1C6-F5853-00-00)

FLOAT, RESERVOIR$8.49$6.624 In-Stock
121C6-H3922-00-00LEVER 2$19.99$16.39Usually ships in 7-10 business days
1390109-06577-00BOLT$6.49$5.0610+ In-Stock
1495707-06500-00

(replaces part #
95706-06500-00)

NUT, FLANGE$1.00$0.9910+ In-Stock
155HH-F5867-00-00BRACKET, MASTER CYLINDER$6.49$5.84Usually ships in 7-10 business days
165HH-F6332-00-00BOLT, FLANGE$1.70$1.532 In-Stock
175NY-26372-00-00

(replaces part #
1C6-F6372-00-00)

COVER, HANDLE LEVER 1$22.99$17.9310+ In-Stock
