2017 Yamaha TW200 Front Brake Caliper OEM Parts Diagram

Submodel TW200 - TW200H1C - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

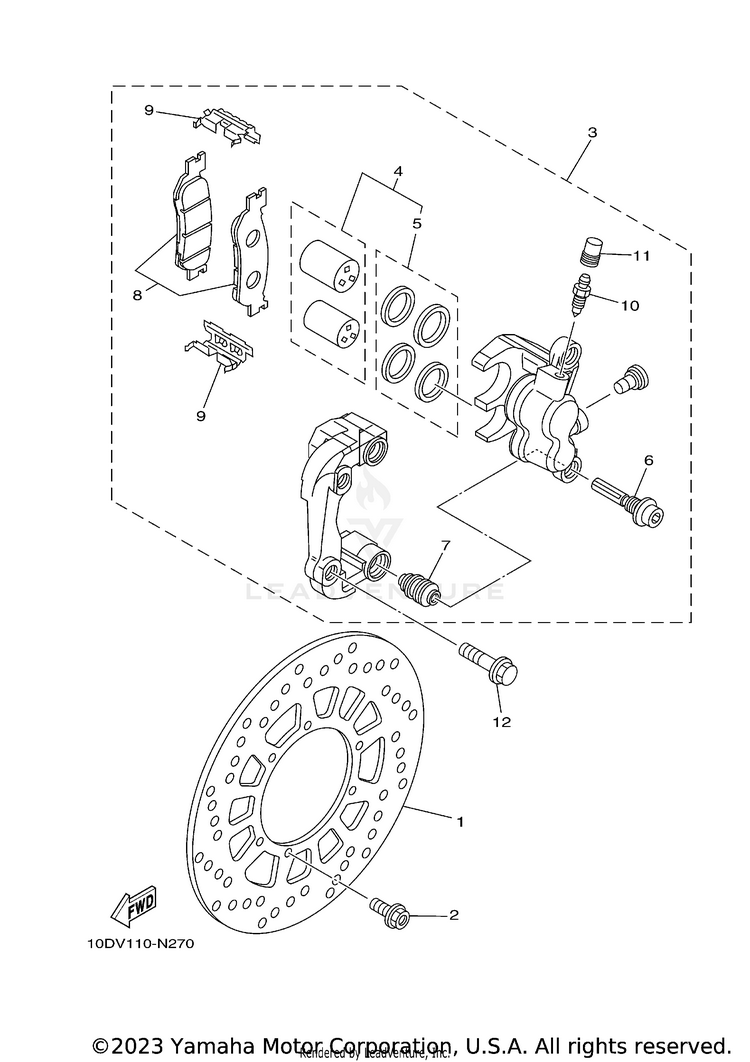

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XT-2582T-00-00DISC, BRAKE (LEFT)$100.99$78.774 In-Stock
290105-06109-00

(replaces part #
90109-065G4-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
35LB-2580T-10-00CALIPER ASSY (LEFT)$413.99$342.30Usually ships in 7-10 business days
44JG-25802-00-00PISTON ASSY, CALIPER$74.99$58.49Usually ships in 7-10 business days
54JG-25803-00-00CALIPER SEAL KIT$21.99$17.154 In-Stock
65JW-25914-10-00PIN, SLIDE$24.99$19.495 In-Stock
74TT-25937-00-00BOOT 2$17.99$14.75Usually ships in 7-10 business days
83C5-25805-00-00BRAKE PAD KIT$50.99$39.774 In-Stock
AFTERMARKET ALTERNATIVE
$25.95$25.1610+ In-Stock
94TT-25919-00-00SUPPORT, PAD$12.99$10.135 In-Stock
1047X-25824-01-00SCREW, BLEED$15.49$12.70Usually ships in 7-10 business days
111D7-25825-00-00CAP$8.49$6.622 In-Stock
1290105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
