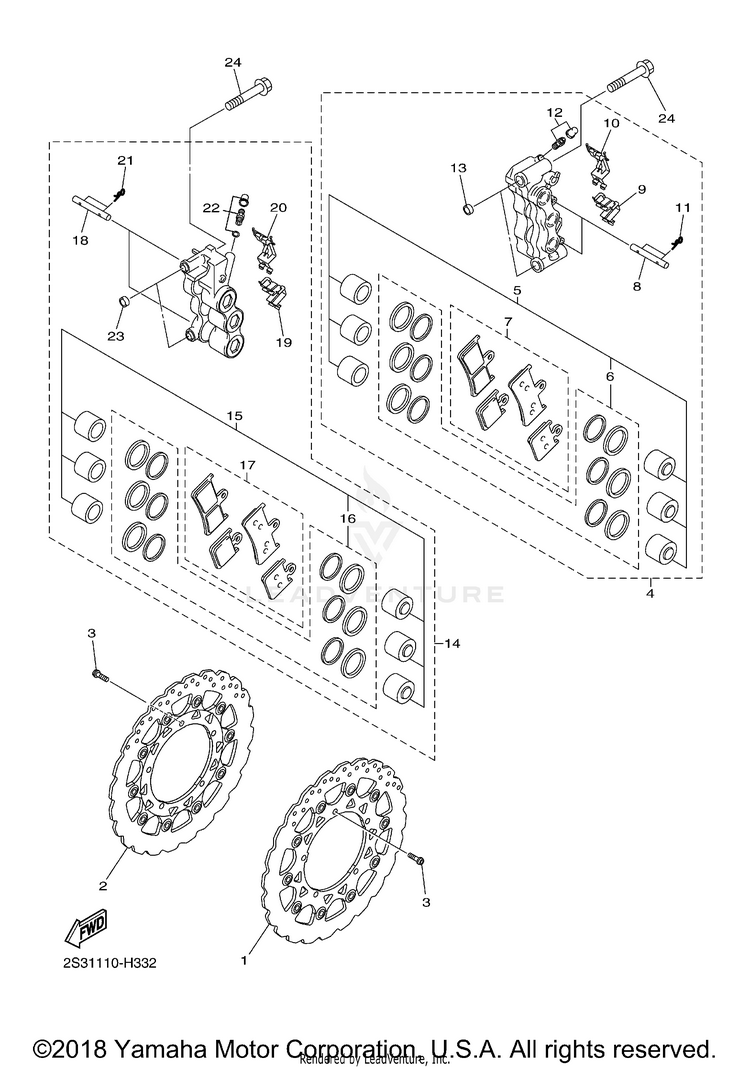

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-2581T-00-00DISC BRAKE ASSY$395.99$308.87Usually ships in 7-10 business days
22S3-2581U-00-00DISC BRAKE ASSY (RIGHT)$411.99$321.35Usually ships in 7-10 business days
390149-06133-00

(replaces part #
90149-06132-00)

SCREW$8.49$7.64Usually ships in 7-10 business days
44C8-2580T-10-00CALIPER ASSY (LEFT)$669.99$560.61Usually ships in 7-10 business days
54C8-25802-00-00PISTON ASSY, CALIPER$221.99$173.15Usually ships in 7-10 business days
64C8-25803-00-00CALIPER SEAL KIT$53.99$42.11Usually ships in 7-10 business days
74C8-25805-00-00BRAKE PAD KIT$59.99$50.48Usually ships in 7-10 business days
84SV-25924-00-00PIN, PAD$46.99$36.656 In-Stock
94C8-25919-00-00SUPPORT, PAD$8.49$7.64Usually ships in 7-10 business days
102S3-25919-10-00SUPPORT, PAD$30.99$25.41Usually ships in 7-10 business days
113GM-25925-00-00CLIP$12.99$10.136 In-Stock
121J3-W0048-00-00BLEED SCREW KIT$33.99$27.87Usually ships in 7-10 business days
135VY-2583B-00-00PIN, KNOCK$18.99$15.57Usually ships in 7-10 business days
142S3-2580U-00-00CALIPER ASSY (RIGHT)$525.99$458.50Usually ships in 7-10 business days
154C8-25802-00-00

(replaces part #
4C8-W0057-00-00)

PISTON ASSY, CALIPER$221.99$173.15Usually ships in 7-10 business days
164C8-25803-00-00

(replaces part #
4C8-W0047-00-00)

CALIPER SEAL KIT$53.99$42.11Usually ships in 7-10 business days
174C8-25805-00-00

(replaces part #
4C8-W0045-00-00)

BRAKE PAD KIT$59.99$50.48Usually ships in 7-10 business days
184SV-25924-00-00PIN, PAD$46.99$36.656 In-Stock
194C8-25919-00-00SUPPORT, PAD$8.49$7.64Usually ships in 7-10 business days
202S3-25919-10-00SUPPORT, PAD$30.99$25.41Usually ships in 7-10 business days
213GM-25925-00-00CLIP$12.99$10.136 In-Stock
225VS-W0048-00-00BLEED SCREW KIT$51.99$40.55Usually ships in 7-10 business days
235VY-2583B-00-00PIN, KNOCK$18.99$15.57Usually ships in 7-10 business days
2490105-10397-00BOLT, FLANGE$13.49$11.06Usually ships in 7-10 business days
