2017 Yamaha V-Star Tourer XVS1300CT Crankcase OEM Parts Diagram

Submodel V STAR TOURER - XVS13CTHCL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

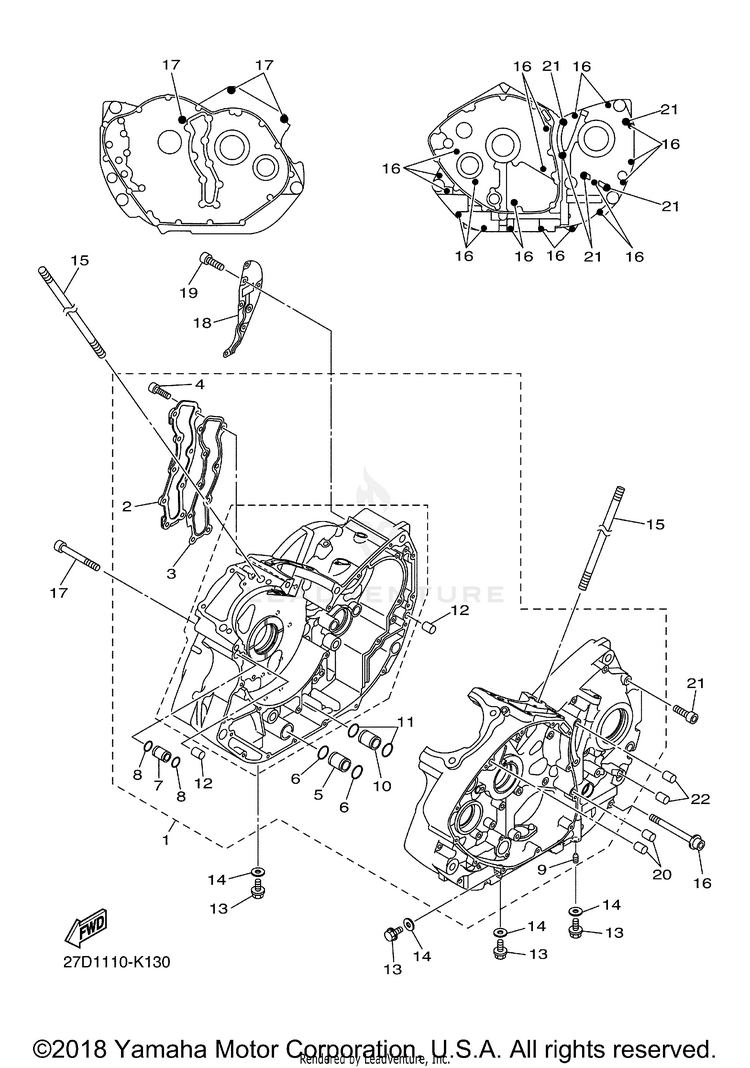

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-15100-28-00CRANKCASE ASSY$1,688.99$1,477.71Usually ships in 7-10 business days
23D8-15431-00-00COVER, CRANKCASE 3$98.99$77.21Usually ships in 7-10 business days
33D8-15462-00-00GASKET, CRANKCASE COVER 3$22.99$18.85Usually ships in 7-10 business days
491314-06020-00

(replaces part #
90110-06174-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
53D8-15154-00-00NOZZLE ASSY., 2$21.99$18.03Usually ships in 7-10 business days
693210-18319-00O-RING$10.49$8.60Usually ships in 7-10 business days
71D7-15138-00-00NOZZLE 1$6.99$6.29Usually ships in 7-10 business days
893210-10001-00

(replaces part #
93210-10003-00)

O-RING$2.35$2.12Usually ships in 7-10 business days
92H7-15138-00-00NOZZLE 1$4.85$4.36Usually ships in 7-10 business days
103D8-15155-00-00NOZZLE 3$24.99$20.49Usually ships in 7-10 business days
1193210-22298-00

(replaces part #
93210-22164-00)

O-RING$8.49$6.6210+ In-Stock
1299530-10116-00PIN, DOWEL$4.40$3.7810+ In-Stock
1395022-10016-00BOLT, FLANGE$9.49$7.4010+ In-Stock
1490430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
1590116-12011-00BOLT, STUD$16.49$13.52Usually ships in 7-10 business days
1690105-06144-00BOLT, FLANGE$2.60$2.34Usually ships in 7-10 business days
1791314-10110-00BOLT, HEXAGON SOCKET HEAD$8.99$8.09Usually ships in 7-10 business days
183D8-15368-00-00SEPERATOR, OIL$46.99$38.53Usually ships in 7-10 business days
1991317-06016-00

(replaces part #
90110-06161-00)

BOLT (4MY)-$1.4210+ In-Stock
2099530-08012-00PIN, DOWEL$6.99$5.4510+ In-Stock
2191317-08035-00

(replaces part #
91312-08035-00)

BOLT$8.49$7.64Usually ships in 7-10 business days
2299590-10114-00PIN, DOWEL$5.99$4.6710+ In-Stock
