CRANKSHAFT PISTON

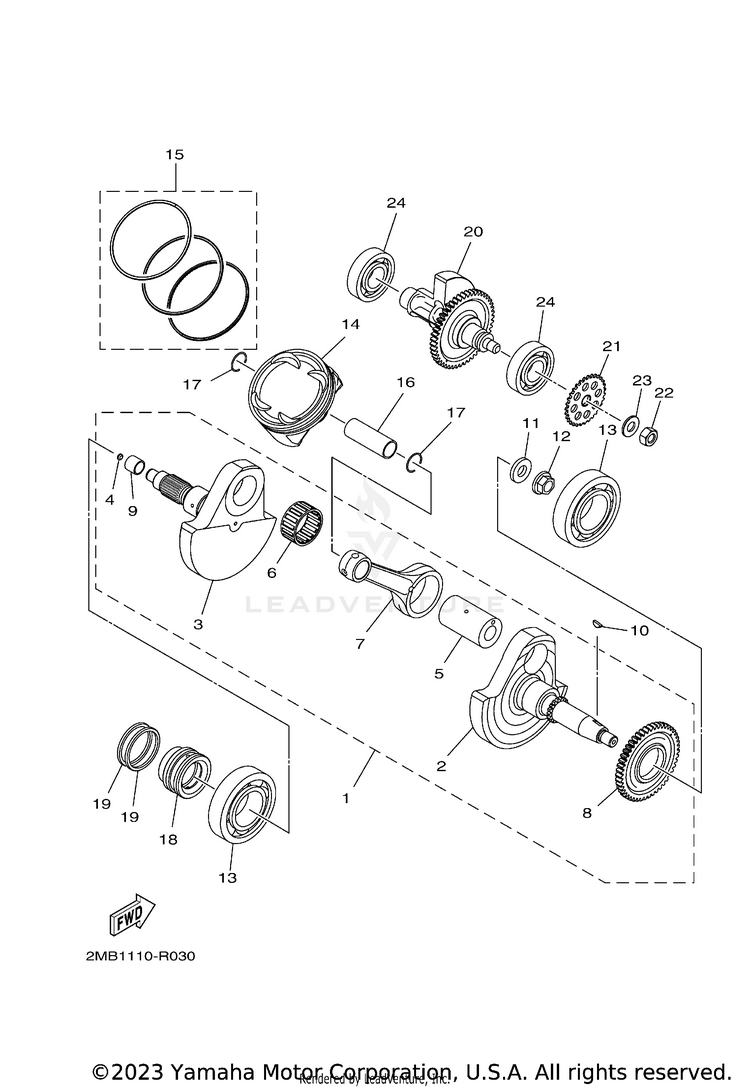

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12MB-E1400-00-00CRANKSHAFT ASSY$943.99$736.316 In-Stock
22MB-E1412-10-00CRANK 1$515.99$417.08Usually ships in 7-10 business days
32MB-E1422-10-00CRANK 2$469.99$390.73Usually ships in 7-10 business days
42MB-E1446-00-00PLUG, CRANK$2.45$2.20Usually ships in 7-10 business days
52MB-E1681-10-00PIN, CRANK 1$123.99$96.71Usually ships in 7-10 business days
62MB-E1415-00-00BEARING ASSY 1$118.99$97.15Usually ships in 7-10 business days
72MB-E1651-10-00ROD, CONNECTING$201.99$157.55Usually ships in 7-10 business days
82MB-E1536-00-00GEAR, DRIVE$237.99$185.63Usually ships in 7-10 business days
92MB-G6122-00-00RACE, INNER$31.99$26.23Usually ships in 7-10 business days
102MB-E1545-00-00KEY, WOODRUFF$2.90$2.493 In-Stock
112MB-E1557-00-00WASHER 1$11.99$10.02Usually ships in 7-10 business days
122MB-E1555-00-00NUT, CRANKSHAFT 1$4.20$3.78Usually ships in 7-10 business days
132MB-E1425-00-00BEARING ASSY 2$118.99$92.8110+ In-Stock
142MB-E1636-00-00PISTON (0.50MM O/S) | AP$152.99$119.331 In-Stock
142MB-E1631-00-00PISTON (STD)$152.99$119.332 In-Stock
142MB-E1635-00-00PISTON (0.25MM O/S) | AP$153.99$120.111 In-Stock
152MB-E1604-10-00

(replaces part #
2MB-E1604-00-00)

PISTON RING SET (0.2 | AP$96.99$75.65Usually ships in 7-10 business days
152MB-E1603-10-00

(replaces part #
2MB-E1603-00-00)

PISTON RING SET (S$95.99$74.875 In-Stock
152MB-E1605-10-00

(replaces part #
2MB-E1605-00-00)

PISTON RING SET (0.5 | AP$95.99$74.873 In-Stock
162MB-E1633-10-00

(replaces part #
2MB-E1633-00-00)

PIN, PISTON$64.99$50.691 In-Stock
172MB-E1634-00-00CLIP, PISTON PIN-$1.216 In-Stock
182MB-E6181-00-00SPACER 1$123.99$96.71Usually ships in 7-10 business days
193B4-11447-00-00

(replaces part #
2MB-E1447-00-00)

SEAL, CRANK$35.99$29.518 In-Stock
202MB-E1500-00-00BALANCER ASSY$317.99$258.19Usually ships in 7-10 business days
212MB-E3354-00-00SPROCKET, DRIVE$32.99$27.05Usually ships in 7-10 business days
222MB-E1459-00-00NUT, SPECIAL$1.70$1.464 In-Stock
232MB-E1483-00-00WASHER, WEIGHT 1$1.95$1.76Usually ships in 7-10 business days
242MB-E1436-00-00BEARING ASSY 3$41.99$34.43Usually ships in 7-10 business days
