2017 Yamaha Wolverine R-Spec 4x4 Electrical 2 OEM Parts Diagram

Submodel WOLVERINE R-SPEC EPS - YXE70WPXHG - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 2

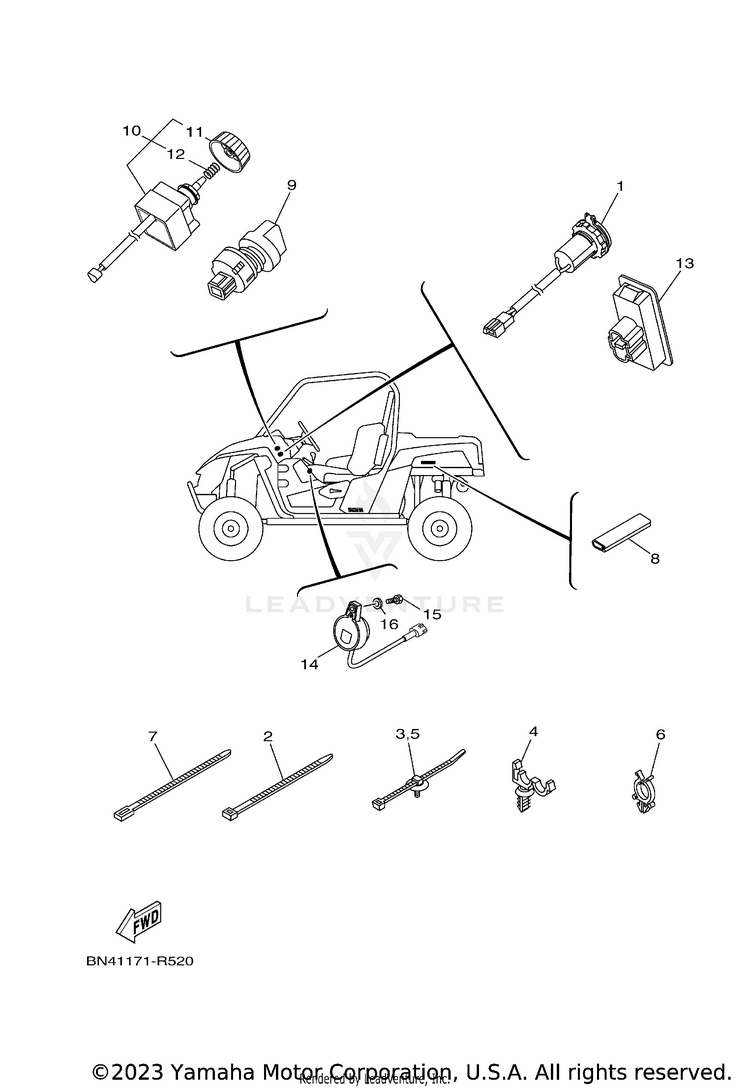

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11HP-H254B-10-00TERMINAL COMP.$20.99$16.373 In-Stock
290464-48800-00CLAMP$4.90$4.41Not Shipping
35B4-F1338-00-00CLAMP$3.60$3.1010+ In-Stock
490464-12830-00CLAMP | d: 12mm$1.60$1.3810+ In-Stock
51NS-F1338-00-00CLAMP$3.60$3.104 In-Stock
690464-25826-00CLAMP$3.05$2.743 In-Stock
790464-29179-00CLAMP$2.50$2.25Usually ships in 7-10 business days
84XY-28347-00-00MOLE 3$8.49$7.64Usually ships in 7-10 business days
95UG-H2526-00-00SWITCH, LAMP$58.99$46.012 In-Stock
101XD-87280-01-00

(replaces part #
1XD-87280-00-00)

SWITCH, SELECT$106.99$83.45Usually ships in 7-10 business days
111XD-87285-00-00KNOB, SELECT SWITCH$14.49$11.88Usually ships in 7-10 business days
121XD-87288-00-00SPRING$1.90$1.71Usually ships in 7-10 business days
131XD-H3530-00-00PILOT LIGHT ASSY$32.99$27.05Usually ships in 7-10 business days
142MB-83383-00-00BUZZER$74.99$58.49Usually ships in 7-10 business days
1597027-05020-00

(replaces part #
97002-05020-00)

BOLT$3.55$3.0510+ In-Stock
1692990-05600-00

(replaces part #
92902-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
