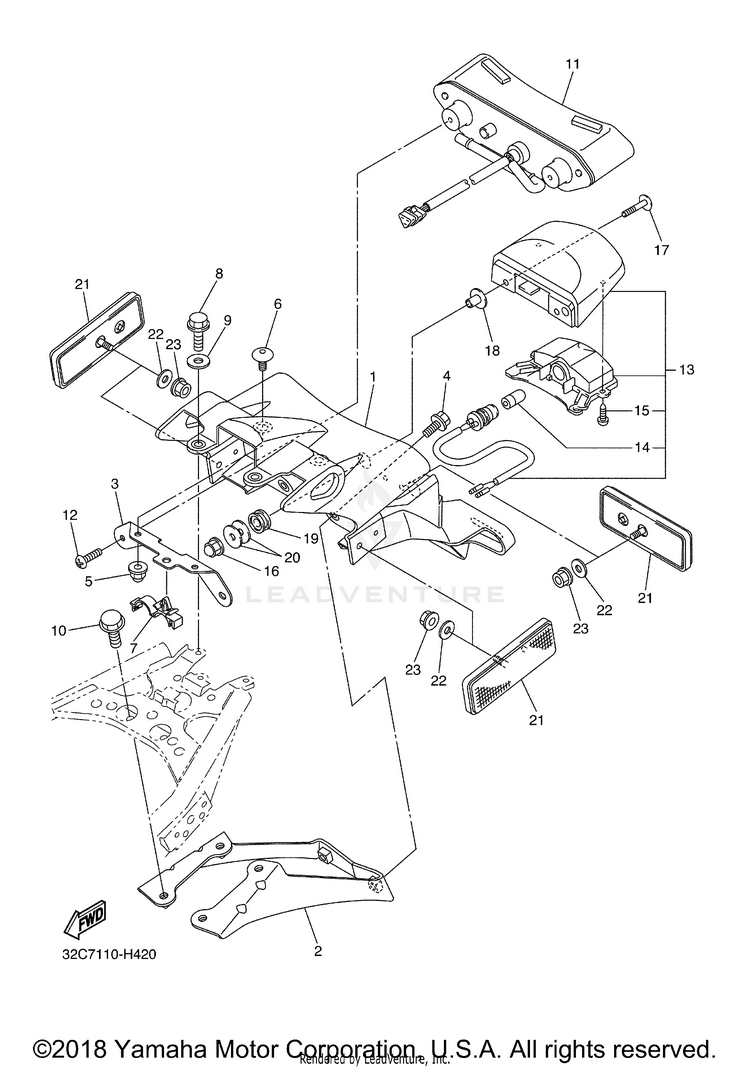

2017 Yamaha WR250R Taillight OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	32C-21629-01-00	GUARD, MUD	$104.99	$81.89	Usually ships in 7-10 business days
2	32C-21688-00-00	BRACKET, REAR STAY	$269.99	$210.59	Usually ships in 7-10 business days
3	32C-2164G-00-00	STAY 2	$37.99	$31.15	Usually ships in 7-10 business days
4	90119-06242-00 (replaces part # 90119-06241-00)	BOLT, WITH WASHER	$8.49	$6.62	10+ In-Stock
5	90176-05003-00	NUT, CROWN	$3.90	$3.51	Usually ships in 7-10 business days
6	90111-05011-00	BOLT, HEX. SOCKET BUTTON	$6.49	$5.06	5 In-Stock
7	90464-16006-00	CLAMP	$10.49	$8.18	2 In-Stock
8	90105-05025-00 (replaces part # 90105-05024-00)	BOLT, FLANGE	$1.15	$1.04	1 In-Stock
9	90201-05556-00 (replaces part # 90201-054K4-00)	WASHER, PLATE	$10.49	$8.60	3 In-Stock
10	95817-06012-00 (replaces part # 90105-06181-00)	BOLT, FLANGE	$1.95	$1.77	10+ In-Stock
11	32C-84710-01-00	TAILLIGHT UNIT ASSY	$163.99	$127.91	Usually ships in 7-10 business days
12	97707-50014-00 (replaces part # 97702-50014-00)	SCREW, TRUSS HEAD TAPPING	$9.49	$7.40	10+ In-Stock
13	32C-84745-01-00	LICENSE LIGHT UNIT ASSY	$84.99	$66.29
14	4SV-84347-00-00	BULB (12V-5W)	$9.49	$8.54	4 In-Stock
15	97707-40612-00	SCREW, TRUSS	$6.99	$6.29	Usually ships in 7-10 business days
16	90176-05054-00	NUT, CROWN	$8.49	$7.64	Usually ships in 7-10 business days
17	90111-05010-00 (replaces part # 90111-05030-00)	BOLT	$1.95	$1.76	Usually ships in 7-10 business days
18	90387-06159-00	COLLAR	$9.49	$7.40	8 In-Stock
19	4WM-83513-00-00	DAMPER	$8.49	$7.64	Usually ships in 7-10 business days
20	90201-061A5-00 (replaces part # 90201-05036-00)	WASHER, PLATE	$8.49	$6.62	10+ In-Stock
21	3Y6-85130-02-00	REAR REFLECTOR ASSY	$30.99	$24.17	3 In-Stock
22	90201-05725-00	WASHER, PLATE	$10.49	$8.60	6 In-Stock
23	95702-05500-00	NUT, WITH WASHER	-	$1.11	8 In-Stock
