2017 Yamaha YFZ450R Front Master Cylinder OEM Parts Diagram

Submodel YFZ450 - YFZ45YSXHL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER

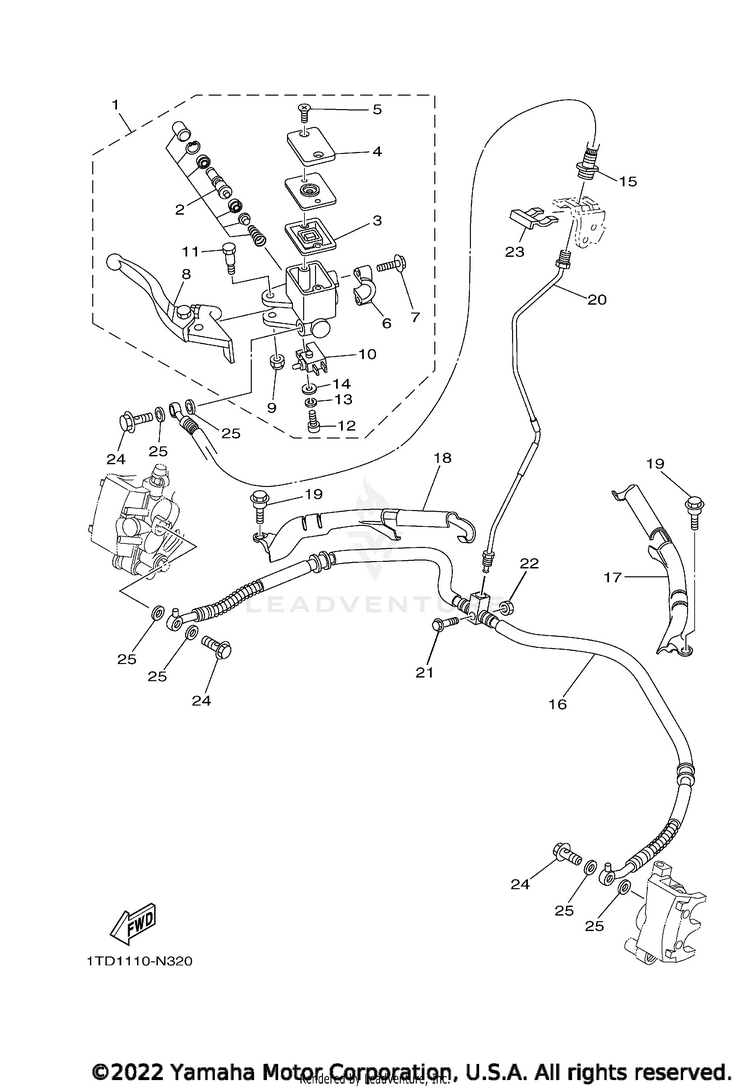

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15D3-2583T-02-00MASTER CYLINDER ASSY$348.99$272.213 In-Stock
25HH-W0041-00-00

(replaces part #
5D3-W0041-00-00)

CYLINDER KIT, MASTER$45.99$35.877 In-Stock
34TT-25854-00-00DIAPHRAGM, RESERVOIR$19.99$15.593 In-Stock
45YU-25852-00-00CAP, RESERVOIR$39.99$31.191 In-Stock
598707-04012-00

(replaces part #
98702-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
65MV-25867-00-00BRACKET, MASTER CYLINDER$22.99$17.934 In-Stock
75MV-25833-00-00BOLT, FITTING$7.49$5.846 In-Stock
85D3-83922-01-00LEVER 2$104.99$81.891 In-Stock
995780-06500-00

(replaces part #
95701-06500-00)

NUT, FLANGE$2.95$2.5410+ In-Stock
105D3-83980-00-00FRONT STOP SWITCH ASSY$78.99$61.61Usually ships in 7-10 business days
113B4-2589F-30-00BOLT, LEVER$14.49$11.303 In-Stock
1298580-04014-00

(replaces part #
98502-04014-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
1392990-04100-00

(replaces part #
92902-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1492990-04600-00

(replaces part #
92902-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
151TD-F5872-00-00HOSE, BRAKE 1$15.99$13.11Usually ships in 7-10 business days
161TD-F5873-01-00

(replaces part #
1TD-F5873-00-00)

HOSE, BRAKE 2$110.99$86.57Usually ships in 7-10 business days
1718P-25875-00-00HOLDER, BRAKE HOSE 1$11.99$9.352 In-Stock
1818P-25876-00-00HOLDER, BRAKE HOSE 2$12.99$10.131 In-Stock
1990109-06264-00BOLT$6.49$5.068 In-Stock
201TD-F5871-01-00

(replaces part #
1TD-F5871-00-00)

PIPE, BRAKE$14.49$11.302 In-Stock
2195817-06035-00

(replaces part #
95822-06035-00)

BOLT, FLANGE$8.49$6.6210+ In-Stock
2295317-06600-00

(replaces part #
95312-06600-00)

NUT$3.85$3.3110+ In-Stock
232GU-25866-00-00CIRCLIP$10.99$8.573 In-Stock
2490401-10015-00BOLT, UNION$12.49$9.7410+ In-Stock
2590201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
