2017 Yamaha YZ250X Fender OEM Parts Diagram

Submodel YZ250X - YZ250XH - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

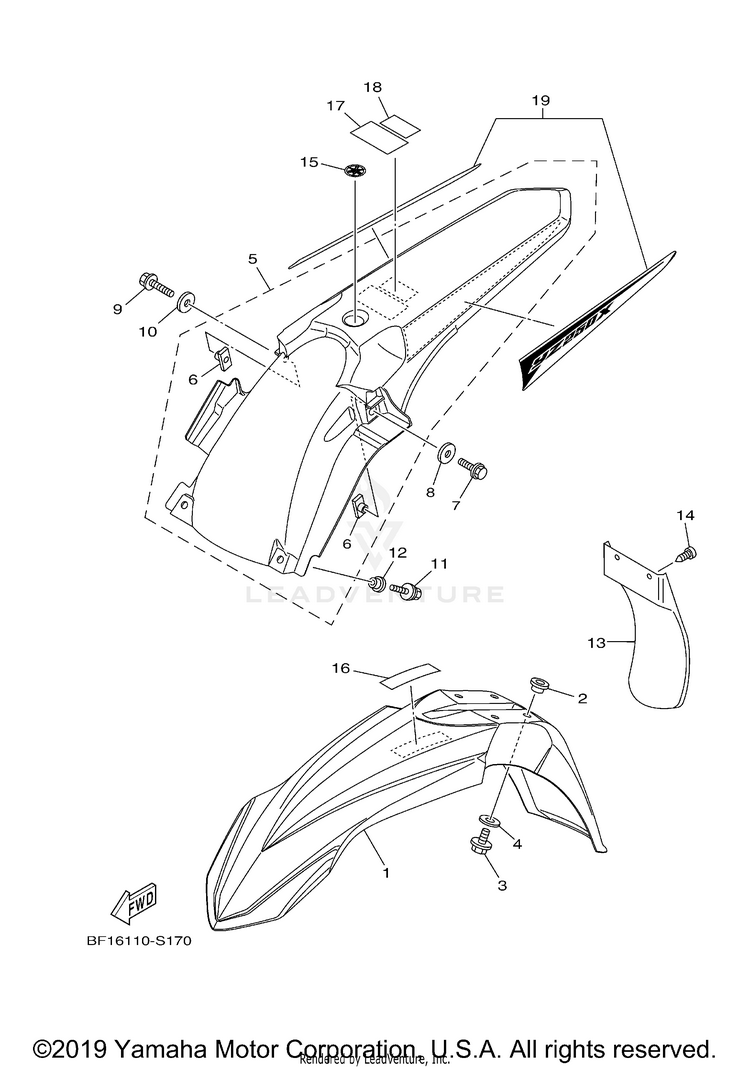

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
117D-21511-50-00FENDER, FRONT$34.99$32.298 In-Stock
290387-06259-00COLLAR$9.49$7.4010+ In-Stock
390105-06127-00BOLT, FLANGE$9.49$7.407 In-Stock
490201-06108-00WASHER, PLATE$4.95$4.2610+ In-Stock
51SS-21610-00-00REAR FENDER COMP.$42.99$41.0810+ In-Stock
65XE-21635-10-00NUT, REAR FENDER$14.49$11.3010+ In-Stock
790105-06100-00

(replaces part #
90105-06099-00)

BOLT, FLANGE$8.49$6.6210+ In-Stock
890201-06032-00WASHER, PLATE$9.49$7.409 In-Stock
990105-06102-00

(replaces part #
90105-06101-00)

BOLT, FLANGE$4.30$3.7010+ In-Stock
1090201-06033-00WASHER, PLATE$3.20$2.7510+ In-Stock
1190119-06149-00BOLT, WITH WASHER$9.49$7.406 In-Stock
1290387-06009-00COLLAR$11.49$8.9610+ In-Stock
135TA-21642-00-00GUARD, FLAP$43.99$34.3110+ In-Stock
1497702-60016-00SCREW, TAPPING$2.35$2.0210+ In-Stock
155FK-2175C-31-00

(replaces part #
5FK-2175C-30-00)

TUNING FORK MARK$5.99$4.67Not Shipping
163XJ-2415E-A1-00LABEL, CAUTION$5.49$4.285 In-Stock
175PA-2118K-01-00

(replaces part #
5PA-2118K-00-00)

LABEL, CAUTION$7.49$5.849 In-Stock
1817D-2812P-00-00PLATE, COMPETITION USA$8.49$6.626 In-Stock
19BF1-2165A-00-00GRAPHIC SET, REAR FENDER$41.99$32.754 In-Stock
