2017 Yamaha YZ450FX Crankcase OEM Parts Diagram

Submodel YZ450FX - YZ450FXH - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

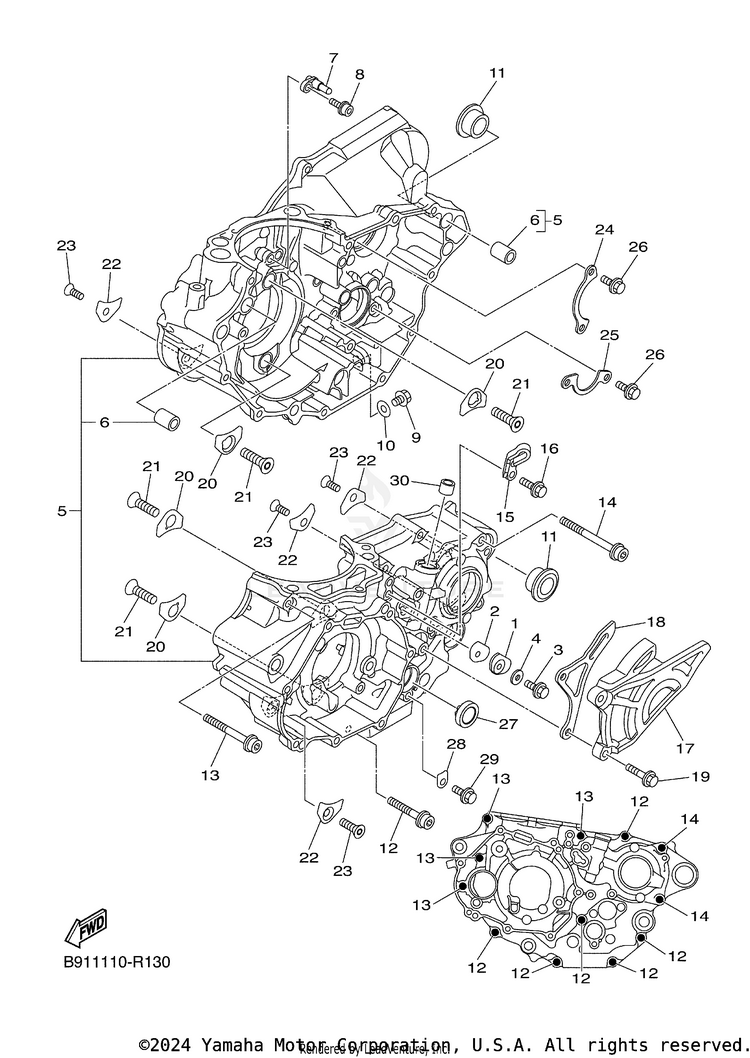

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BR9-13371-00-00

(replaces part #
1SL-13371-00-00)

PLATE$12.49$10.24Usually ships in 7-10 business days
21SL-13475-00-00GASKET$14.49$11.301 In-Stock
390105-06203-00BOLT, FLANGE$2.35$2.329 In-Stock
490430-06166-00GASKET$4.05$3.4810+ In-Stock
51SL-15100-09-00CRANKCASE ASSY$1,608.99$1,381.032 In-Stock
699530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
71SL-15155-00-00NOZZLE 3$44.99$36.89Usually ships in 7-10 business days
891312-06014-00

(replaces part #
90110-06168-00)

BOLT$5.49$4.2810+ In-Stock
995022-10016-00BOLT, FLANGE$9.49$7.4010+ In-Stock
1090430-10188-00GASKET$3.45$2.9710+ In-Stock
1190387-17015-00COLLAR$28.99$22.6110+ In-Stock
1290110-06391-00BOLT, HEXAGON SOCKET HEAD$2.55$2.499 In-Stock
1390110-06363-00BOLT, HEXAGON SOCKET HEAD$3.60$3.105 In-Stock
1490110-06392-00BOLT, HEXAGON SOCKET HEAD$4.05$3.486 In-Stock
152GC-15441-00-00HOLDER, CLUTCH CABLE$8.49$7.64Usually ships in 7-10 business days
1690105-06100-00

(replaces part #
90105-06099-00)

BOLT, FLANGE$8.49$6.6210+ In-Stock
171SL-15421-00-00COVER, CRANKCASE 2$17.99$14.038 In-Stock
181SL-17466-00-00GUIDE, CHAIN$19.99$15.597 In-Stock
1990105-06189-00BOLT, FLANGE$9.49$7.4010+ In-Stock
2018P-15383-00-00PLATE, BEARING COVER$8.49$6.6210+ In-Stock
2190151-08003-00SCREW, COUNTERSUNK$8.49$6.6210+ In-Stock
224JT-15381-01-00PLATE, BEARING COVER$14.49$11.3010+ In-Stock
2390151-06052-00

(replaces part #
90149-06074-00)

SCREW$9.49$7.4010+ In-Stock
241SL-15388-00-00PLATE, BEARING COVER$4.15$3.74Usually ships in 7-10 business days
251SL-18562-00-00PLATE, STOPPER 2$6.99$6.29Usually ships in 7-10 business days
2695022-06012-00

(replaces part #
90105-06081-00)

BOLT, FLANGE$3.55$3.0510+ In-Stock
273Y1-15361-00-00GAUGE, LEVEL$33.99$26.5110+ In-Stock
285XC-15118-00-00HOLDER$5.49$4.282 In-Stock
2995022-06010-00BOLT, FLANGE$6.49$5.066 In-Stock
3090384-06003-00BUSH, BIMETAL FORMED$5.49$4.282 In-Stock
