2017 Yamaha YZ85 Intake OEM Parts Diagram

Submodel YZ85 - YZ85H - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

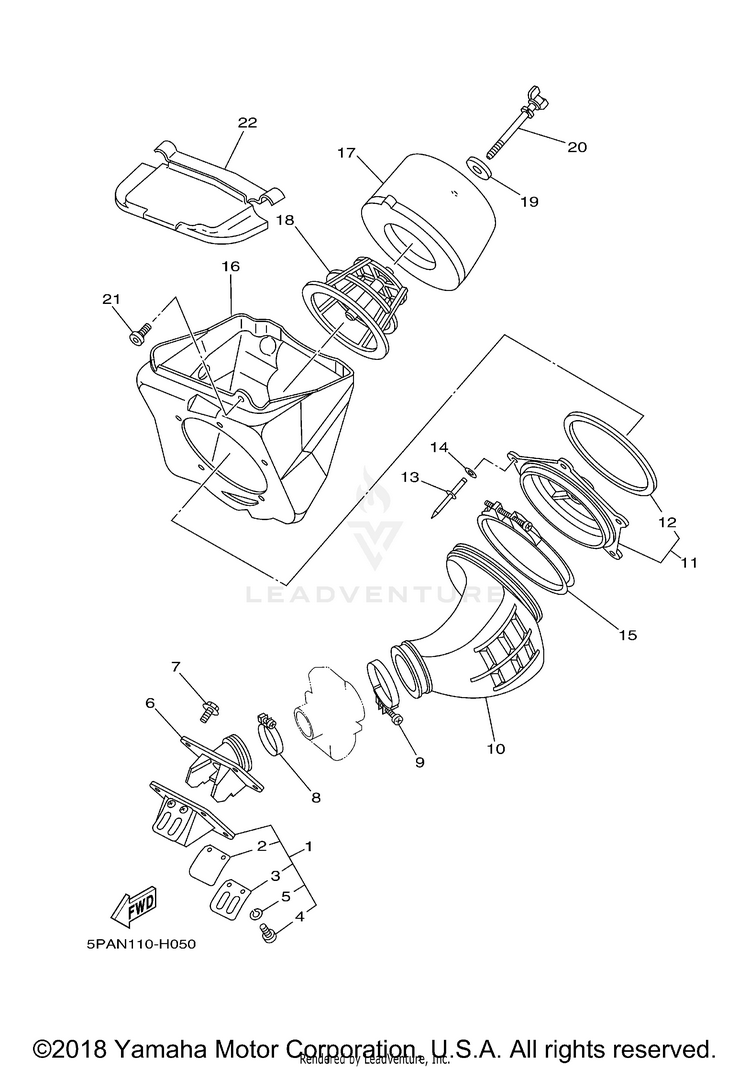

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14ES-13610-00-00REED VALVE ASSY$193.99$151.31Usually ships in 7-10 business days
24ES-13613-00-00REED, VALVE$22.99$17.934 In-Stock
34ES-13616-00-00STOPPER, REED VALVE$14.49$11.304 In-Stock
498580-03006-00

(replaces part #
98502-03006-00)

SCREW, PAN HEAD$10.49$8.1810+ In-Stock
592990-03100-00

(replaces part #
92902-03100-00)

WASHER, SPRING$9.49$7.4010+ In-Stock
65PA-13565-00-00JOINT, CARBURETOR$126.99$99.0510+ In-Stock
795022-06020-00BOLT, FLANGE$3.90$3.3510+ In-Stock
890460-41191-00

(replaces part #
90450-41001-00)

CLAMP, HOSE$18.49$14.426 In-Stock
990450-56001-00

(replaces part #
90460-56071-00)

HOSE CLAMP ASSY$19.49$15.2010+ In-Stock
105PA-14453-01-00

(replaces part #
5PA-14453-00-00)

JOINT, AIR CLEANER 1$142.99$111.53Usually ships in 7-10 business days
115PA-14459-00-00HOLDER, GUIDE$44.99$36.89Usually ships in 7-10 business days
124ES-14462-00-00SEAL$14.49$11.307 In-Stock
1390267-48138-00RIVET, BLIND$4.05$3.4810+ In-Stock
1490201-043H7-00WASHER, PLATE$3.75$3.2210+ In-Stock
1590450-99064-00HOSE CLAMP ASSY$46.99$36.655 In-Stock
165PA-14411-10-00CASE, AIR CLEANER 1$214.99$167.69Usually ships in 7-10 business days
175PA-14451-02-00

(replaces part #
5PA-14451-00-00)

ELEMENT, AIR CLEANER$38.99$30.4110+ In-Stock
AFTERMARKET ALTERNATIVE
$14.99$11.9910+ In-Stock
185PA-14458-00-00GUIDE$33.99$26.516 In-Stock
1990209-06096-00WASHER$10.49$8.1810+ In-Stock
2090122-06010-00BOLT, WING$11.49$8.9610+ In-Stock
2190109-065F3-00BOLT$9.49$7.4010+ In-Stock
225PA-14417-01-00

(replaces part #
5PA-14417-00-00)

COVER 1 | AP$10.99$8.572 In-Stock
