2017 Yamaha YZF-R1 Air Induction System OEM Parts Diagram

Submodel YZFR1 - YZFR1HCB - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

AIR INDUCTION SYSTEM

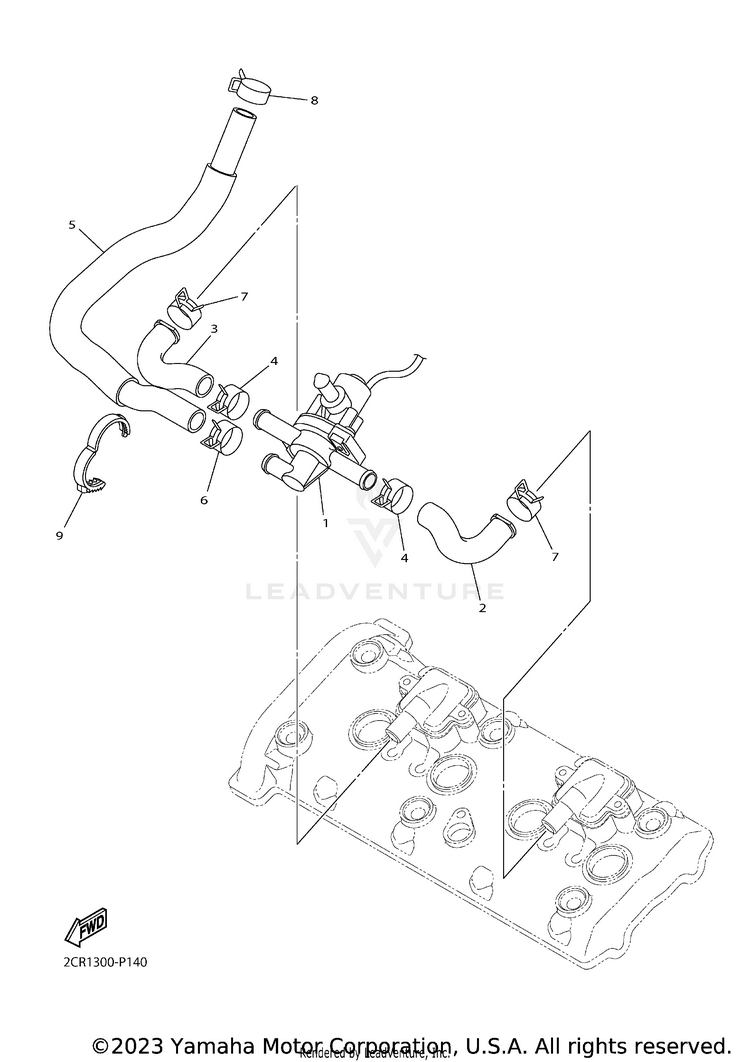

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12D1-14840-00-00AIR CUT VALVE ASSY$189.99$150.75Usually ships in 7-10 business days
24C8-14881-01-00HOSE, BEND 1$19.49$15.98Usually ships in 7-10 business days
34C8-14882-01-00HOSE, BEND 2$19.49$15.98Usually ships in 7-10 business days
490467-18172-00CLIP$8.49$7.64Usually ships in 7-10 business days
52CR-14883-00-00HOSE, BEND 3$30.99$25.41Usually ships in 7-10 business days
690467-18172-00CLIP$8.49$7.64Usually ships in 7-10 business days
790467-180A0-00CLIP$9.49$8.54Usually ships in 7-10 business days
890467-17003-00CLIP$6.49$5.84Usually ships in 7-10 business days
990464-28003-00CLAMP$4.55$4.10Usually ships in 7-10 business days
