2017 Yamaha YZF-R1 Electrical 3 OEM Parts Diagram

Submodel YZFR1 - YZFR1HCL - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 3

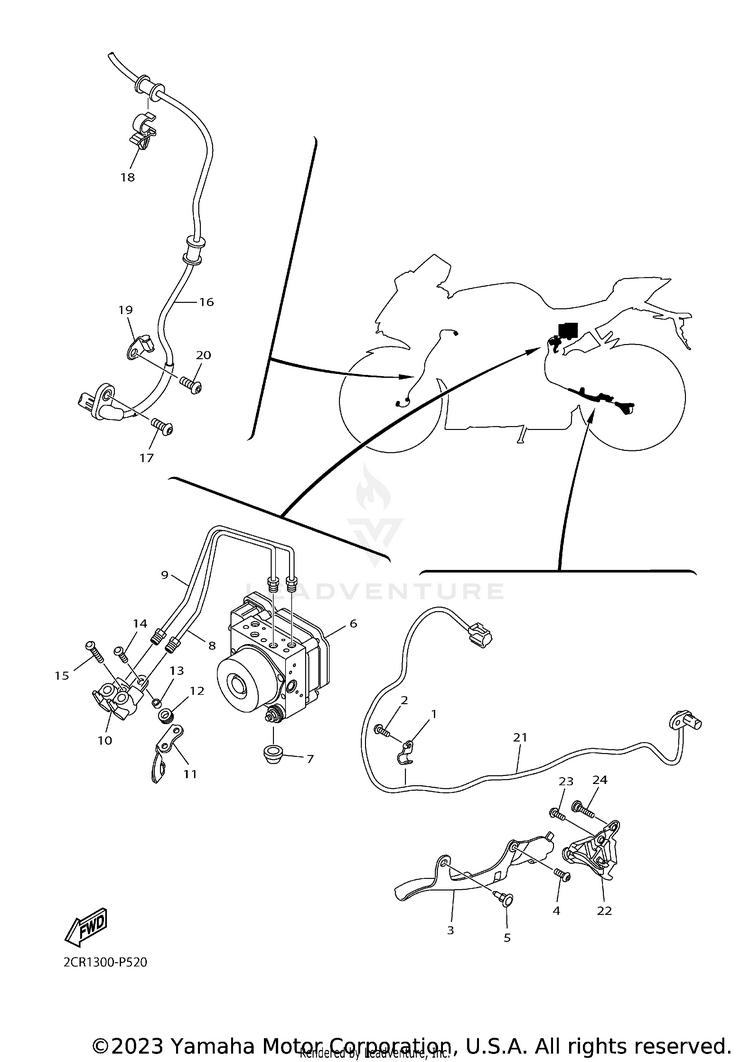

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12CR-2216F-00-00HOOK$5.49$4.94Usually ships in 7-10 business days
292017-06012-00BOLT, BUTTON HEAD-$3.584 In-Stock
32CR-2219X-00-00COVER$16.49$13.52Usually ships in 7-10 business days
492012-06016-00BOLT, BUTTON HEAD$9.49$7.407 In-Stock
590269-07007-00RIVET$4.40$3.787 In-Stock
AFTERMARKET ALTERNATIVE
$6.99$4.9910+ In-Stock
62CR-85930-09-00HYDRAULIC UNIT ASSY$1,596.99$1,396.54Usually ships in 7-10 business days
72CR-85916-00-00CAP, DAMPER$4.20$3.78Usually ships in 7-10 business days
82CR-25871-00-00PIPE, BRAKE$13.99$11.47Usually ships in 7-10 business days
92CR-25882-00-00PIPE, BRAKE 2$13.49$11.06Usually ships in 7-10 business days
102CR-25885-00-00JOINT$59.99$46.79Usually ships in 7-10 business days
112CR-27251-00-00BRACKET, CABLE$14.49$11.88Usually ships in 7-10 business days
1290480-11006-00GROMMET$4.50$4.05Usually ships in 7-10 business days
1390387-06761-00

(replaces part #
90387-066V8-00)

COLLAR$10.49$8.183 In-Stock
1492017-06020-00BOLT, BUTTON HEAD$4.05$3.488 In-Stock
1592017-06035-00BOLT, BUTTON HEAD$3.45$2.978 In-Stock
162CR-85970-01-00

(replaces part #
2CR-85970-00-00)

WHEEL SENSOR ASSY, F$145.99$113.87Usually ships in 7-10 business days
1792017-06014-00BOLT, BUTTON HEAD$4.60$3.966 In-Stock
1890464-09129-00CLAMP$2.30$2.07Usually ships in 7-10 business days
192CR-23317-00-00HOLDER, CABLE$10.49$8.60Usually ships in 7-10 business days
2092017-06012-00BOLT, BUTTON HEAD-$3.584 In-Stock
212CR-85980-01-00

(replaces part #
2CR-85980-00-00)

WHEEL SENSOR ASSY, R$179.99$140.39Usually ships in 7-10 business days
222CR-27491-01-00

(replaces part #
2CR-27491-00-00)

PROTECTOR$16.49$13.52Usually ships in 7-10 business days
2392012-06014-00BOLT, BUTTON HEAD$9.49$7.40
2490109-06234-00BOLT$8.49$7.64Usually ships in 7-10 business days
