2017 Yamaha YZF-R1M Generator OEM Parts Diagram

Submodel YZFR1M - YZFR1MHC - 2017

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

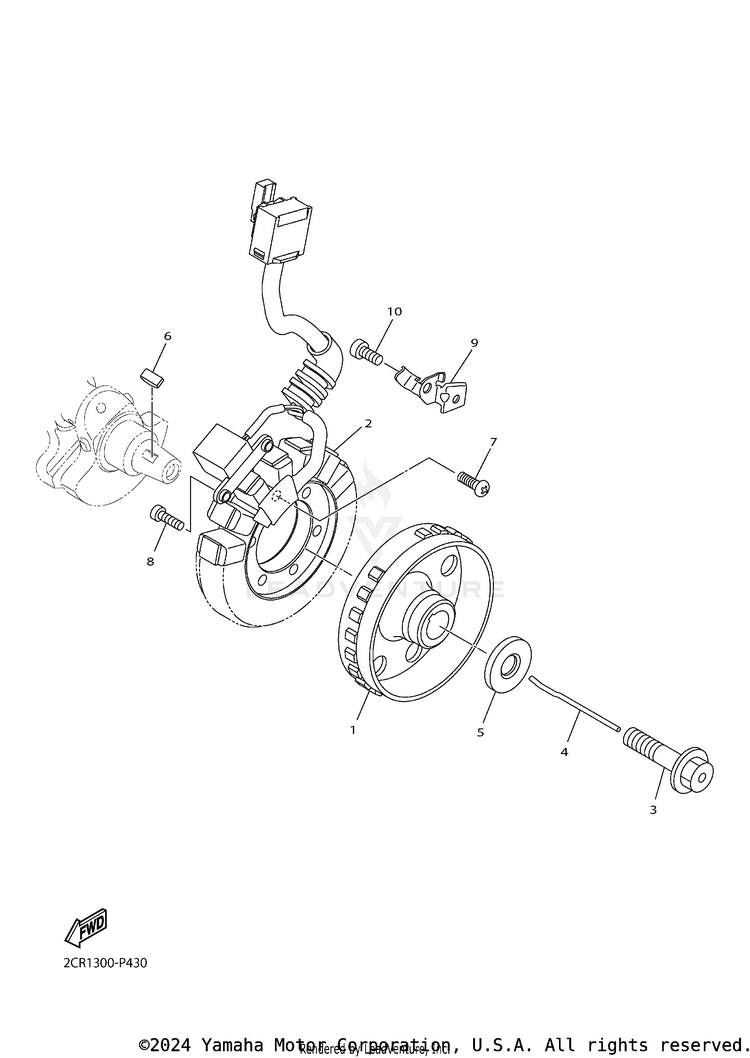

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12CR-81450-00-00ROTOR ASSY$615.99$498.59Usually ships in 7-10 business days
22CR-81410-02-00

(replaces part #
2CR-81410-00-00)

STATOR ASSY$309.99$256.00Usually ships in 7-10 business days
390109-10061-00BOLT$33.99$27.87Usually ships in 7-10 business days
42CR-11455-00-00SHAFT 1$3.30$2.97Usually ships in 7-10 business days
590201-107K6-00WASHER, PLATE$13.49$11.06Usually ships in 7-10 business days
690280-05029-00KEY, WOODRUFF$12.49$10.24Usually ships in 7-10 business days
790149-06129-00

(replaces part #
90149-06128-00)

SCREW$9.49$8.54Usually ships in 7-10 business days
891317-05016-00

(replaces part #
90110-05034-00)

BOLT$3.55$3.0510+ In-Stock
92CR-15484-00-00CLAMP 2$9.49$8.54Usually ships in 7-10 business days
1091317-06012-00

(replaces part #
90110-06182-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
