2018 Yamaha MT-07 Clutch OEM Parts Diagram

Submodel MT07 - MT07JCL - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

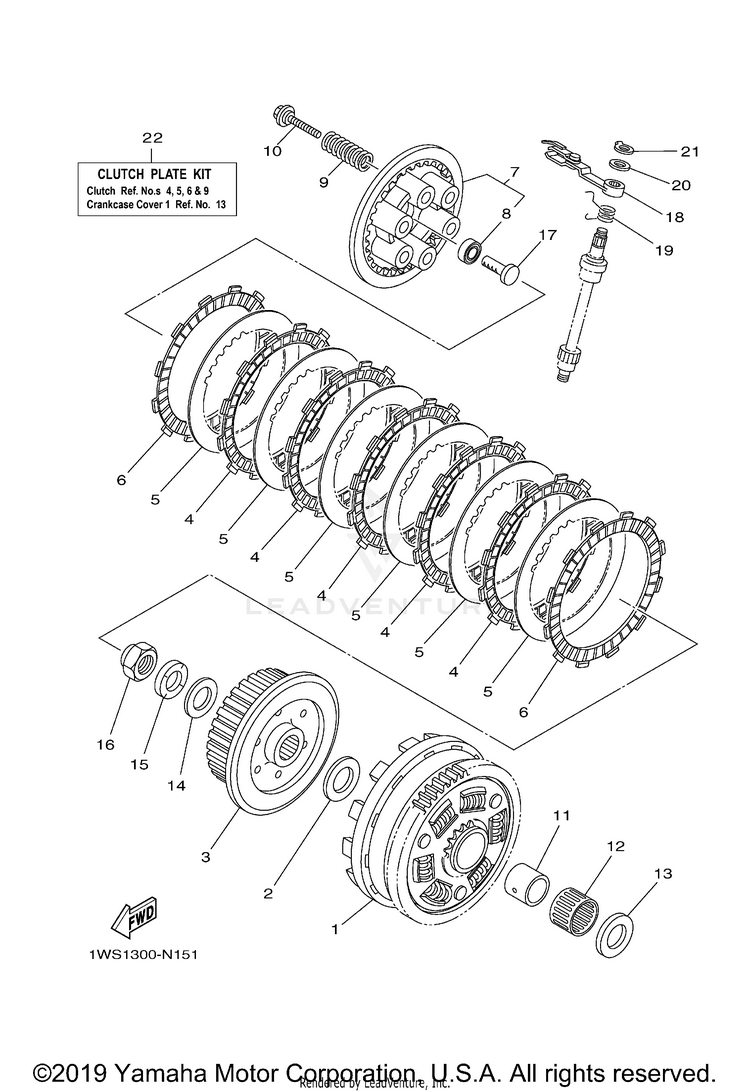

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WS-16150-00-00PRIMARY DRIVEN GEAR COMP.$423.99$330.71Usually ships in 7-10 business days
2363-16154-00-00PLATE, THRUST 1$17.99$14.75Usually ships in 7-10 business days
31WS-16371-01-00

(replaces part #
1WS-16371-00-00)

BOSS, CLUTCH$77.99$60.83Usually ships in 7-10 business days
45VY-16321-00-00PLATE, FRICTION | INCL. IN CLUTCH PLATE KIT$34.99$27.2910+ In-Stock
55VY-16325-20-00

(replaces part #
5VY-16325-00-00)

PLATE, CLUTCH 2 | INCL. IN CLUTCH PLATE KIT (T2.0)$12.49$9.7410+ In-Stock
65TG-16321-00-00PLATE, FRICTION | INCL. IN CLUTCH PLATE KIT$16.49$12.8610+ In-Stock
71WS-16350-00-00PRESSURE PLATE ASSY$75.99$59.27Usually ships in 7-10 business days
893306-00105-00

(replaces part #
93306-00106-00)

BEARING$33.99$26.5110+ In-Stock
990501-230E4-00SPRING, COMPRESSION | INCL. IN CLUTCH PLATE KIT$10.49$8.1810+ In-Stock
1090119-06263-00BOLT, WITH WASHER$9.49$8.546 In-Stock
111WS-16181-00-00SPACER 1$50.99$39.77Usually ships in 7-10 business days
1293310-232R9-00BEARING$47.99$39.35Usually ships in 7-10 business days
13363-16154-00-00PLATE, THRUST 1$17.99$14.75Usually ships in 7-10 business days
1490201-20030-00WASHER, PLATE$8.49$6.6210+ In-Stock
1590208-20001-00WASHER, CONICAL SPRING$18.49$14.4210+ In-Stock
1690179-20022-00

(replaces part #
90179-20007-00)

NUT$15.49$12.0810+ In-Stock
171WS-16356-00-00ROD, PUSH 1$58.99$46.01Usually ships in 7-10 business days
181WS-16340-01-00

(replaces part #
1WS-16340-00-00)

PUSH LEVER ASSY$31.99$26.23Usually ships in 7-10 business days
1990508-18132-00SPRING, TORSION$8.49$6.622 In-Stock
2090201-10029-00WASHER, PLATE$8.49$6.624 In-Stock
2199009-10400-00CIRCLIP$5.49$4.2810+ In-Stock
22BTK-W001G-00-00

(replaces part #
1WS-W001G-00-00)

CLUTCH PLATE KIT | NOT SHOWN$137.99$107.639 In-Stock
