2018 Yamaha MT-07 Intake OEM Parts Diagram

Submodel MT07 - MT07JCW - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

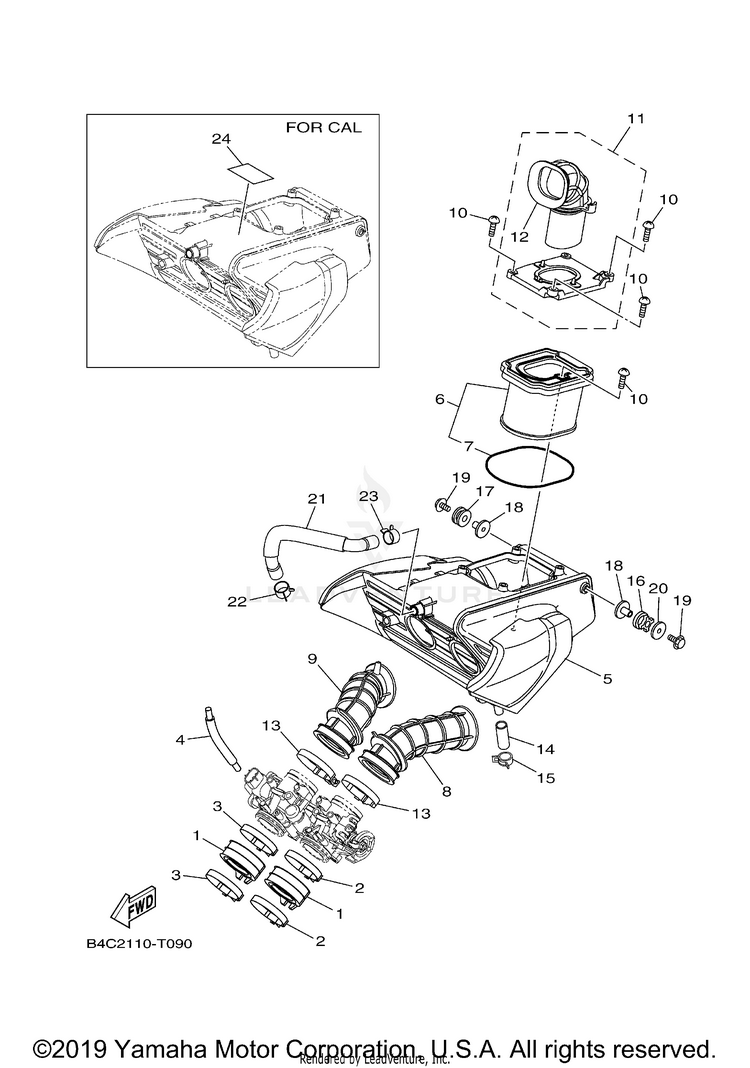

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WS-13635-00-00JOINT, INTAKE 1$30.99$25.41Usually ships in 7-10 business days
290450-56011-00HOSE CLAMP ASSY$15.49$12.082 In-Stock
390450-56012-00HOSE CLAMP ASSY$36.99$30.33Usually ships in 7-10 business days
41WS-13542-00-00HOSE, VACUUM SENSING 1$4.90$4.41Usually ships in 7-10 business days
5B4C-14401-00-00AIR CLEANER CASE ASSY$114.99$89.69Usually ships in 7-10 business days
61WS-14450-00-00ELEMENT ASSY, AIR CLEANER$43.99$34.3110+ In-Stock
71WS-14452-00-00SEAL$8.49$6.623 In-Stock
81WS-14469-01-00

(replaces part #
1WS-14469-00-00)

FUNNEL, AIR$28.99$23.77Usually ships in 7-10 business days
91WS-1446C-01-00

(replaces part #
1WS-1446C-00-00)

FUNNEL 2$28.99$23.77Usually ships in 7-10 business days
1090160-05013-00SCREW, ROUND TAPPING$9.49$7.408 In-Stock
111WS-14430-11-00

(replaces part #
1WS-14430-10-00)

DUCT ASSY$37.99$31.15Usually ships in 7-10 business days
121WS-14437-11-00

(replaces part #
1WS-14437-10-00)

DUCT$41.99$34.43Usually ships in 7-10 business days
1390450-56011-00HOSE CLAMP ASSY$15.49$12.082 In-Stock
141WS-1443E-00-00PIPE, DRAIN$4.65$4.18Usually ships in 7-10 business days
1590467-13133-00

(replaces part #
90467-13083-00)

CLIP$9.49$7.4010+ In-Stock
1690480-15001-00GROMMET$9.49$8.545 In-Stock
1790480-15014-00GROMMET$4.60$4.14Usually ships in 7-10 business days
1890387-06300-00COLLAR$8.49$7.645 In-Stock
1995817-06025-00BOLT, FLANGE$5.49$4.2810+ In-Stock
2090201-064K6-00WASHER, PLATE$10.49$8.1810+ In-Stock
211WS-11166-00-00PIPE, BREATHER 1$25.99$21.31Usually ships in 7-10 business days
2290467-17128-00CLIP$9.49$7.4010+ In-Stock
2390467-160A2-00CLIP$6.49$5.062 In-Stock
2434B-21684-00-00PLATE, ROUTING | FOR CAL$7.49$6.743 In-Stock
