2018 Yamaha SR400 Electrical 2 OEM Parts Diagram

Submodel SR400 - SR400JCL - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

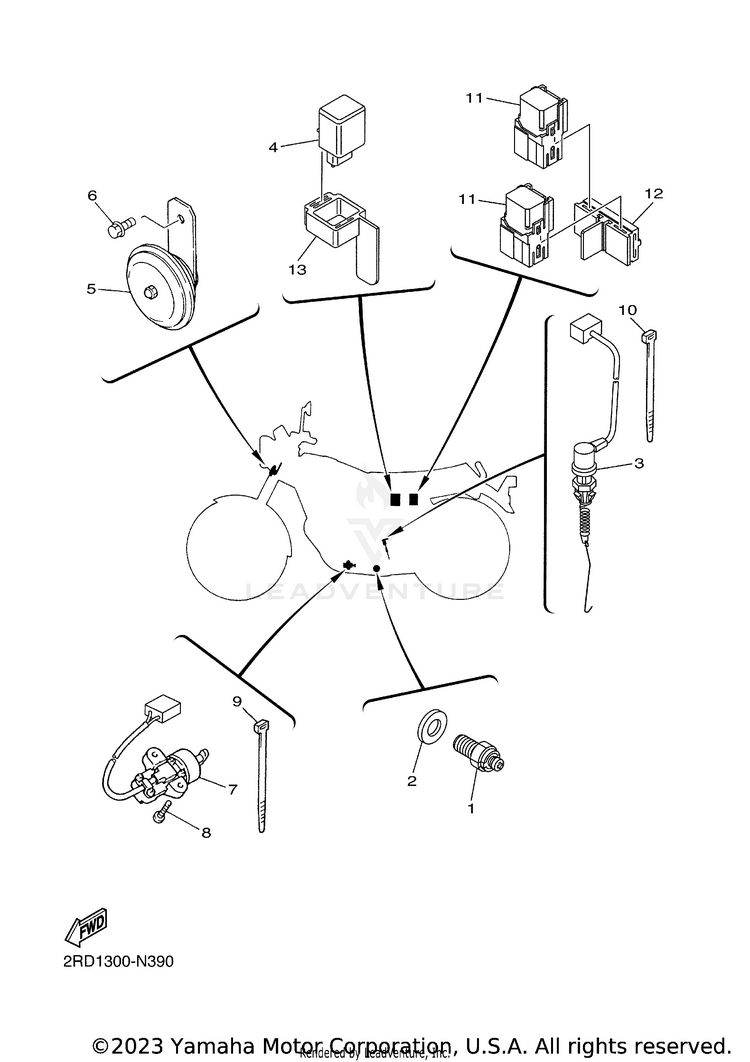

ELECTRICAL 2

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14GY-82540-10-00

(replaces part #
4KM-82540-00-00)

NEUTRAL SWITCH ASSY$41.99$32.754 In-Stock
290430-10148-00GASKET$5.99$4.6710+ In-Stock
33HT-82530-00-00STOP SWITCH ASSY$32.99$27.05Usually ships in 7-10 business days
43HT-83350-01-00

(replaces part #
3HT-83350-00-00)

FLASHER RELAY ASSY$61.99$48.35Usually ships in 7-10 business days
525G-83371-00-00HORN$98.99$77.21Usually ships in 7-10 business days
695817-08012-00

(replaces part #
95807-08012-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
73D8-82566-71-00

(replaces part #
3D8-82566-70-00)

SWITCH, SIDE STAND$86.99$67.85Usually ships in 7-10 business days
898507-05014-00

(replaces part #
90157-05079-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
91UA-82591-00-00BAND$5.49$4.2810+ In-Stock
101UA-82591-00-00BAND$5.49$4.2810+ In-Stock
115UM-81950-E0-00RELAY ASSY (5UM-E0)$22.99$17.931 In-Stock
125XT-81952-00-00HOLDER, RELAY$11.49$9.42Usually ships in 7-10 business days
133HT-82176-00-00DAMPER$12.49$10.24Usually ships in 7-10 business days
