2018 Yamaha TTR 50E Shift Shaft OEM Parts Diagram

Submodel TTR50E - TTR50EJ - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT SHAFT

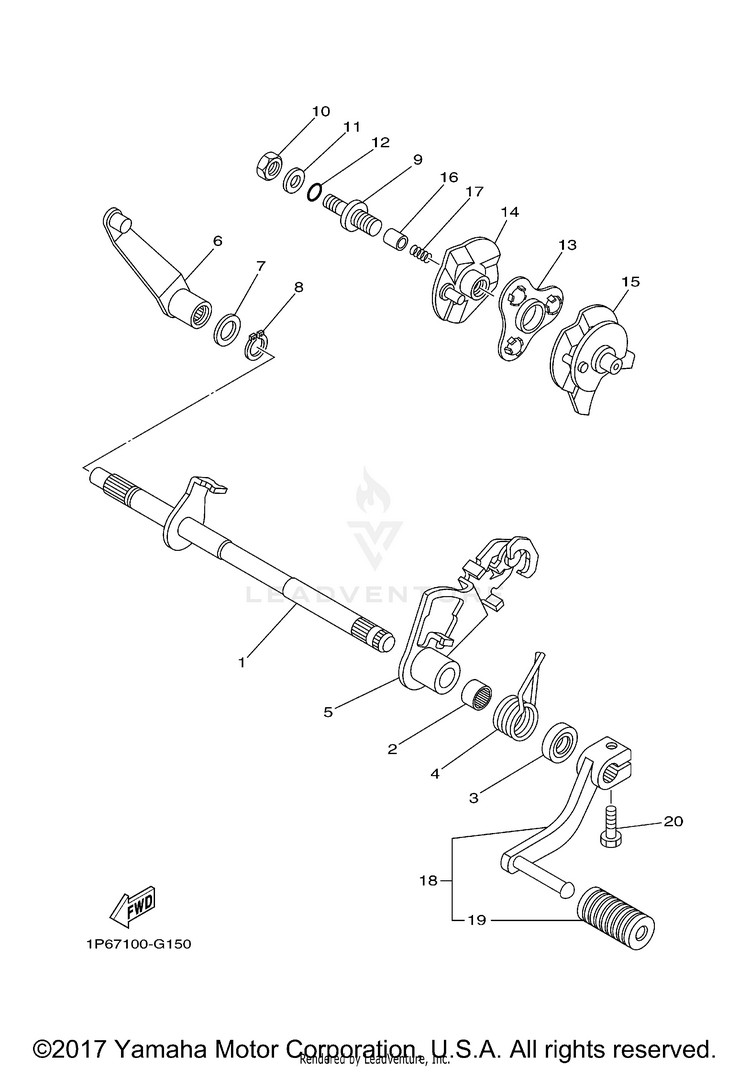

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11P6-E8101-11-00SHIFT SHAFT ASSY$61.99$48.356 In-Stock
293317-11287-00BEARING$25.99$20.2710+ In-Stock
393102-12321-00

(replaces part #
93102-12806-00)

OIL SEAL (SD 12-22-5 HS)$13.49$10.5210+ In-Stock
490508-29007-00SPRING, TORSION$12.49$10.24Usually ships in 7-10 business days
51P6-18120-00-00SHIFT LEVER ASSY$89.99$70.19Usually ships in 7-10 business days
61P6-1817A-00-00ARM, SHIFT 3$77.99$60.83Usually ships in 7-10 business days
790201-12166-00

(replaces part #
90201-128C9-00)

WASHER, PLATE$10.49$8.184 In-Stock
899009-12400-00CIRCLIP$3.59$3.0910+ In-Stock
91P6-E8186-01-00SCREW, ADJUSTING$8.49$7.64Usually ships in 7-10 business days
1090170-08803-00NUT$2.35$2.12Usually ships in 7-10 business days
1192990-08600-00

(replaces part #
92902-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
1293210-08003-00

(replaces part #
93210-08810-00)

O-RING$10.49$8.185 In-Stock
131P6-18181-00-00HOLDER, PAWL$19.99$16.39Usually ships in 7-10 business days
141P6-18104-00-00SHIFT GUIDE COMP.$49.99$40.99Usually ships in 7-10 business days
151P6-18106-00-00GUIDE SHIFT COMP. 2$93.99$73.31Usually ships in 7-10 business days
161P6-E8184-00-00PIN, PAWL$7.49$5.842 In-Stock
171P6-E8183-00-00SPRING$7.49$5.841 In-Stock
181P6-E8110-10-00

(replaces part #
1P6-E8110-01-00)

SHIFT PEDAL ASSY$51.99$40.556 In-Stock
191KL-E8113-00-00COVER, SHIFT PEDAL$9.49$7.404 In-Stock
2097017-06020-00

(replaces part #
97027-06020-00)

BOLT$4.06$3.4910+ In-Stock
