2018 Yamaha XSR700 Electrical 2 OEM Parts Diagram

Submodel XSR700 - XSR700JCR - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 2

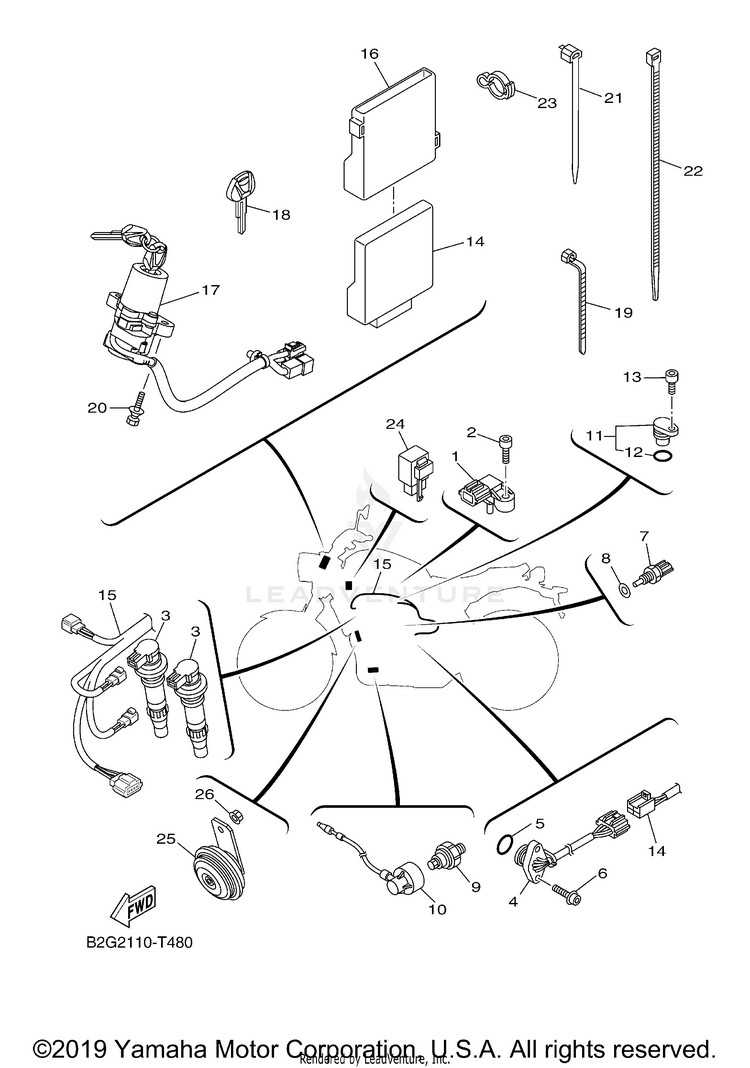

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WS-82380-00-00SENSOR, PRESSURE$209.99$163.798 In-Stock
291317-05020-00

(replaces part #
91312-05020-00)

BOLT$3.55$3.0510+ In-Stock
31WS-82310-00-00IGNITION COIL ASSY$119.99$93.593 In-Stock
41WS-82540-01-00

(replaces part #
1WS-82540-00-00)

NEUTRAL SWITCH ASSY$77.99$60.83Usually ships in 7-10 business days
593210-21001-00O-RING$6.49$5.0610+ In-Stock
690110-05038-00

(replaces part #
90110-05067-00)

BOLT, HEXAGON SOCKET HEAD$8.49$6.628 In-Stock
752B-H3591-00-00

(replaces part #
4P9-83591-00-00)

THERMO UNIT$37.99$29.6310+ In-Stock
890430-10004-00GASKET$7.49$5.8410+ In-Stock
91WS-82504-01-00

(replaces part #
1WS-82504-00-00)

OIL PRESSURE SWITCH ASSY$76.99$60.05Usually ships in 7-10 business days
101WS-81315-00-00LEAD WIRE ASSY$18.99$15.57Usually ships in 7-10 business days
113P6-15399-00-00PLUG, BLIND$20.99$17.21Usually ships in 7-10 business days
1293210-15566-00O-RING$8.49$6.6210+ In-Stock
1391312-06016-00BOLT, HEXAGON SOCKET HEAD$6.49$5.0610+ In-Stock
142RC-8591A-21-00

(replaces part #
2RC-8591A-20-00)

ENGINE CONTROL UNIT$799.99$647.80Usually ships in 7-10 business days
15B2G-82309-00-00WIRE, SUB LEAD$124.99$97.49Usually ships in 7-10 business days
16B34-H5546-00-00BAND$36.99$30.33Usually ships in 7-10 business days
17B2G-82501-00-00MAIN SWITCH STEERING LOCK$203.99$159.11Usually ships in 7-10 business days
184BH-82511-09-00BLANK KEY | AP$33.99$26.517 In-Stock
1990464-25004-00CLAMP$4.50$3.876 In-Stock
2090109-08196-00

(replaces part #
90109-08195-00)

BOLT$9.49$7.4010+ In-Stock
21437-83936-11-00

(replaces part #
90465-13M24-00)

BAND, SWITCH CORD$5.00$4.3010+ In-Stock
2290464-65001-00CLAMP$5.99$5.39Usually ships in 7-10 business days
2390464-10233-00CLAMP$8.49$7.64Usually ships in 7-10 business days
245C4-83350-02-00

(replaces part #
5C4-83350-00-00)

FLASHER RELAY ASSY$71.99$56.15Usually ships in 7-10 business days
251WS-83371-00-00HORN$62.99$49.13Usually ships in 7-10 business days
2695707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
