2018 Yamaha XSR700 Starting Motor OEM Parts Diagram

Submodel XSR700 - XSR700JCL - 2018

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTING MOTOR

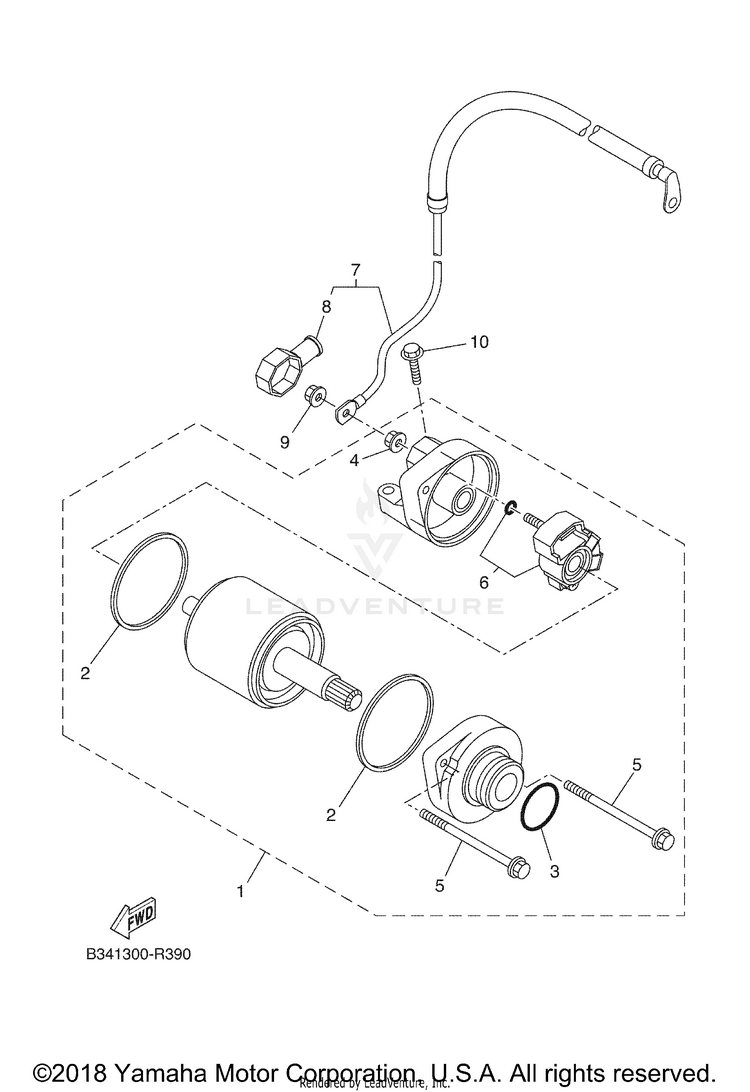

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WS-81890-00-00MOTOR ASSY$302.99$249.83Usually ships in 7-10 business days
24B5-81844-00-00GASKET$33.99$27.872 In-Stock
393210-24235-00

(replaces part #
1FK-81847-00-00)

O-RING$8.49$7.078 In-Stock
44XV-8182A-00-00NUT$8.49$6.626 In-Stock
518P-81826-00-00BOLT$17.99$14.03Not Shipping
618P-81801-00-00BRUSH SET$111.99$87.35Usually ships in 7-10 business days
71WS-81815-00-00CORD, STARTER MOTOR$71.99$56.15Usually ships in 7-10 business days
84B5-81871-00-00CAP$11.49$9.42Usually ships in 7-10 business days
94XV-8182A-00-00NUT$8.49$6.626 In-Stock
1091317-06025-00

(replaces part #
91312-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
