2019 Yamaha Bolt Front Brake Caliper OEM Parts Diagram

Submodel BOLT - XVS95CKCB - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

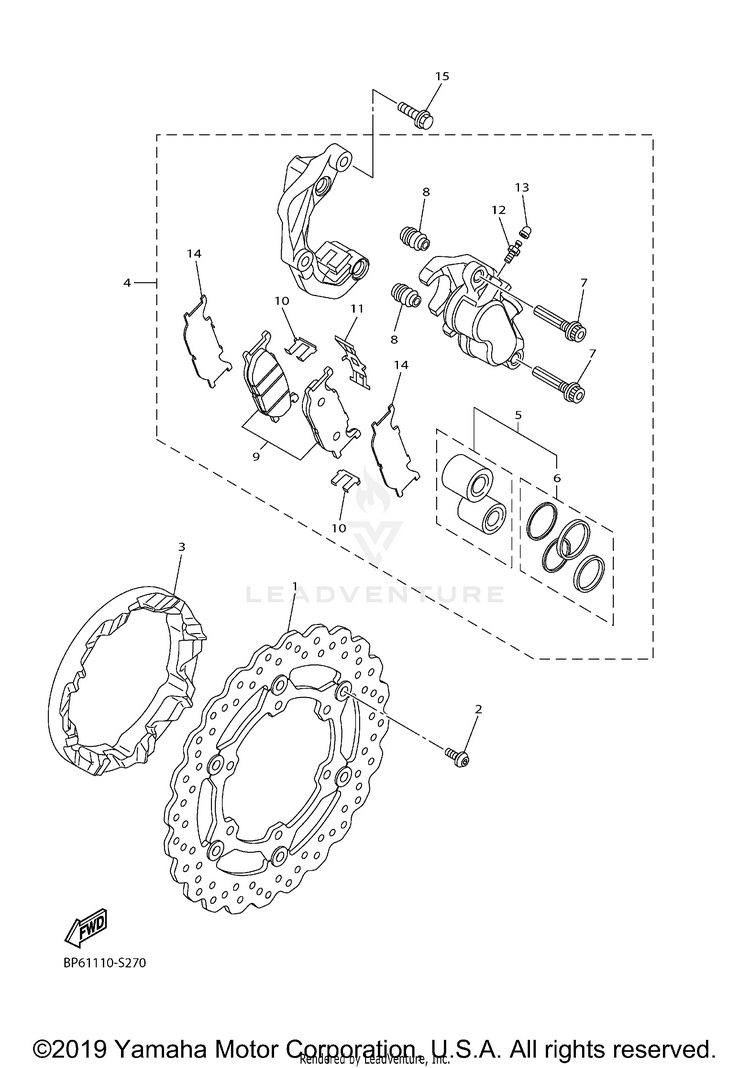

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11TP-2581T-00-00DISC BRAKE ASSY$247.99$193.43Usually ships in 7-10 business days
290111-08053-00

(replaces part #
90109-081F0-00)

BOLT,HEX. SOCKET BUT$10.49$8.6010+ In-Stock
3BP6-2514A-00-00RING, WHEEL 1$39.99$32.79Usually ships in 7-10 business days
427D-2580T-00-00CALIPER ASSY (LEFT)$440.99$364.84Usually ships in 7-10 business days
53YX-W0057-00-00PISTON ASSY, CALIPER$66.99$52.25Usually ships in 7-10 business days
63JB-25803-00-00

(replaces part #
3JB-W0047-00-00)

CALIPER SEAL KIT$49.99$40.99Usually ships in 7-10 business days
75JW-25914-10-00PIN, SLIDE$24.99$19.495 In-Stock
84TT-25937-00-00BOOT 2$17.99$14.75Usually ships in 7-10 business days
95S7-25805-00-00

(replaces part #
5S7-W0045-00-00)

BRAKE PAD KIT$80.99$63.17Usually ships in 7-10 business days
104BP-25919-00-00SUPPORT, PAD$48.99$40.17Usually ships in 7-10 business days
113YX-25929-00-00SPRING, ANTI RATTLE$35.99$29.51Usually ships in 7-10 business days
1247X-25824-01-00SCREW, BLEED$15.49$12.70Usually ships in 7-10 business days
131D7-25825-00-00CAP$8.49$6.622 In-Stock
144DN-25827-00-00SHIM, CALIPER$28.99$23.77Usually ships in 7-10 business days
1590105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
