2019 Yamaha MT-07 Crankcase Cover 1 OEM Parts Diagram

Submodel MT07 - MT07KCB - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

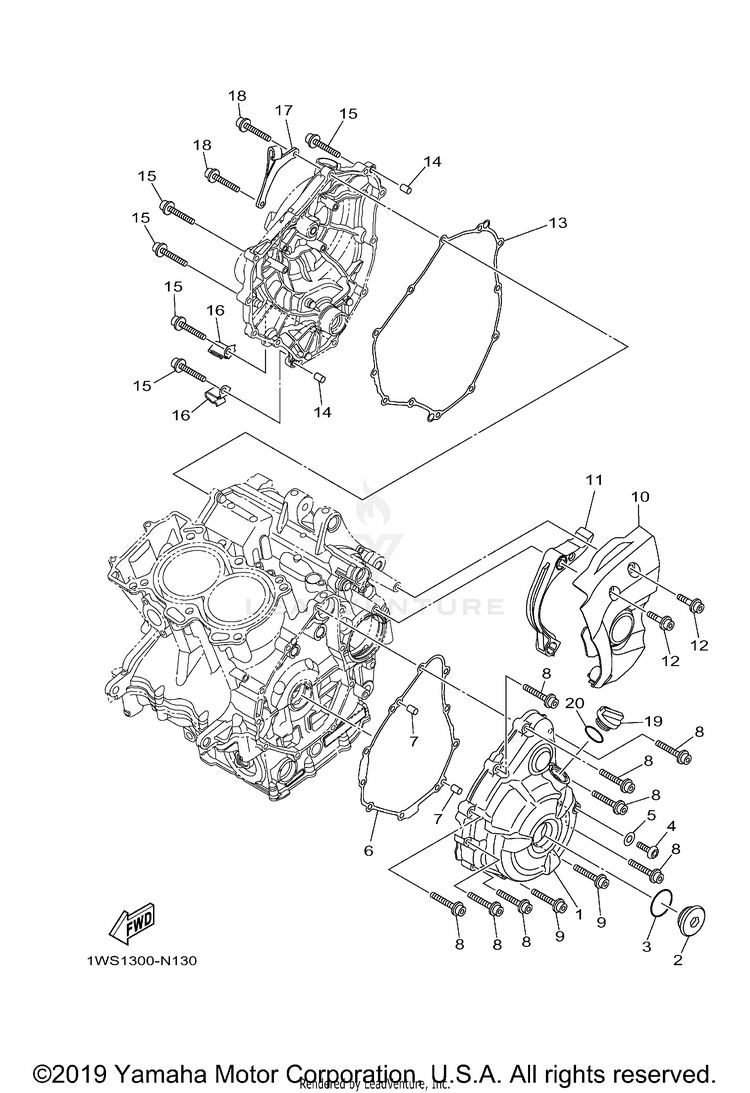

CRANKCASE COVER 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WS-15411-00-00COVER, CRANKCASE 1 | MDYNM2$138.99$108.41Usually ships in 7-10 business days
290340-36005-00PLUG, STRAIGHT SCREW$34.99$28.69Usually ships in 7-10 business days
393210-35804-00

(replaces part #
93210-357A3-00)

O-RING-$8.1710+ In-Stock
492017-08012-00BOLT, BUTTON HEAD$9.49$7.404 In-Stock
590430-08143-00GASKET$3.45$2.975 In-Stock
61WS-15451-00-00GASKET, CRANKCASE COVER 1$22.99$17.934 In-Stock
799530-08012-00PIN, DOWEL$6.99$5.4510+ In-Stock
890110-06388-00BOLT, HEXAGON SOCKET HEAD$6.49$5.0610+ In-Stock
990110-06388-00

(replaces part #
90110-06389-00)

BOLT, HEXAGON SOCKET HEAD$6.49$5.0610+ In-Stock
101WS-15418-00-00COVER, CHAIN CASE$30.99$25.41Usually ships in 7-10 business days
111WS-15377-00-00GUIDE, INLET$34.99$28.69Usually ships in 7-10 business days
1290110-06396-00

(replaces part #
90110-06395-00)

BOLT, HEXAGON SOCKET HEAD$3.20$2.7510+ In-Stock
131WS-15461-00-00GASKET, CRANKCASE COVER 2 | INCL. IN CLUTCH PLATE KIT$38.99$30.414 In-Stock
1499530-08012-00PIN, DOWEL$6.99$5.4510+ In-Stock
1590110-06388-00BOLT, HEXAGON SOCKET HEAD$6.49$5.0610+ In-Stock
1690465-08045-00CLAMP$13.49$11.06Usually ships in 7-10 business days
171WS-15441-00-00HOLDER, CLUTCH CABLE$16.49$13.52Usually ships in 7-10 business days
1890110-06388-00

(replaces part #
90110-06389-00)

BOLT, HEXAGON SOCKET HEAD$6.49$5.0610+ In-Stock
19BAT-15362-00-00

(replaces part #
3F9-15362-10-00)

PLUG, OIL LEVEL$21.99$17.153 In-Stock
2093210-27778-00

(replaces part #
93210-27194-00)

O-RING$9.49$7.4010+ In-Stock
