2019 Yamaha MT-09 Air Induction System OEM Parts Diagram

Submodel MT09 CA - MT09KCB - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

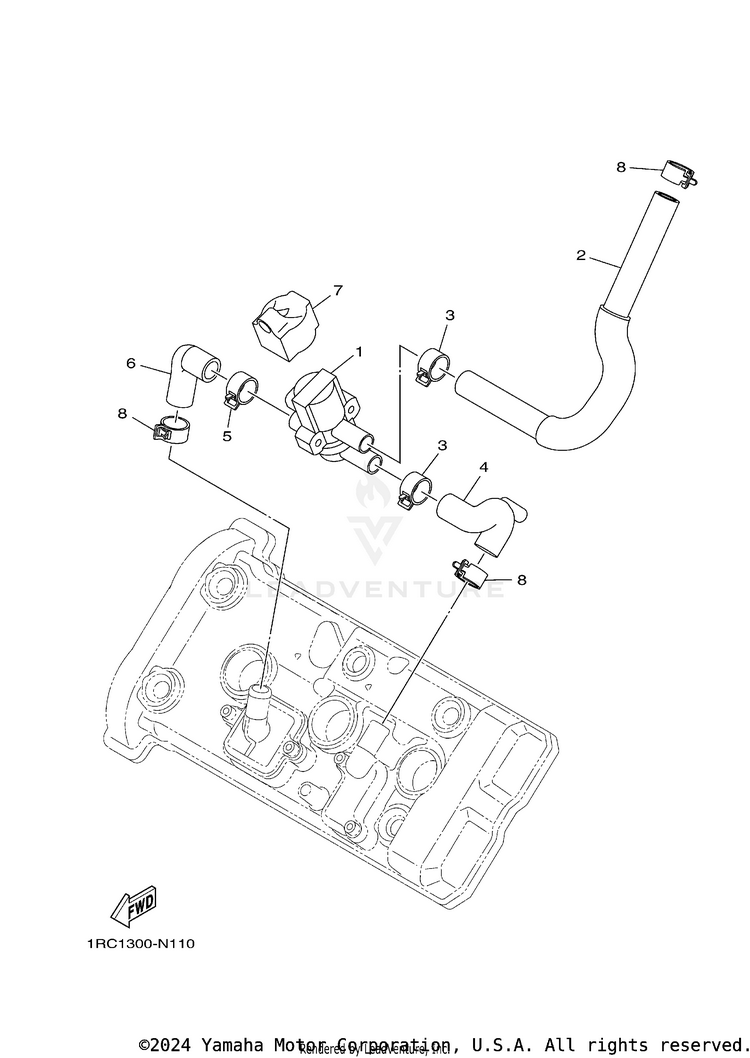

AIR INDUCTION SYSTEM

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-14840-00-00AIR CUT VALVE ASSY$200.99$156.77Usually ships in 7-10 business days
21RC-14881-00-00HOSE, BEND 1$18.99$15.57Usually ships in 7-10 business days
390467-17128-00

(replaces part #
90467-17089-00)

CLIP$9.49$7.4010+ In-Stock
41RC-14882-00-00HOSE, BEND 2$11.99$9.83Usually ships in 7-10 business days
590467-17128-00

(replaces part #
90467-17089-00)

CLIP$9.49$7.4010+ In-Stock
61RC-14883-00-00HOSE, BEND 3$10.99$9.01Usually ships in 7-10 business days
71RC-1445C-00-00HOLDER$5.49$4.94Usually ships in 7-10 business days
890467-17003-00CLIP$6.49$5.84Usually ships in 7-10 business days
