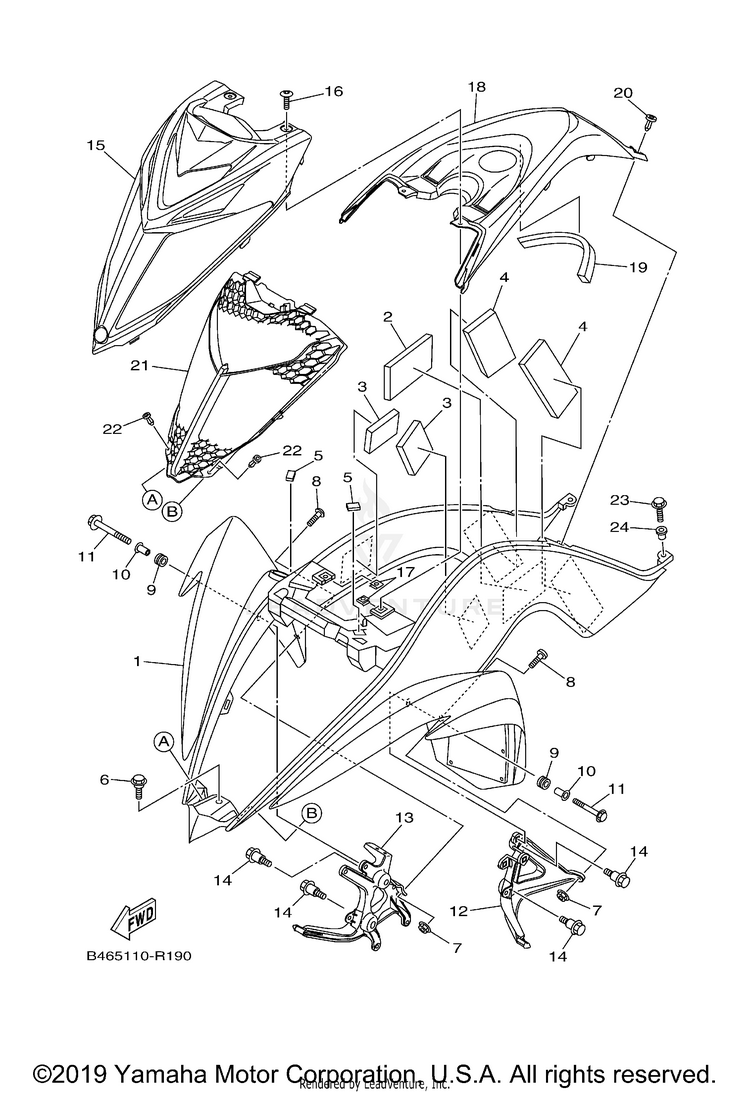

2019 Yamaha RAPTOR 700 Front Fender OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1PE-F1500-K0-00	FRONT FENDER ASSY	$233.99	$223.51	Usually ships in 7-10 business days
2	5Y1-82122-00-00 (replaces part # 12R-21747-00-00)	SEAT, BATTERY	$8.49	$6.62	7 In-Stock
3	1S3-21541-00-00	DAMPER 1	$8.49	$6.62	4 In-Stock
4	3Y0-24183-00-00	DAMPER, LOCATING 3	$25.99	$20.27	7 In-Stock
5	3B4-21541-00-00	DAMPER 1	$4.55	$3.91	3 In-Stock
6	90109-06172-00	BOLT	$3.50	$3.50	10+ In-Stock
7	95604-06200-00 (replaces part # 95602-06200-00)	NUT, U FLANGE	$2.95	$2.54	10+ In-Stock
8	90111-06137-00	BOLT, HEX. SOCKET BUTTON	$6.49	$5.06	10+ In-Stock
9	90480-14023-00 (replaces part # 90480-14102-00)	GROMMET	$8.49	$6.62	10+ In-Stock
10	90387-06136-00	COLLAR	$8.49	$6.62	10+ In-Stock
11	95817-06025-00 (replaces part # 95812-06025-00)	BOLT, FLANGE	$5.49	$4.28	10+ In-Stock
12	1PE-F1513-01-00	STAY, FENDER 1	$15.49	$12.08	6 In-Stock
13	1PE-F1514-01-00	STAY, FENDER 2	$17.99	$14.03	7 In-Stock
14	90109-06214-00	BOLT	$8.49	$6.62	10+ In-Stock
15	1PE-F3391-60-00	PANEL, FRONT	$43.99	$36.07	Usually ships in 7-10 business days
16	90111-06814-00	BOLT, HEX. SOCKET BUTTON	$2.00	$1.90	10+ In-Stock
17	90183-06069-00 (replaces part # 90183-06053-00)	NUT, SPRING	$7.49	$5.84	10+ In-Stock
18	1PE-F171A-60-00	COVER, TOP	$44.99	$36.89	Usually ships in 7-10 business days
19	90520-20001-00	DAMPER, PLATE	$6.49	$5.06	2 In-Stock
20	90269-06002-00	RIVET	$9.49	$7.40	10+ In-Stock
21	1PE-E2467-00-00	COVER, RADIATOR	-	$21.59	10+ In-Stock
22	90269-06002-00	RIVET	$9.49	$7.40	10+ In-Stock
23	90105-06084-00	BOLT, FLANGE	$4.95	$4.26	10+ In-Stock
24	90387-06146-00	COLLAR	$9.49	$7.40	10+ In-Stock
