2019 Yamaha RAPTOR 90 Generator OEM Parts Diagram

Submodel RAPTOR 90 - YFM09RYXKL - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

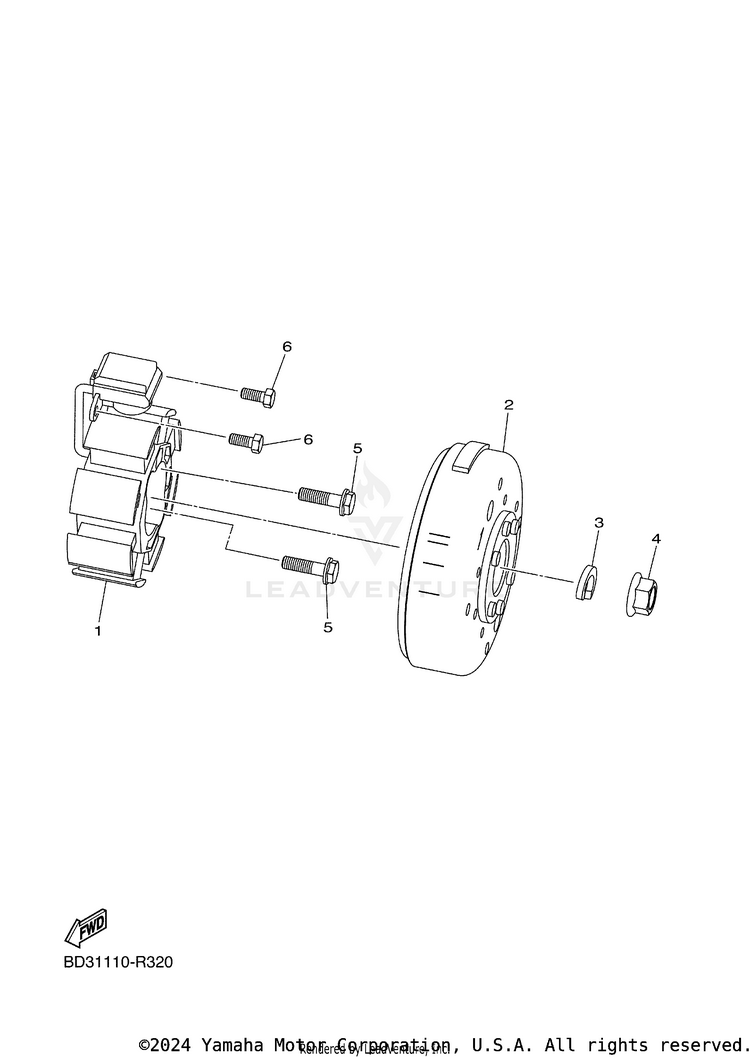

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BD3-H1410-00-00STATOR ASSY$379.99$296.39Usually ships in 7-10 business days
2BD3-H1450-00-00ROTOR ASSY$256.99$203.69Usually ships in 7-10 business days
3BD3-H1554-10-00WASHER$2.40$2.16Usually ships in 7-10 business days
4BD3-H1353-10-00NUT$5.49$4.94Usually ships in 7-10 business days
5BD3-E2157-10-00BOLT$2.95$2.662 In-Stock
6BD3-H1352-10-00BOLT$2.55$2.30Usually ships in 7-10 business days
