2019 Yamaha Tracer 900 Electrical 1 OEM Parts Diagram

Submodel TRACER 900 CA - MTT9KCGY - 2019

Shop Aftermarket Parts

ELECTRICAL 1

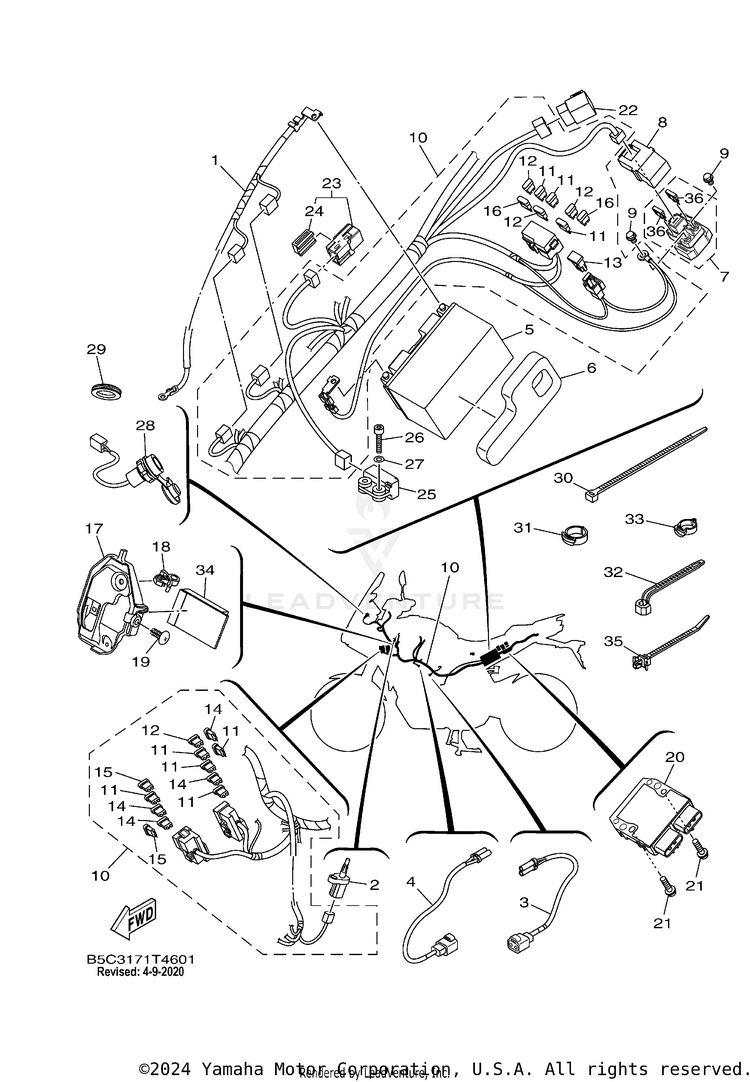

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BS2-82116-00-00WIRE, MINUS LEAD$39.99$32.79Usually ships in 7-10 business days
25YU-85886-00-00SENSOR, AIR TEMPERATURE$37.99$29.6310+ In-Stock
31RC-82309-01-00WIRE, SUB LEAD$24.99$20.49Usually ships in 7-10 business days
41RC-82509-00-00WIRE, SUB LEAD$17.49$14.34Usually ships in 7-10 business days
5YTZ-10S00-00-00

(replaces part #
5VY-82100-00-00)

YTZ10S YUASA BATTER$239.99$224.72Usually ships in 7-10 business days
61RC-8246K-00-00SPACER$12.99$10.65Usually ships in 7-10 business days
72PP-81940-00-00STARTER RELAY ASSY$73.99$57.71Usually ships in 7-10 business days
85SL-82119-30-00COVER, LEAD WIRE$4.80$4.32Usually ships in 7-10 business days
995022-06008-00BOLT, FLANGE$9.49$7.4010+ In-Stock
10B5C-82590-10-00WIRE HARNESS ASSY$950.99$795.68Usually ships in 7-10 business days
115JJ-82151-00-00FUSE (7.5A-BL)$7.49$5.849 In-Stock
1267F-82151-50-00

(replaces part #
5JJ-82151-10-00)

FUSE (15A)$4.15$3.74Usually ships in 7-10 business days
135JW-82151-10-00FUSE (50A)$17.99$14.03
145JJ-82151-80-00FUSE (2A-BL)$8.49$7.642 In-Stock
1567F-82151-40-00

(replaces part #
5JJ-82151-30-00)

FUSE (10A)$7.49$6.743 In-Stock
165JJ-82151-60-00FUSE (30A-BL)$8.49$7.64Usually ships in 7-10 business days
171RC-82599-01-00

(replaces part #
1RC-82599-00-00)

COVER, CONNECTOR$7.49$6.74Usually ships in 7-10 business days
1890464-15157-00CLAMP$9.49$7.407 In-Stock
1990269-07015-00RIVET$2.60$2.34Usually ships in 7-10 business days
201D7-81960-11-00

(replaces part #
1D7-81960-10-00)

RECTIFIER & REGULATOR ASSY$267.99$209.03Usually ships in 7-10 business days
2195022-06025-00BOLT, FLANGE$1.90$1.6310+ In-Stock
225VK-81950-43-00

(replaces part #
5VK-81950-40-00)

RELAY ASSY (G8R-30Y-W4)$71.99$56.157 In-Stock
231ST-81950-00-00RELAY ASSY (1ST-00)$19.99$15.5910+ In-Stock
245JJ-81952-00-00HOLDER, RELAY$10.99$8.574 In-Stock
255PS-82576-02-00

(replaces part #
5PS-82576-01-00)

SENSOR, LEAN ANGLE$96.99$75.658 In-Stock
2691312-04020-00BOLT, HEXAGON SOCKET HEAD$2.65$2.38Usually ships in 7-10 business days
2790201-04030-00WASHER, PLATE$2.40$2.0610+ In-Stock
282SC-8254B-00-00TERMINAL COMP.$75.99$59.27Usually ships in 7-10 business days
292BS-24747-00-00DAMPER, SEAT$5.49$4.942 In-Stock
303MA-82591-00-00CLAMP$10.99$9.01Usually ships in 7-10 business days
3190464-14010-00CLAMP | FOR CAL$3.65$3.28Usually ships in 7-10 business days
3190464-16001-00CLAMP | FOR U49$2.39$2.15Usually ships in 7-10 business days
3290464-15195-00

(replaces part #
90464-13073-00)

CLAMP | (125.0x7.0)$4.41$3.7910+ In-Stock
3390464-14010-00CLAMP$3.65$3.28Usually ships in 7-10 business days
341RC-82589-00-00PROTECTER, WIRE HARNESS$23.99$19.67Usually ships in 7-10 business days
3590464-27002-00CLAMP$0.90$0.81Usually ships in 7-10 business days
362GV-82151-00-00

(replaces part #
2GH-82151-00-00)

FUSE (20A-BL)$5.99$4.6710+ In-Stock
