2019 Yamaha TTR 50E Side Cover OEM Parts Diagram

Submodel TTR50E - TTR50EK - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SIDE COVER

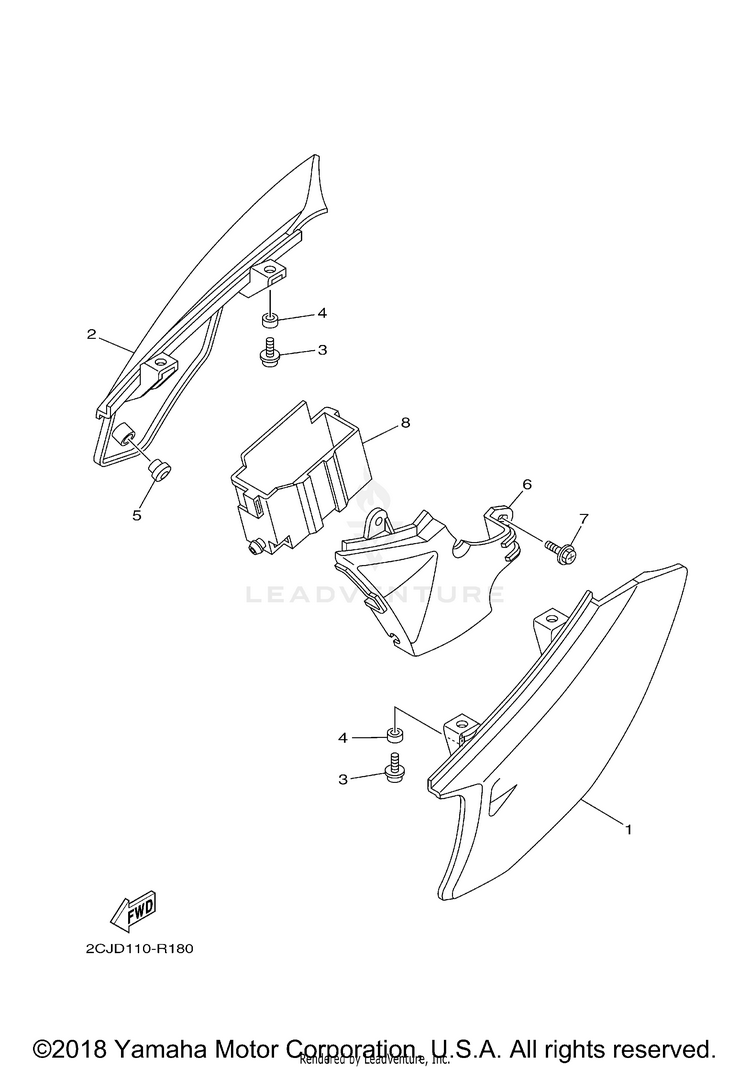

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11P6-F1711-00-00COVER, SIDE 1$47.99$37.435 In-Stock
21P6-F1721-00-00COVER, SIDE 2$46.99$36.651 In-Stock
390159-06182-00

(replaces part #
90159-06830-00)

SCREW, WITH WASHER$10.49$8.187 In-Stock
490387-07808-00COLLAR$8.49$6.625 In-Stock
51P6-F1717-00-00DAMPER$4.10$3.531 In-Stock
61P6-H2129-01-00

(replaces part #
1P6-H2129-00-00)

COVER, BATTERY$18.99$14.8110+ In-Stock
790159-06864-00SCREW, WITH WASHER$1.45$1.30Not Shipping
81P6-F172W-10-00

(replaces part #
1P6-F172W-00-00)

COVER$21.99$17.156 In-Stock
