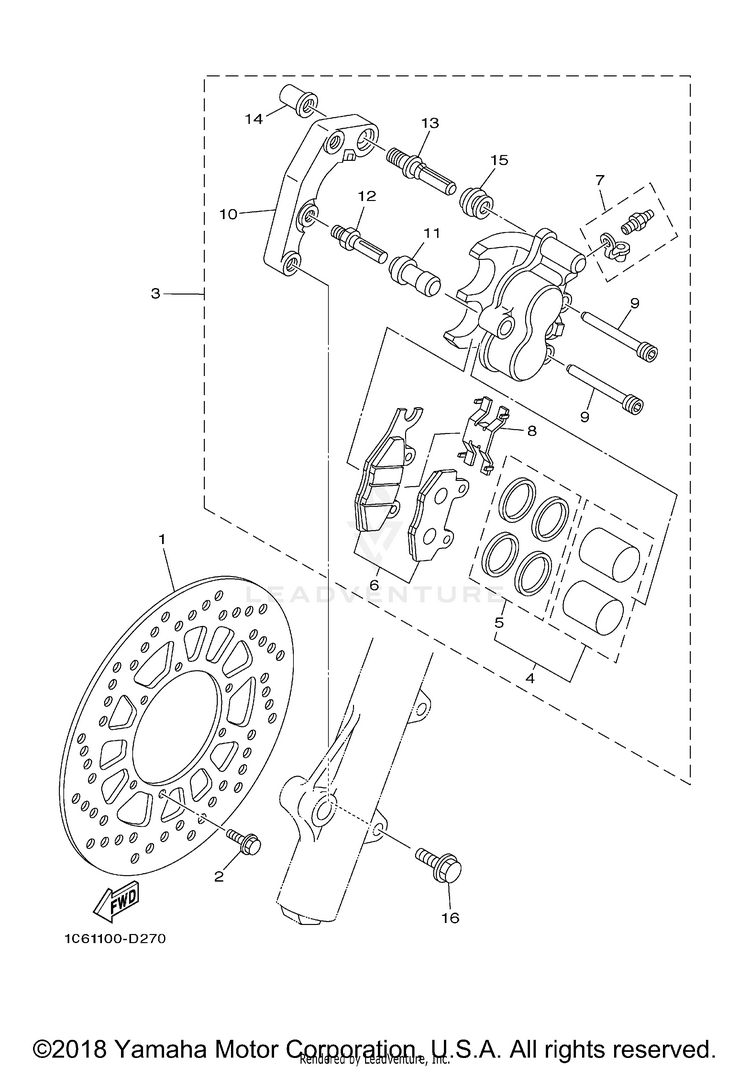

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XT-2582T-00-00

(replaces part #
5RM-F582T-00-00)

DISC, BRAKE (LEFT)$100.99$78.774 In-Stock
290105-06109-00

(replaces part #
90105-06813-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
35RM-F580T-10-00CALIPER ASSY (LEFT)-$291.83Usually ships in 7-10 business days
45RM-F5802-00-00PISTON ASSY, CALIPER$50.99$39.77Usually ships in 7-10 business days
55RM-F5803-00-00CALIPER SEAL KIT$12.99$10.65Usually ships in 7-10 business days
65RM-F5805-20-00BRAKE PAD KIT$50.99$39.77Usually ships in 7-10 business days
736Y-W0048-00-00

(replaces part #
5HH-W0048-00-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
85HH-F5934-00-00SPRING, PAD$29.99$24.59Usually ships in 7-10 business days
95HH-F5924-00-00PIN, PAD$11.49$9.42Usually ships in 7-10 business days
105RM-F5921-00-00BRACKET, SUPPORT$20.99$17.21Usually ships in 7-10 business days
115HH-F5937-00-00BOOT 2$4.55$4.10Usually ships in 7-10 business days
125HH-F5926-51-00BOLT$2.85$2.56Usually ships in 7-10 business days
135HH-F536G-00-00PIN$8.49$7.64Usually ships in 7-10 business days
143JD-25961-00-00

(replaces part #
5HH-F5961-00-00)

NUT$9.49$7.40Not Shipping
155HH-F5917-00-00BOOT, CALIPER$3.50$3.15Usually ships in 7-10 business days
1690105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
