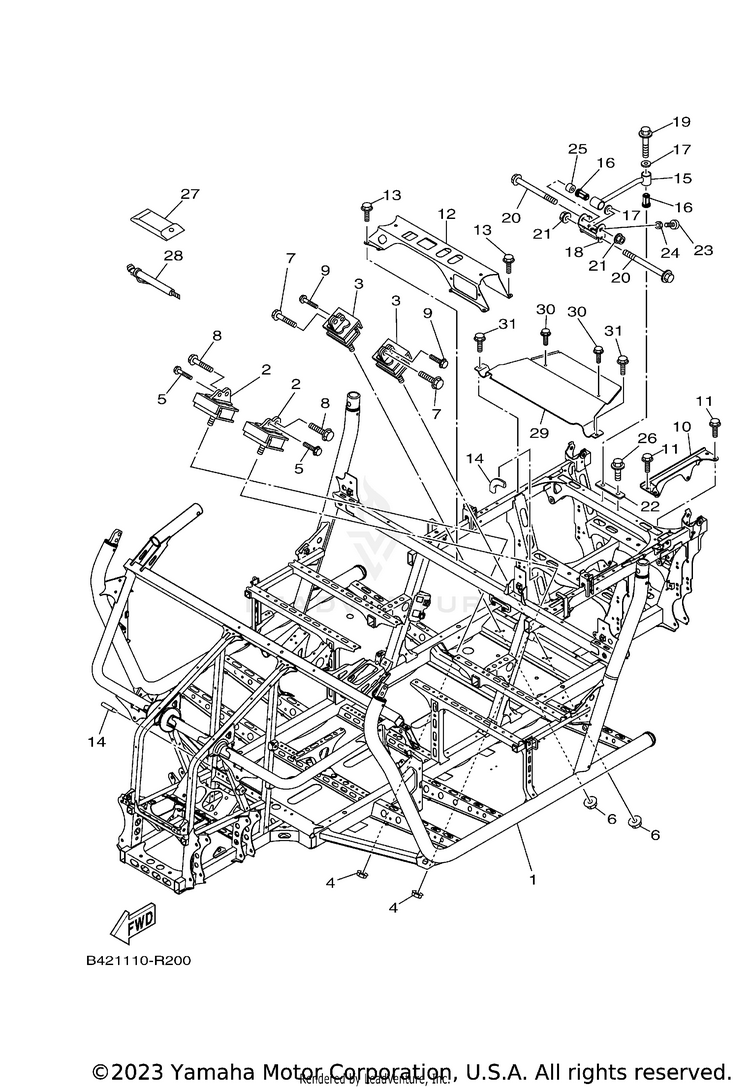

2019 Yamaha Viking 700 FI 4x4 Frame OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	B42-F1110-00-00	FRAME COMP.	$1,952.99	$1,708.36	Usually ships in 7-10 business days
2	2PG-21485-00-00	DAMPER, RUBBER 1	$33.99	$27.87	Usually ships in 7-10 business days
3	5B4-21485-01-00	DAMPER, RUBBER 1	$124.99	$97.49	7 In-Stock
4	90185-10011-00	NUT, SELF-LOCKING	$4.95	$4.26	10+ In-Stock
5	95024-06016-00 (replaces part # 90105-06639-00)	BOLT, FLANGE (SMALL HEAD)	$9.49	$7.40	7 In-Stock
6	90185-10011-00	NUT, SELF-LOCKING	$4.95	$4.26	10+ In-Stock
7	95812-10035-00	BOLT, FLANGE	$6.49	$5.06	4 In-Stock
8	90105-10314-00	BOLT, FLANGE	$9.49	$8.54	Usually ships in 7-10 business days
9	95024-06016-00 (replaces part # 90105-06639-00)	BOLT, FLANGE (SMALL HEAD)	$9.49	$7.40	7 In-Stock
10	2PG-F831T-00-00	STAY, SUPPORT 1	$17.49	$14.34	Usually ships in 7-10 business days
11	95817-08016-00 (replaces part # 95812-08016-00)	BOLT,FLANGE (JN5)	$5.49	$4.28	10+ In-Stock
12	1XD-F834V-00-00	PROTECTOR 1	$33.99	$27.87	Usually ships in 7-10 business days
13	90105-08867-00	BOLT, FLANGE	$1.95	$1.76	5 In-Stock
14	4XY-28347-00-00	MOLE 3	$8.49	$7.64	Usually ships in 7-10 business days
15	B42-F1315-02-00	STAY, ENGINE 1	$31.99	$26.23	5 In-Stock
16	5UH-E5336-00-00	DAMPER, ENGINE MOUNT 3	$21.99	$17.15	10+ In-Stock
17	5ND-F1486-00-00	DAMPER 2	$11.99	$9.35	9 In-Stock
18	B42-F1121-01-00	BRACKET, DAMPER	$20.99	$16.37	6 In-Stock
19	95817-10070-00 (replaces part # 95812-10070-00)	BOLT, FLANGE	$6.49	$5.06	6 In-Stock
20	95812-10100-00	BOLT, FLANGE	$6.49	$5.06	10+ In-Stock
21	95602-10200-00	NUT, S/L FLANGE	$2.70	$2.32	10+ In-Stock
22	B42-F1158-00-00	BRACKET	$5.49	$4.28	5 In-Stock
23	98580-06020-00 (replaces part # 98502-06020-00)	SCREW, PAN HEAD	$9.49	$7.40	5 In-Stock
24	95380-06700-00 (replaces part # 95302-06700-00)	NUT	$9.49	$7.40	4 In-Stock
25	B42-F1116-00-00	COLLAR	$8.49	$6.62	5 In-Stock
26	95817-10020-00 (replaces part # 95812-10020-00)	BOLT, FLANGE	$9.49	$7.40	10+ In-Stock
27	5B4-F8100-00-00	TOOL KIT	$47.99	$39.35	Usually ships in 7-10 business days
28	1XD-F811A-00-00	GAUGE, AIR	$7.49	$6.74	Usually ships in 7-10 business days
29	1XD-F2898-21-00	INSULATOR, HEAT	$42.99	$35.25	Usually ships in 7-10 business days
30	90105-08867-00	BOLT, FLANGE	$1.95	$1.76	5 In-Stock
31	90105-08867-00	BOLT, FLANGE	$1.95	$1.76	5 In-Stock
