2019 Yamaha Viking VI 700 4x4 Seat 2 OEM Parts Diagram

Submodel VIKING VI EPS HUNTER - YXC70VPHKH - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

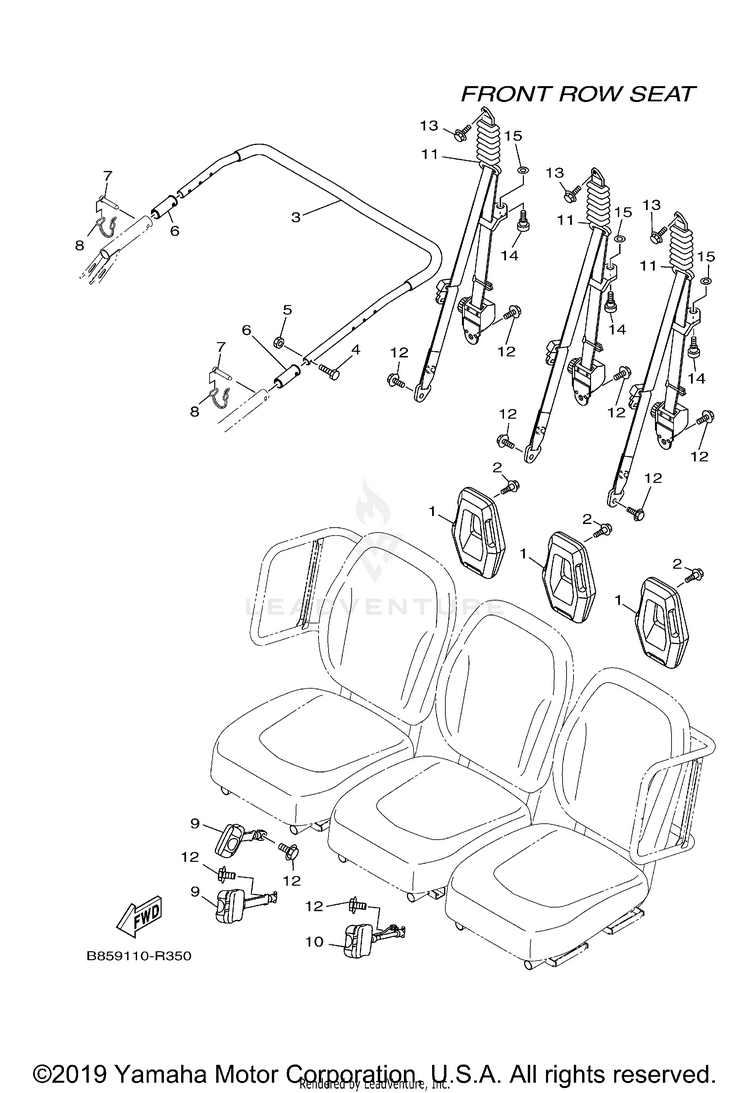

SEAT 2

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12PG-F472L-00-00HEAD REST$42.99$35.25Usually ships in 7-10 business days
290109-06079-00BOLT$3.20$2.88Usually ships in 7-10 business days
31XD-F470J-00-00ASSIST GRIP ASSY., 1$151.99$118.55Usually ships in 7-10 business days
490101-06824-00BOLT$1.60$1.582 In-Stock
595617-06100-00

(replaces part #
95612-06100-00)

NUT, U$2.90$2.4910+ In-Stock
61XD-F467K-00-00BUSH, CAP$2.40$2.16Usually ships in 7-10 business days
71XD-F5926-00-00BOLT$2.90$2.61Usually ships in 7-10 business days
81XD-F311F-00-00SNAP, PIN$8.49$7.64Usually ships in 7-10 business days
92PG-F470R-00-00FR. BELT RECEIVER ASSY$47.99$39.35Usually ships in 7-10 business days
102PG-F470R-10-00FR. BELT RECEIVER ASSY$105.99$82.67Usually ships in 7-10 business days
11B85-F470L-00-00FR. SEAT BELT ASSY 1$174.99$136.49Usually ships in 7-10 business days
1295812-12020-00BOLT, FLANGE$9.49$7.408 In-Stock
1390111-12002-00BOLT,HEX. SOCKET BUTTON$4.10$3.536 In-Stock
1416B-F3394-01-00BOLT, SPECIAL$2.90$2.495 In-Stock
1590201-11801-00WASHER, PLATE$2.00$1.725 In-Stock
