2019 Yamaha WR450F Generator OEM Parts Diagram

Submodel WR450F - WR450FK - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

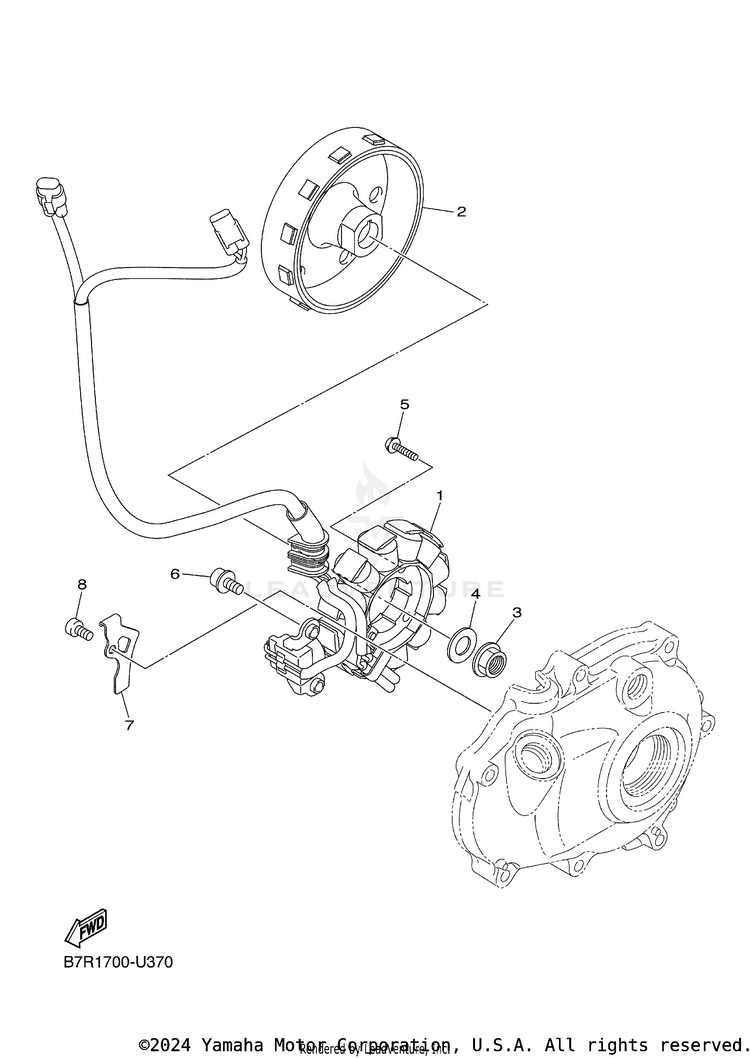

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BR9-81410-03-00

(replaces part #
BR9-81410-00-00)

STATOR ASSY$271.99$220.607 In-Stock
2B7R-81450-01-00

(replaces part #
B7R-81450-00-00)

ROTOR ASSY$457.99$368.503 In-Stock
390179-12657-00NUT$6.49$5.0610+ In-Stock
490201-127E1-00WASHER, PLATE$4.65$4.0010+ In-Stock
590149-05024-00

(replaces part #
90149-05040-00)

SCREW$9.49$7.4010+ In-Stock
690110-06248-00

(replaces part #
90110-06401-00)

BOLT, HEXAGON SOCKET HEAD$4.05$3.488 In-Stock
7BR9-81528-00-00CLAMP 1$3.35$2.883 In-Stock
891312-05010-00

(replaces part #
90110-05003-00)

BOLT, HEXAGON SOCKET HEAD$6.49$5.067 In-Stock
