2019 Yamaha YZF-R1M Front Brake Caliper OEM Parts Diagram

Submodel YZFR1 - YZFR1MK - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

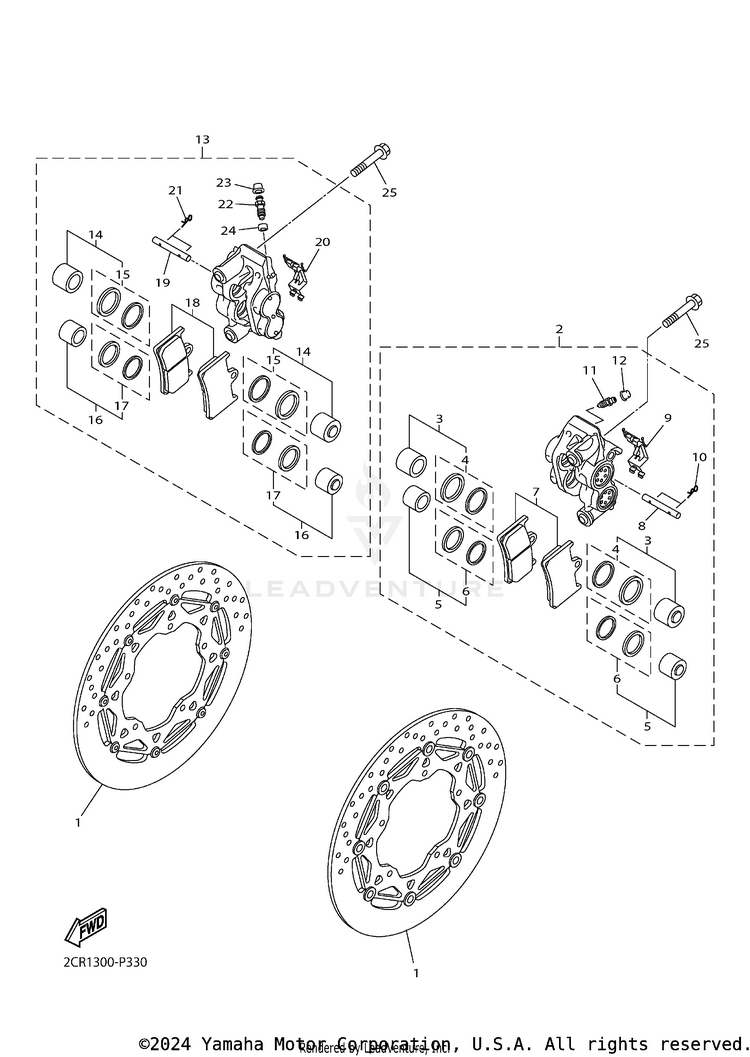

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12CR-2581T-00-00DISC BRAKE ASSY | BLACK$264.99$208.73Usually ships in 7-10 business days
22KS-2580T-00-00CALIPER ASSY (LEFT)$718.99$602.08Usually ships in 7-10 business days
35PW-25802-00-00PISTON ASSY, CALIPER | 6 SIZE$105.99$82.67Usually ships in 7-10 business days
45PW-25803-00-00CALIPER SEAL KIT | 6 SIZE$18.99$14.8110+ In-Stock
55PW-25802-10-00PISTON ASSY, CALIPER | 4 SIZE$105.99$82.67Usually ships in 7-10 business days
65PW-25803-10-00CALIPER SEAL KIT | 4 SIZE$18.99$14.815 In-Stock
72C0-25805-00-00BRAKE PAD KIT$65.99$51.479 In-Stock
AFTERMARKET ALTERNATIVE
$25.95$25.1610+ In-Stock
84SV-25924-00-00PIN, PAD$46.99$36.656 In-Stock
913S-25919-00-00SUPPORT, PAD$30.99$25.415 In-Stock
103GM-25925-00-00CLIP$12.99$10.136 In-Stock
111J3-25824-00-00SCREW, BLEED$5.99$5.39Usually ships in 7-10 business days
12306-25825-01-00CAP$10.99$9.016 In-Stock
132KS-2580U-00-00CALIPER ASSY (RIGHT)$718.99$602.08Usually ships in 7-10 business days
145PW-25802-00-00PISTON ASSY, CALIPER | 6 SIZE$105.99$82.67Usually ships in 7-10 business days
155PW-25803-00-00CALIPER SEAL KIT | 6 SIZE$18.99$14.8110+ In-Stock
165PW-25802-10-00PISTON ASSY, CALIPER | 4 SIZE$105.99$82.67Usually ships in 7-10 business days
175PW-25803-10-00CALIPER SEAL KIT | 4 SIZE$18.99$14.815 In-Stock
182C0-25805-00-00BRAKE PAD KIT$65.99$51.479 In-Stock
AFTERMARKET ALTERNATIVE
$25.95$25.1610+ In-Stock
194SV-25924-00-00PIN, PAD$46.99$36.656 In-Stock
2013S-25919-00-00SUPPORT, PAD$30.99$25.415 In-Stock
213GM-25925-00-00CLIP$12.99$10.136 In-Stock
225VS-25824-00-00SCREW, BLEED$45.99$37.71Usually ships in 7-10 business days
23306-25825-01-00CAP$10.99$9.016 In-Stock
245VS-25975-00-00RUBBER, BUSHING$4.20$3.78Usually ships in 7-10 business days
2590105-10397-00BOLT, FLANGE$13.49$11.06Usually ships in 7-10 business days
