2019 Yamaha YZF-R3 Oil Pump OEM Parts Diagram

Submodel YZFR3 - YZFR3KL - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

OIL PUMP

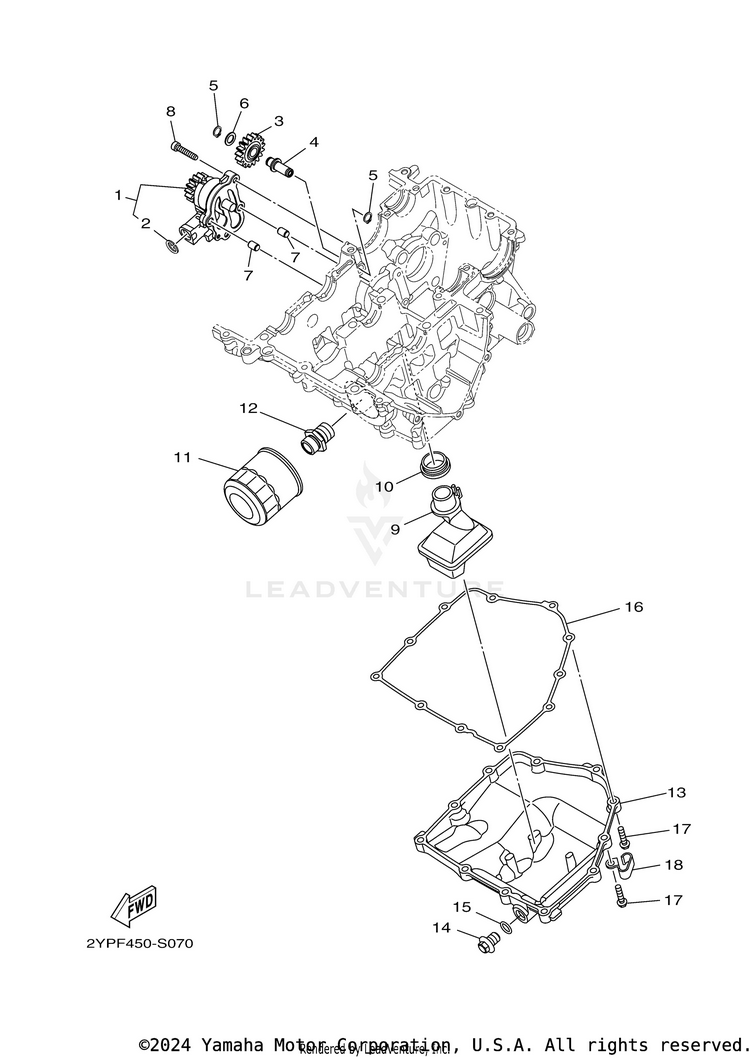

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WD-E3300-01-00OIL PUMP ASSY$62.99$49.13Usually ships in 7-10 business days
299009-15500-00CIRCLIP$11.49$9.42Usually ships in 7-10 business days
31WD-E3341-00-00GEAR, OIL PUMP IDLE$23.99$19.67Usually ships in 7-10 business days
41WD-E3342-00-00SHAFT, IDLE GEAR$23.99$20.99Usually ships in 7-10 business days
599009-10400-00CIRCLIP$5.49$4.2810+ In-Stock
690201-10119-00WASHER, PLATE$1.00$0.8610+ In-Stock
799530-08012-00PIN, DOWEL$6.99$5.4510+ In-Stock
891332-06030-00BOLT$0.35$0.32Usually ships in 7-10 business days
91WD-E3410-00-00STRAINER HOUSING ASSY$64.99$51.52Usually ships in 7-10 business days
101WD-E3415-00-00SEAL, OIL STRAINER$3.35$3.02Usually ships in 7-10 business days
111WD-E3440-21-00

(replaces part #
1WD-E3440-10-00)

ELEMENT ASSY, OIL CLEANER$16.49$12.867 In-Stock
1290401-20008-00BOLT, UNION$25.99$21.31Usually ships in 7-10 business days
131WD-E3417-01-00

(replaces part #
1WD-E3417-00-00)

COVER, STRAINER$41.99$34.43Usually ships in 7-10 business days
1490340-12808-00PLUG, STRAIGHT SCREW-$3.526 In-Stock
15812-11198-00-00

(replaces part #
4YS-E1198-00-00)

GASKET$7.49$5.8410+ In-Stock
161WD-E3414-00-00GASKET, STRAINER COVER$10.49$8.60Usually ships in 7-10 business days
1795022-06025-00BOLT, FLANGE$1.90$1.6310+ In-Stock
1890462-08810-00CLAMP$3.50$3.15Usually ships in 7-10 business days
