2020 Yamaha GRIZZLY 700 4x4 Steering Handle Cable OEM Parts Diagram

Submodel GRIZZLY EPS SPECIAL - YFM70GPSLS - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING HANDLE CABLE

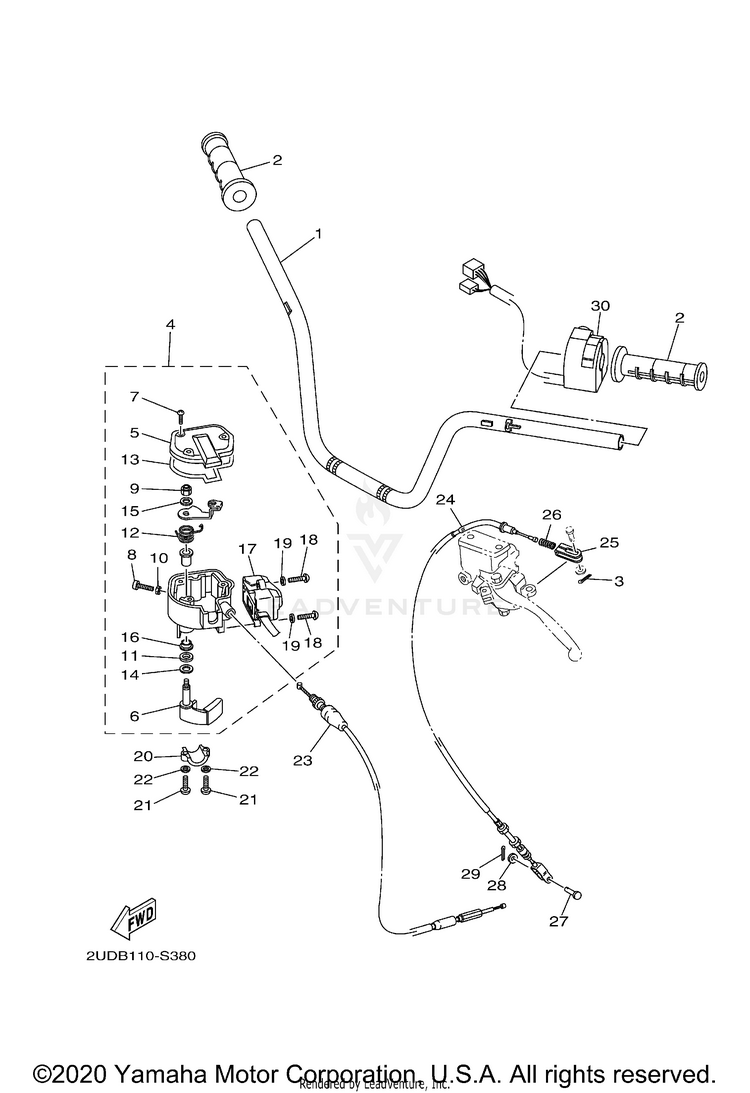

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11HP-F6111-01-00HANDLEBAR$70.99$65.374 In-Stock
25FU-F6241-10-00GRIP$18.99$14.8110+ In-Stock
391490-16020-00

(replaces part #
91401-16012-00)

PIN, COTTER$6.99$5.456 In-Stock
41HP-26250-04-00

(replaces part #
1HP-26250-01-00)

THROTTLE LEVER ASSY$150.99$117.77Usually ships in 7-10 business days
528P-2628F-00-00CAP, GEAR$38.99$30.411 In-Stock
628P-2625G-01-00

(replaces part #
28P-2625G-00-00)

LEVER, THROTTLE$60.99$47.57Usually ships in 7-10 business days
790149-04278-00SCREW$0.95$0.8210+ In-Stock
898517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
995617-05100-00

(replaces part #
95602-05100-00)

NUT, U$10.49$8.1810+ In-Stock
1095317-05700-00

(replaces part #
95307-05700-00)

NUT$9.49$7.402 In-Stock
1193104-09025-00OIL SEAL$8.49$6.623 In-Stock
121NV-26304-00-00SPRING$12.99$10.133 In-Stock
1328P-2628G-00-00GASKET$8.49$7.64Usually ships in 7-10 business days
141NV-26129-00-00WASHER$7.49$5.842 In-Stock
1553L-83909-00-00

(replaces part #
1NV-26398-00-00)

WASHER, SPECIAL$4.55$3.91Not Shipping
161NV-2625K-00-00COLLAR$7.49$5.842 In-Stock
171HP-83976-06-00

(replaces part #
1HP-83976-08-00)

SWITCH, HANDLE 1$110.99$86.579 In-Stock
1898580-04014-00

(replaces part #
98502-04016-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
1992990-04600-00

(replaces part #
92902-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
201S3-82913-00-00HOLDER, LEVER LOWER 1$15.49$12.085 In-Stock
2198517-05020-00

(replaces part #
98502-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
2292990-05600-00

(replaces part #
92902-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
23B4F-26311-00-00CABLE, THROTTLE 1$26.99$22.13Usually ships in 7-10 business days
243B4-26341-00-00WIRE, BRAKE 1$41.99$32.755 In-Stock
253B4-26347-00-00JOINT, CABLE$8.49$7.64Usually ships in 7-10 business days
2690501-08665-00SPRING, COMPRESSION$2.55$2.30Usually ships in 7-10 business days
2790240-06076-00PIN, CLEVIS$9.49$7.404 In-Stock
2892907-06200-00WASHER$9.49$7.4010+ In-Stock
2991490-20015-00

(replaces part #
91401-20012-00)

PIN. COTTER$2.20$1.8910+ In-Stock
3028P-83972-01-00

(replaces part #
28P-83972-00-00)

SWITCH, HANDLE 4$134.99$110.66Usually ships in 7-10 business days
