2020 Yamaha MT-09 Steering Handle & Cable OEM Parts Diagram

Submodel MT09 CA - MT09LCB - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING HANDLE & CABLE

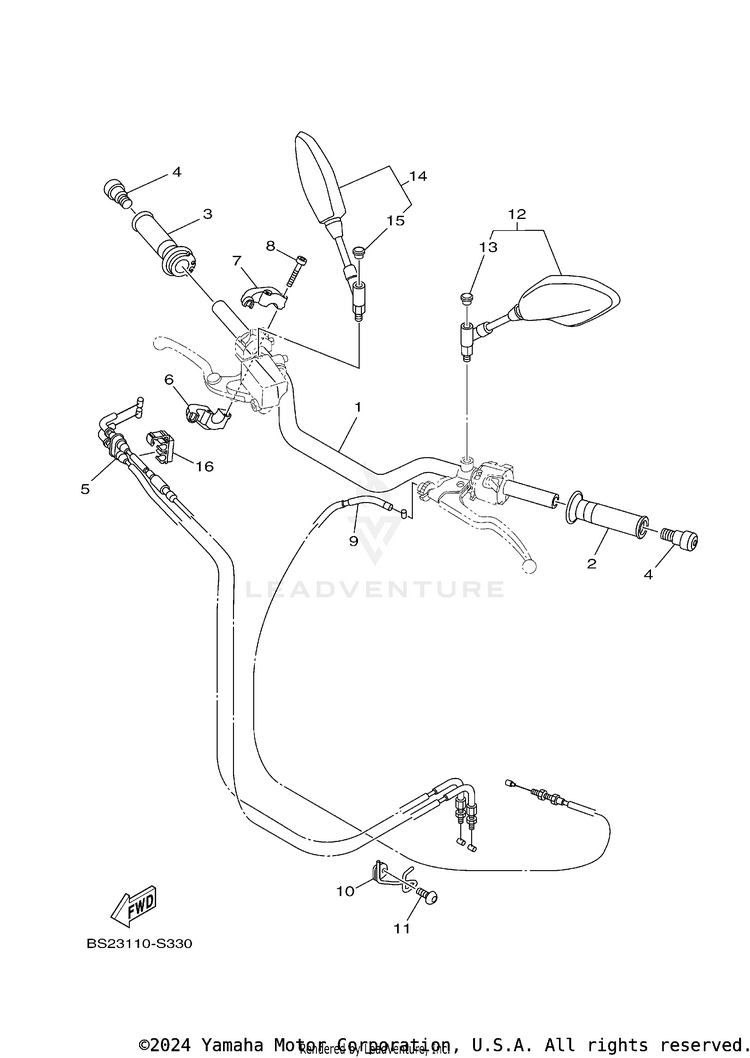

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11RC-26111-00-00HANDLEBAR$272.99$212.93Usually ships in 7-10 business days
24YR-26241-03-00

(replaces part #
4YR-26241-02-00)

GRIP$12.99$10.135 In-Stock
34YR-26240-03-00

(replaces part #
4YR-26240-02-00)

GRIP ASSY$33.99$26.516 In-Stock
45GJ-26246-00-00END, GRIP$31.99$24.952 In-Stock
51RC-26302-00-00THROTTLE CABLE ASSY$56.99$44.451 In-Stock
64KG-26281-00-00CAP GRIP$34.99$28.69Usually ships in 7-10 business days
73XW-26282-01-00CAP, GRIP LOWER$34.99$28.69Usually ships in 7-10 business days
891317-05035-00BOLT, HEX. SOCKET HEAD$9.49$8.54Usually ships in 7-10 business days
91RC-26335-01-00CABLE, CLUTCH$55.99$43.672 In-Stock
10BS2-23857-00-00HOLDER$16.49$13.52Usually ships in 7-10 business days
1192017-06010-00BOLT, BUTTON HEAD$5.49$4.283 In-Stock
121RC-26280-19-00

(replaces part #
1RC-26280-10-00)

REAR VIEW MIRROR A$137.99$107.63Usually ships in 7-10 business days
1323P-26133-00-00CAP$7.49$5.846 In-Stock
141RC-26290-19-00

(replaces part #
1RC-26290-10-00)

REAR VIEW MIRROR ASSY (RIGHT)$124.99$97.49Usually ships in 7-10 business days
1523P-26133-00-00CAP$7.49$5.846 In-Stock
1639P-2627E-00-00CLAMP, WIRE$5.99$5.39Usually ships in 7-10 business days
