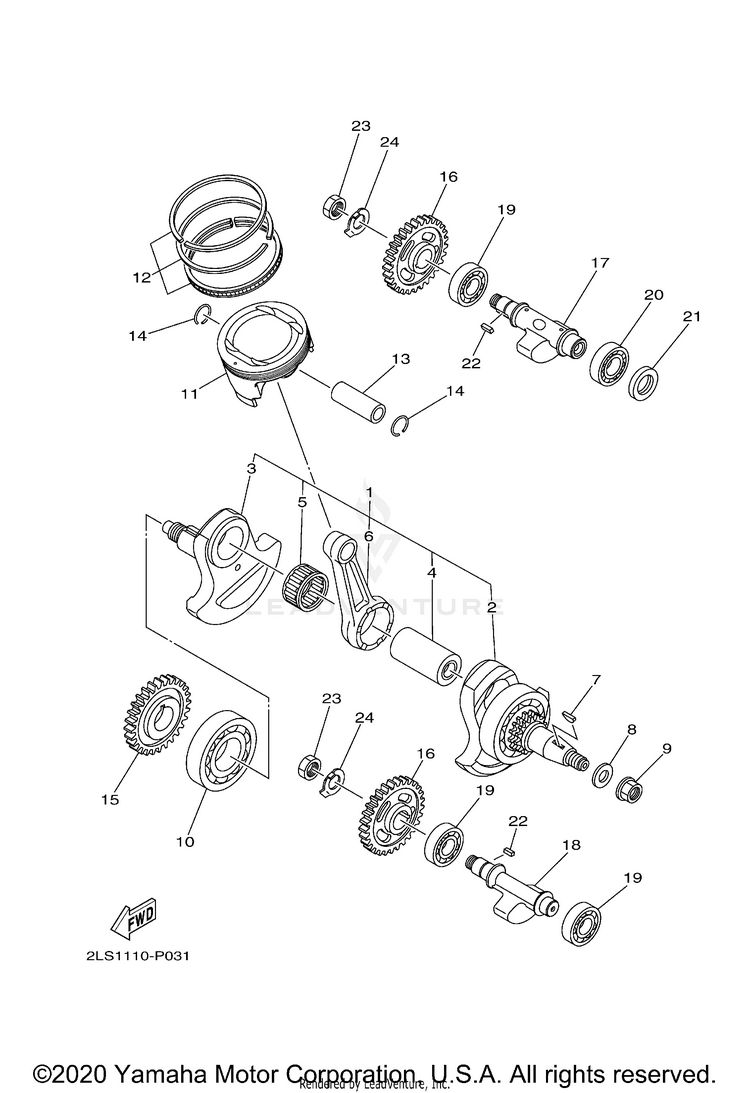

CRANKSHAFT PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12LS-11400-10-00

(replaces part #
2LS-11400-00-00)

CRANKSHAFT ASSY$613.99$497.80Not Shipping
21S3-11401-09-00CRANK SUB ASSY 1$428.99$353.83Usually ships in 7-10 business days
31S3-11422-00-00CRANK 2$325.99$254.27Usually ships in 7-10 business days
41S3-11681-00-00PIN, CRANK 1$111.99$87.351 In-Stock
593310-84037-00BEARING$90.99$70.97Usually ships in 7-10 business days
62BG-11651-00-00ROD, CONNECTING$158.99$124.01Usually ships in 7-10 business days
790280-05001-00KEY, WOODRUFF$13.49$10.5210+ In-Stock
890201-16013-00WASHER, PLATE$15.49$12.081 In-Stock
990179-16004-00NUT$17.49$13.646 In-Stock
1093306-30810-00BEARING$82.99$64.7310+ In-Stock
112BG-11631-00-00PISTON (STD)$172.99$134.939 In-Stock
121S3-11603-10-00PISTON RING SET (STD)$66.99$52.2510+ In-Stock
135VK-11633-00-00PIN, PISTON$45.99$35.8710+ In-Stock
1493450-24154-00CIRCLIP$3.40$2.9210+ In-Stock
151S3-11536-10-00GEAR, DRIVE$126.99$99.05Usually ships in 7-10 business days
161S3-11531-10-00GEAR, BALANCE WEIGHT$117.99$92.03Usually ships in 7-10 business days
172LS-11454-01-00

(replaces part #
2LS-11454-00-00)

WEIGHT 1$101.99$79.55Usually ships in 7-10 business days
182LS-11464-01-00

(replaces part #
2LS-11464-00-00)

WEIGHT 2$76.99$60.055 In-Stock
1993306-20481-00BEARING$43.99$34.3110+ In-Stock
2093306-00519-00

(replaces part #
93306-00502-00)

BEARING$39.99$31.1910+ In-Stock
2193101-25106-00OIL SEAL$12.49$9.747 In-Stock
2290282-05005-00KEY, STRAIGHT$11.49$8.9610+ In-Stock
2390170-16326-00NUT$14.49$11.305 In-Stock
2490215-16221-00WASHER, LOCK$12.49$9.7410+ In-Stock
