2020 Yamaha V-Star 250 XV250 Crankcase OEM Parts Diagram

Submodel V STAR 250 - XV250L1C - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

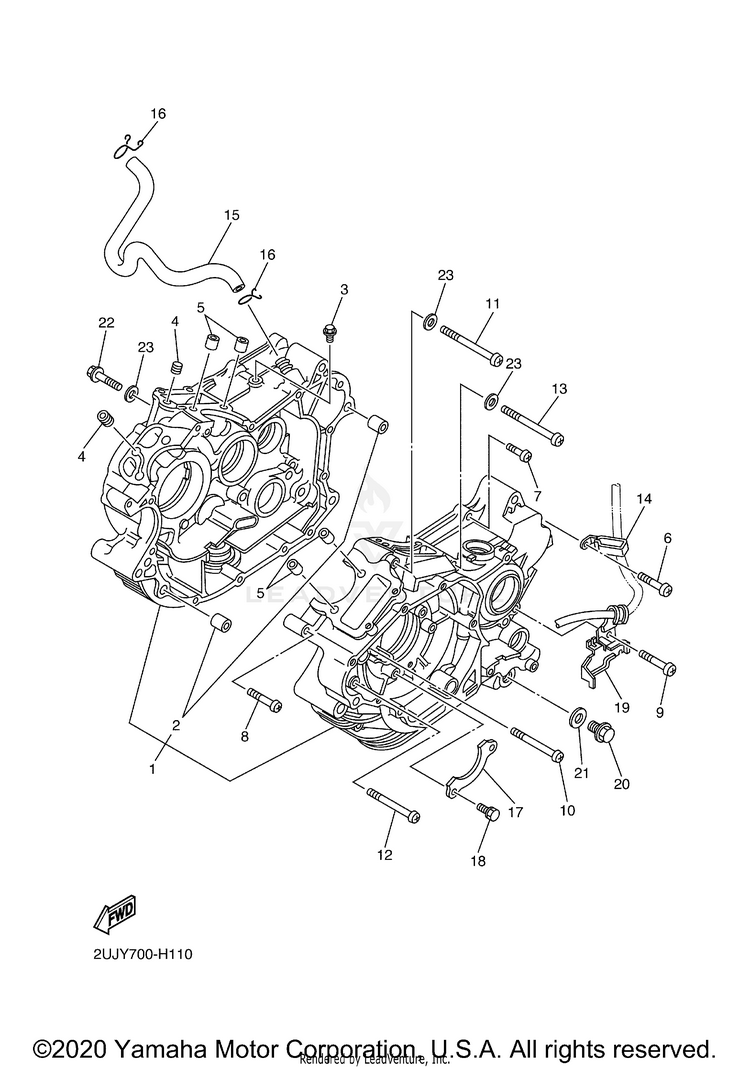

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12UJ-15100-03-00CRANKCASE ASSY | SL$890.99$722.40Usually ships in 7-10 business days
299530-12016-00PIN, DOWEL$4.89$4.2110+ In-Stock
395817-06012-00

(replaces part #
90105-06048-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
42UJ-15138-00-00NOZZLE 1$4.60$4.14Usually ships in 7-10 business days
599530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
697885-06030-00

(replaces part #
98504-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
797885-06030-00

(replaces part #
98504-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
898580-06040-00

(replaces part #
98504-06040-00)

SCREW, PAN HEAD$9.49$7.408 In-Stock
998507-06060-00SCREW, PAN HEAD$7.99$6.238 In-Stock
1098507-06070-00SCREW, PAN HEAD$9.99$7.797 In-Stock
1198580-06570-00

(replaces part #
98504-06070-00)

SCREW, PAN HEAD$20.99$16.372 In-Stock
1298507-06080-00SCREW, PAN HEAD$6.99$5.452 In-Stock
1398504-06080-00SCREW, PAN HEAD$1.95$1.76Usually ships in 7-10 business days
1490465-08277-00CLAMP$12.49$9.742 In-Stock
152UJ-11166-00-00PIPE, BREATHER 1$41.99$34.43Usually ships in 7-10 business days
1690467-14015-00CLIP$9.49$7.407 In-Stock
172UJ-12279-00-00PLATE$9.49$8.54Usually ships in 7-10 business days
1897512-06512-00

(replaces part #
90119-06238-00)

BOLT, WITH WASHER$1.85$1.66Usually ships in 7-10 business days
1990465-08060-00CLAMP$12.49$10.24Usually ships in 7-10 business days
2090340-14132-00PLUG, STRAIGHT SCREW$3.15$2.7110+ In-Stock
21214-11198-01-00GASKET$3.17$2.8910+ In-Stock
2290153-06029-00SCREW, HEXAGON$9.49$7.40
2390430-06014-00GASKET$8.99$7.0110+ In-Stock
