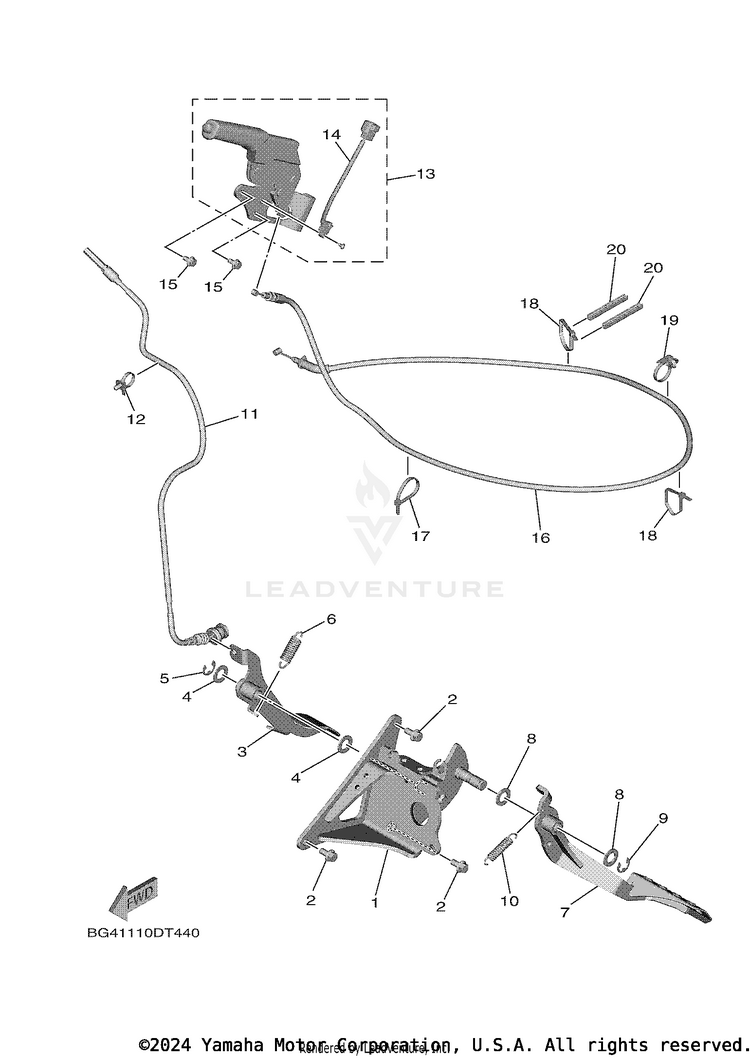

2020 Yamaha Wolverine X2 Pedal Wire OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1XD-F2548-10-00	BRACKET, PEDAL SUPPORT	$66.99	$52.90	Usually ships in 7-10 business days
2	95817-08016-00 (replaces part # 95812-08016-00)	BOLT,FLANGE (JN5)	$5.49	$4.28	10+ In-Stock
3	1XD-F7801-00-00	ACCEL PEDAL ASSY	$17.49	$14.34	Usually ships in 7-10 business days
4	90201-15018-00	WASHER, PLATE	$8.49	$6.62	9 In-Stock
5	93430-12008-00	CIRCLIP, E-TYPE	$9.49	$7.40	10+ In-Stock
6	90506-23023-00	SPRING, TENSION	$5.99	$5.39	Usually ships in 7-10 business days
7	1XD-F7200-00-00	PEDAL, BRAKE	$33.99	$27.87	Usually ships in 7-10 business days
8	90201-15018-00	WASHER, PLATE	$8.49	$6.62	9 In-Stock
9	93430-12008-00	CIRCLIP, E-TYPE	$9.49	$7.40	10+ In-Stock
10	90506-20192-00	SPRING, TENSION	$8.49	$6.62	9 In-Stock
11	BG4-26311-02-00	CABLE, THROTTLE 1	$62.99	$49.13	Usually ships in 7-10 business days
12	5B4-F1338-00-00	CLAMP	$3.60	$3.10	10+ In-Stock
13	BDW-F5690-00-00 (replaces part # 1XD-F5690-01-00)	PARKING LEVER ASSY	$301.99	$235.55	Usually ships in 7-10 business days
14	5UG-H251S-00-00	SWITCH COMP.	$48.99	$40.17	Usually ships in 7-10 business days
15	95817-06012-00 (replaces part # 95812-06012-00)	BOLT, FLANGE	$1.95	$1.77	10+ In-Stock
16	BG4-26341-02-00	WIRE, BRAKE 1	$60.99	$47.57	Usually ships in 7-10 business days
17	90464-40825-00	CLAMP	$3.05	$2.74	Usually ships in 7-10 business days
18	90464-48800-00	CLAMP	$4.90	$4.41	Not Shipping
19	5B4-F1338-00-00	CLAMP	$3.60	$3.10	10+ In-Stock
20	31A-24188-01-00	MOLD, FUEL TANK	$13.99	$11.47	Usually ships in 7-10 business days
