2020 Yamaha WR250F Front Brake Caliper OEM Parts Diagram

Submodel WR250F - WR250FL - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

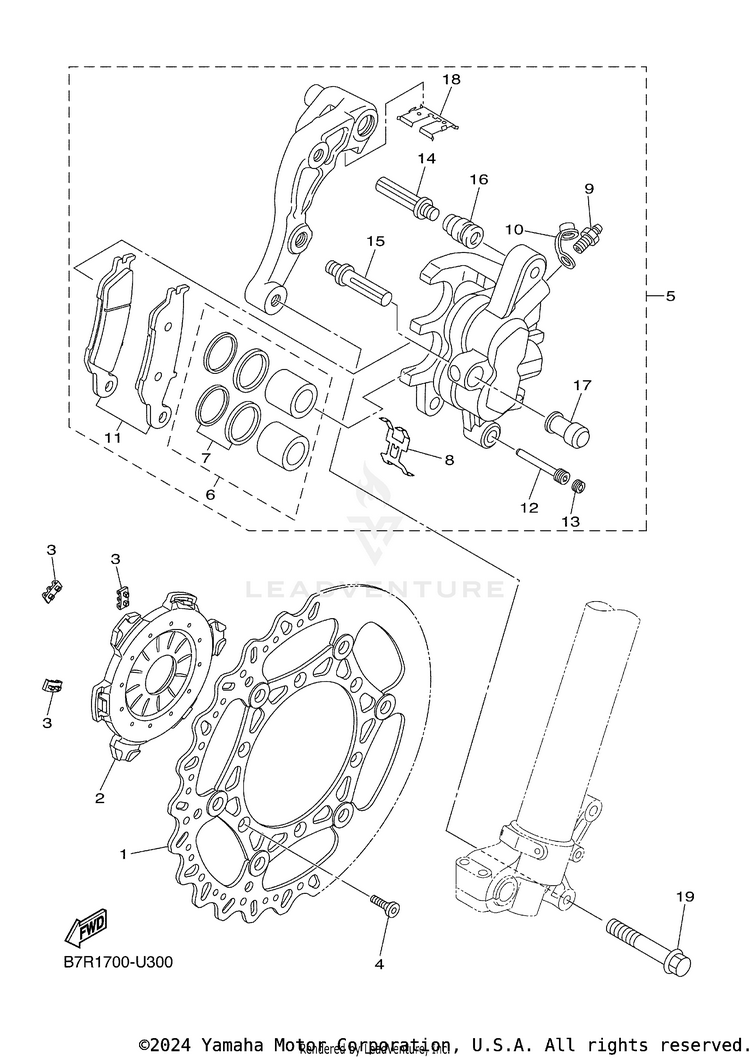

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B11-2581T-00-00DISC BRAKE ASSY$219.99$171.5910+ In-Stock
2B7R-2517G-00-00ROTOR, SENSOR$39.99$32.79Usually ships in 7-10 business days
3B7R-2516A-00-00DAMPER$9.49$7.409 In-Stock
490151-06079-00

(replaces part #
90151-06051-00)

SCREW, COUNTERSUNK$3.45$2.9710+ In-Stock
5B11-2580T-01-00

(replaces part #
B11-2580T-00-00)

CALIPER ASSY (LEFT)$415.99$324.479 In-Stock
65XC-25802-00-00PISTON ASSY, CALIPER$103.99$81.113 In-Stock
75KM-25803-10-00CALIPER SEAL KIT$22.99$17.935 In-Stock
85DH-25919-00-00SUPPORT, PAD$22.99$17.9310+ In-Stock
936Y-W0048-00-00

(replaces part #
1UY-25824-51-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
1036Y-W0048-00-00

(replaces part #
1UY-25825-51-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
11B29-25805-01-00

(replaces part #
B29-25805-00-00)

BRAKE PAD KIT$48.99$42.2110+ In-Stock
AFTERMARKET ALTERNATIVE
$29.99$19.9910+ In-Stock
125DH-25933-00-00PIN, PAD$24.99$19.4910+ In-Stock
135DH-25916-00-00PLUG$10.99$8.5710+ In-Stock
143SP-25926-51-00BOLT$14.49$11.3010+ In-Stock
153SP-25914-51-00PIN, SLIDE$4.95$4.2610+ In-Stock
163JD-25917-00-00BOOT, CALIPER$9.49$7.4010+ In-Stock
171UY-25937-51-00BOOT 2$15.49$12.0810+ In-Stock
185XC-25849-G0-00RETAINER, CALIPER$15.49$12.0810+ In-Stock
1990105-08137-00BOLT, FLANGE$6.49$5.0610+ In-Stock
