2020 Yamaha YZ250F Electrical 2 OEM Parts Diagram

Submodel YZ250F - YZ250FLL - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 2

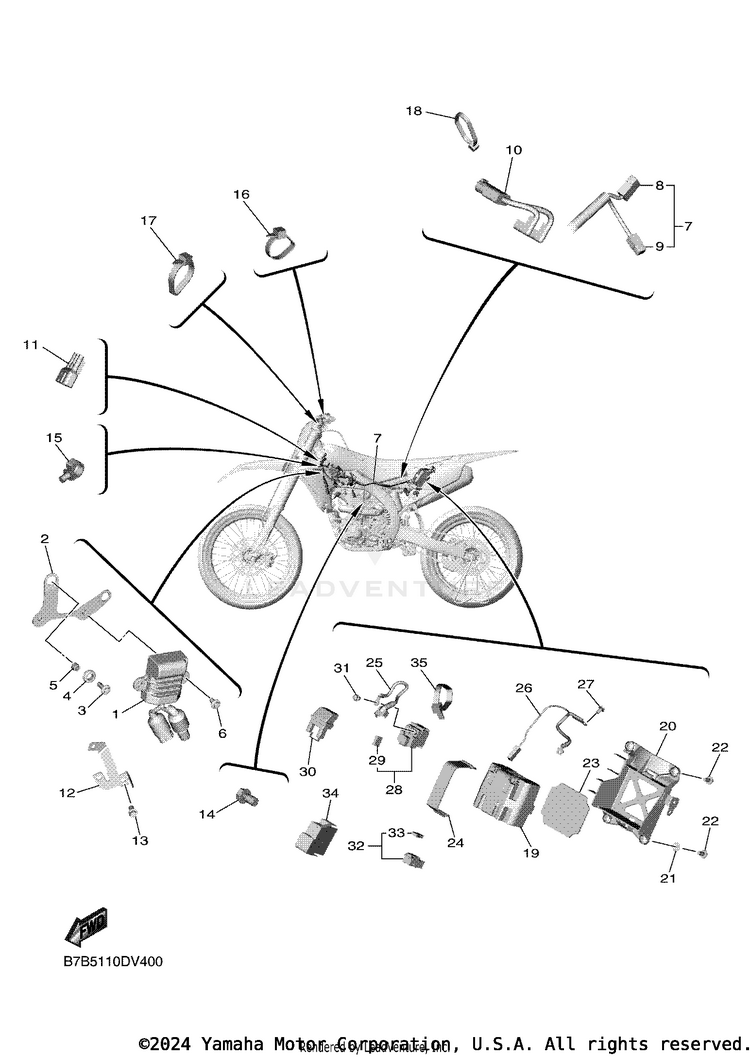

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B7B-81960-00-00RECTIFIER & REGULATO$169.99$132.595 In-Stock
2B7B-21287-00-00BRACKET, REGULATOR$14.49$11.88Usually ships in 7-10 business days
390105-06219-00BOLT, FLANGE$2.30$1.985 In-Stock
490480-13025-00GROMMET$4.00$3.4410+ In-Stock
590387-07573-00

(replaces part #
90387-066J9-00)

COLLAR$10.49$8.186 In-Stock
690105-06064-00BOLT, FLANGE$3.45$2.9710+ In-Stock
7B7B-82590-10-00WIRE HARNESS ASSY$407.99$318.232 In-Stock
84WA-81980-00-00DIODE ASSY$32.99$25.739 In-Stock
93WP-81980-00-00DIODE ASSY$24.99$19.498 In-Stock
101SL-82309-00-00WIRE, SUB LEAD$34.99$27.294 In-Stock
1133D-82378-00-00CONNECTOR$18.99$14.812 In-Stock
12B7B-82388-00-00PLATE$9.49$8.54Usually ships in 7-10 business days
1390105-06110-00BOLT, FLANGE$9.49$7.4010+ In-Stock
1495E32-06010-00BOLT, FLANGE DEEP RE-$1.0110+ In-Stock
1590464-17003-00CLAMP$3.90$3.355 In-Stock
1690464-13077-00CLAMP | (95.0X7.0)$9.49$7.4010+ In-Stock
1790464-15195-00

(replaces part #
90464-13073-00)

CLAMP | (125.0x7.0)$4.41$3.7910+ In-Stock
181UA-82591-00-00BAND$5.49$4.2810+ In-Stock
19BR9-82100-48-00

(replaces part #
BR9-82100-49-00)

BATTERY ASSY$698.99$574.855 In-Stock
20BR9-82128-00-00BRACKET, BATTERY$66.99$52.25Usually ships in 7-10 business days
2190201-06088-00WASHER, PLATE$9.49$7.407 In-Stock
2290119-06133-00BOLT, WITH WASHER$6.49$5.0610+ In-Stock
23BR9-82176-00-00DAMPER$6.49$5.84Usually ships in 7-10 business days
248CY-82131-00-00BAND, BATTERY$14.49$11.3010+ In-Stock
25BR9-82115-00-00WIRE, PLUS LEAD$31.99$24.954 In-Stock
26BR9-82116-00-00WIRE, MINUS LEAD$25.99$20.271 In-Stock
2790105-06064-00BOLT, FLANGE$3.45$2.9710+ In-Stock
282GB-81940-00-00STARTER RELAY ASSY (RC19-102B)$56.99$44.4510+ In-Stock
2936Y-82151-00-00FUSE (15A-BLUE)$6.49$5.0610+ In-Stock
305SL-82119-10-00COVER, LEAD WIRE$5.49$4.2810+ In-Stock
3195022-06008-00BOLT, FLANGE$9.49$7.4010+ In-Stock
321ST-81950-00-00RELAY ASSY (1ST-00)$19.99$15.5910+ In-Stock
335JJ-81952-00-00HOLDER, RELAY$10.99$8.574 In-Stock
34B7R-8246B-00-00COVER 1$24.99$19.492 In-Stock
3590465-10098-00CLAMP$2.80$2.417 In-Stock
